(Please refer “CPU Support List” for more information.)

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
• * ECC memory (ECC mode) support varies by CPU
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer “Memory Support List” for more information.)

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Maximum shared memory of 16 GB

• Realtek® ALC1220-VB codec
• * The back panel line out jack supports DSD audio.
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• Intel® Wi-Fi 6 AX200
• WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

Supporting PCIe 3.0 x4 mode

* The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

Supporting PCIe 3.0 x2 mode

* The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.

2 x PCI Express x1 slots

AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

support PCIe 3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10

• 2 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset:

• 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
• 2 x temperature sensor headers
• 1 x Thunderbolt™ add-in card connector
• 1 x Clear CMOS jumper
• ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

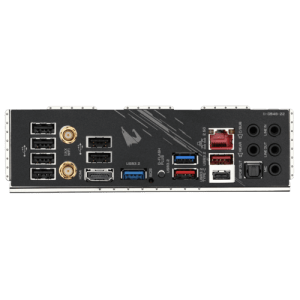

• 1 x HDMI port
• 2 x SMA antenna connectors (2T2R)
• 2 x USB 3.2 Gen 1 ports
• 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 6 x USB 2.0/1.1 ports
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

• Norton® Internet Security (OEM version)
• XSplit Gamecaster + Broadcaster (12 months license)
• Realtek® 8125 Gaming LAN Bandwidth Control Utility

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
