| العلامة التجارية | جيجابايت |
|---|---|

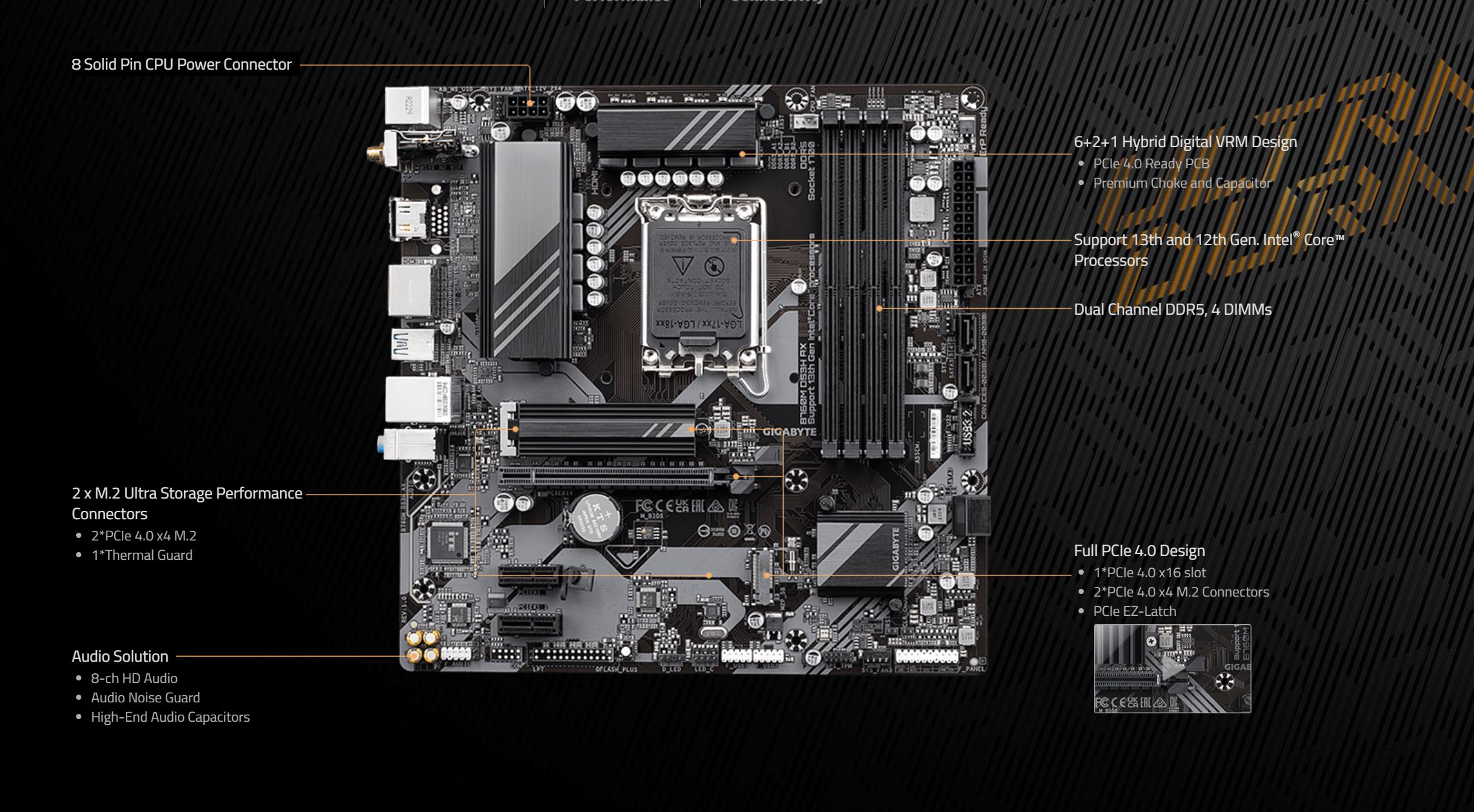

| Supports | Intel® Core™ 14th/ 13th /12th processors |

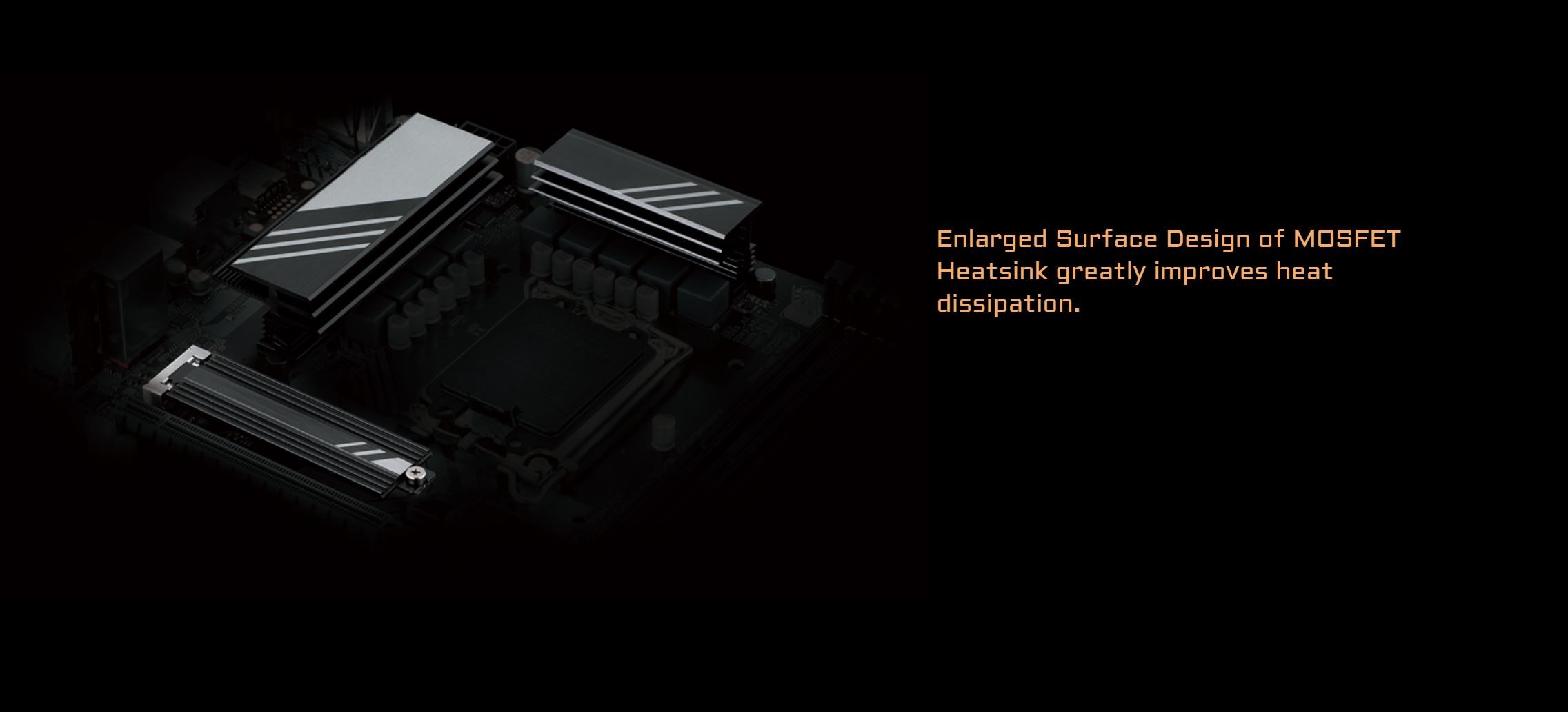

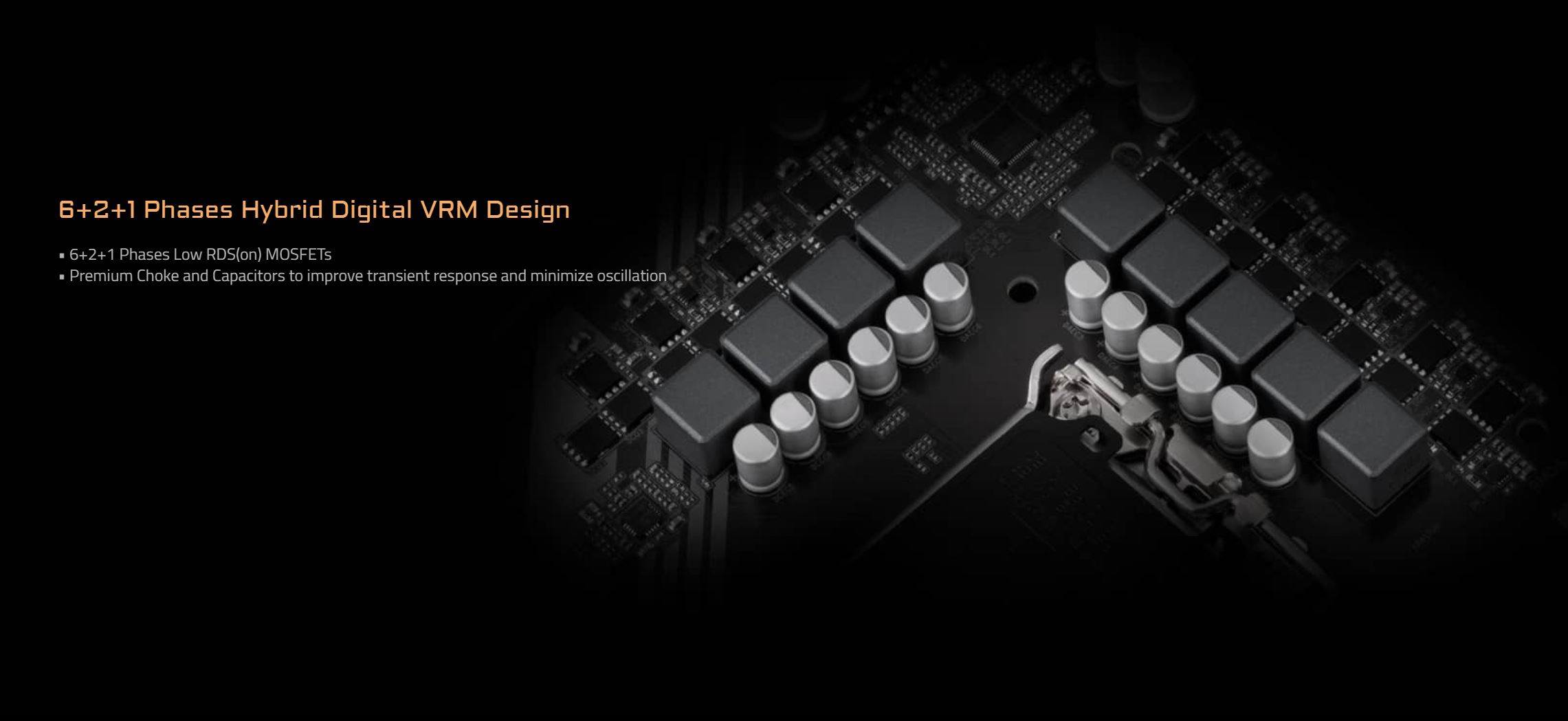

| Performance | Hybrid 6+2+1 Phases Digital VRM Solution |
| Dual Channel DDR5 | 4*DIMMs XMP Memory Module Support |
| Storage | 2*PCIe 4.0 x4 M.2 Connectors |
| M.2 Thermal Guard | M.2 SSD Performance |

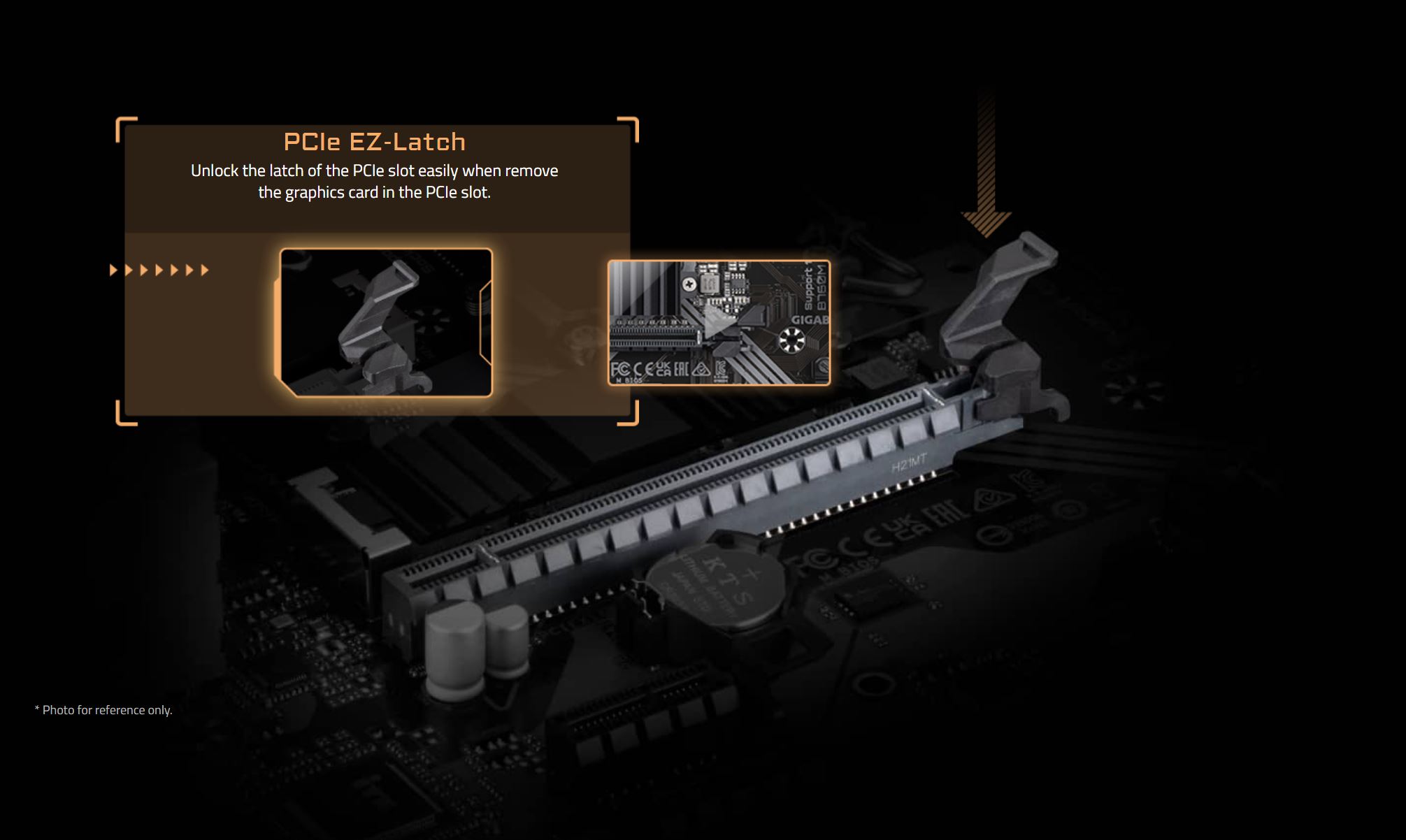

| EZ-Latch | PCIe 4.0×16 Slot with Quick Release Design |
| Networks | 2.5GbE LAN & Wi-Fi 6E 802.11ax |
| Smart Fan 6 | Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP |
| Q-Flash Plus | Update BIOS Without Installing the CPU, Memory and Graphics Card |
السعر الأصلي هو: 8,968 EGP.7,799 EGPالسعر الحالي هو: 7,799 EGP.
احصل على عرض أسعار لمؤسستك يشمل جميع المنتجات أو الخدمات او الحلول التي تحتاجها، وسيتم الرد عليك خلال 24 ساعة

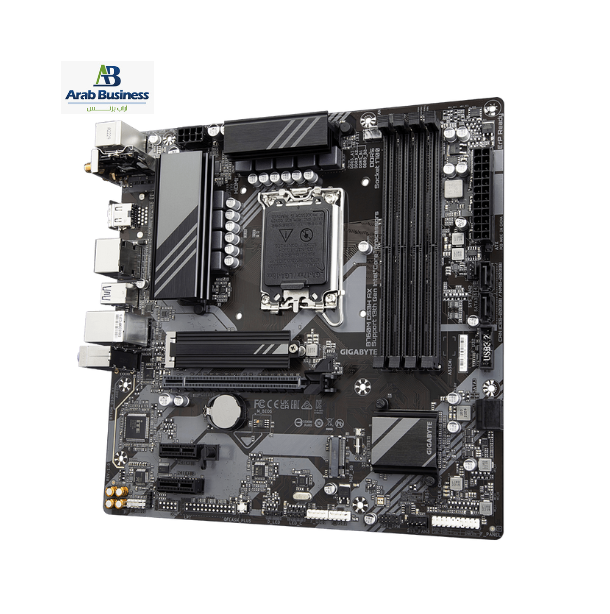

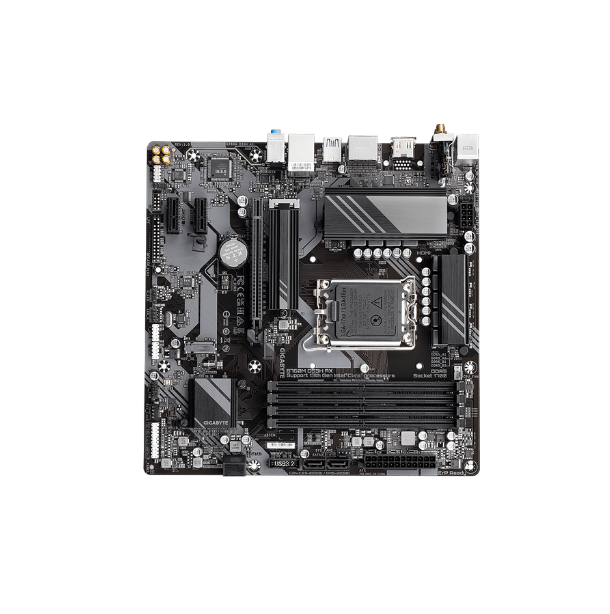

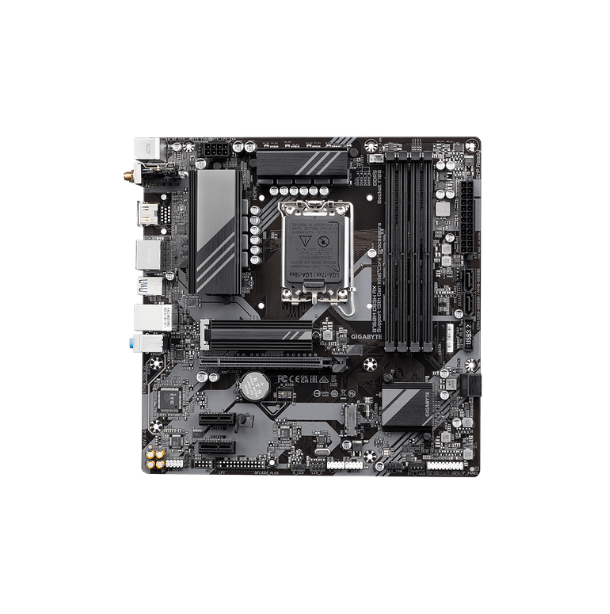

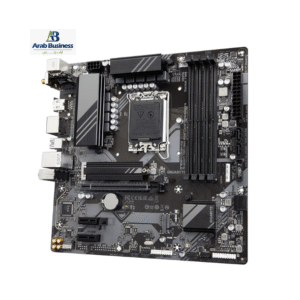

| CPU | Socket | LGA1700: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. |
| L3 Cache | Varies with CPU. | |
| Chipset | Chipset | Intel® B760 Express Chipset. |
| Memory | Supported Speeds | DDR5 7600(O.C.) / … / 4000 MT/s. |
| DIMM Sockets | 4 x DDR5 DIMM sockets, supporting up to 256 GB (64 GB single DIMM capacity). | |
| Architecture | Dual channel memory architecture. | |
| Supported Types | ECC Un-buffered DIMM (operates in non-ECC mode), non-ECC Un-buffered DIMM, and Extreme Memory Profile (XMP) modules. | |
| Onboard Graphics | Graphics Processor | Integrated Graphics Processor – Intel® HD Graphics support. |
| Video Ports | 1 x HDMI port (max. 4096×2160@60 Hz), 2 x DisplayPorts (max. 4096×2304@60 Hz). | |
| Multi-Display | Supports up to triple-display simultaneously. | |
| Audio | Audio Codec | Realtek® Audio CODEC. |
| Channels | 2/4/5.1/7.1-channel audio. | |
| Output | Supports S/PDIF Out. | |
| LAN | LAN Chip | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). |
| Wireless Communication | Wi-Fi 6E Modules | AMD Wi-Fi 6E RZ608 (PCB rev. 1.0), Intel® Wi-Fi 6E AX210 (PCB rev. 1.1), Intel® Wi-Fi 6E AX211 (PCB rev. 1.2), Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3). |
| Standards | WIFI a, b, g, n, ac, ax (2.4/5/6 GHz bands). | |
| Bluetooth | BT 5.2 or 5.3 (depending on module). | |
| Expansion Slots | CPU | 1 x PCI Express x16 slot (PCIe 4.0, runs at x16). |
| Chipset | 2 x PCI Express x1 slots (PCIe 3.0, runs at x1). | |
| Storage Interface | CPU | 1 x M.2 connector (PCIe 4.0 x4/x2 SSD support). |
| Chipset | 1 x M.2 connector (PCIe 4.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors. | |
| RAID Support | RAID 0, RAID 1, RAID 5, and RAID 10 for SATA devices. | |
| USB | Back Panel | 1 x USB Type-C® (USB 3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 ports. |
| Internal | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers. | |
| Internal I/O Connectors | Power | 1 x 24-pin ATX main power, 1 x 8-pin ATX 12V power. |
| Fans | 1 x CPU fan header, 3 x system fan headers. | |
| LEDs | 1 x addressable LED strip header, 1 x RGB LED strip header. | |
| Storage | 2 x M.2 connectors, 4 x SATA 6Gb/s connectors. | |
| Other | Front panel header, front panel audio header, TPM header, S/PDIF Out header, Q-Flash Plus button, reset jumper, Clear CMOS jumper. | |

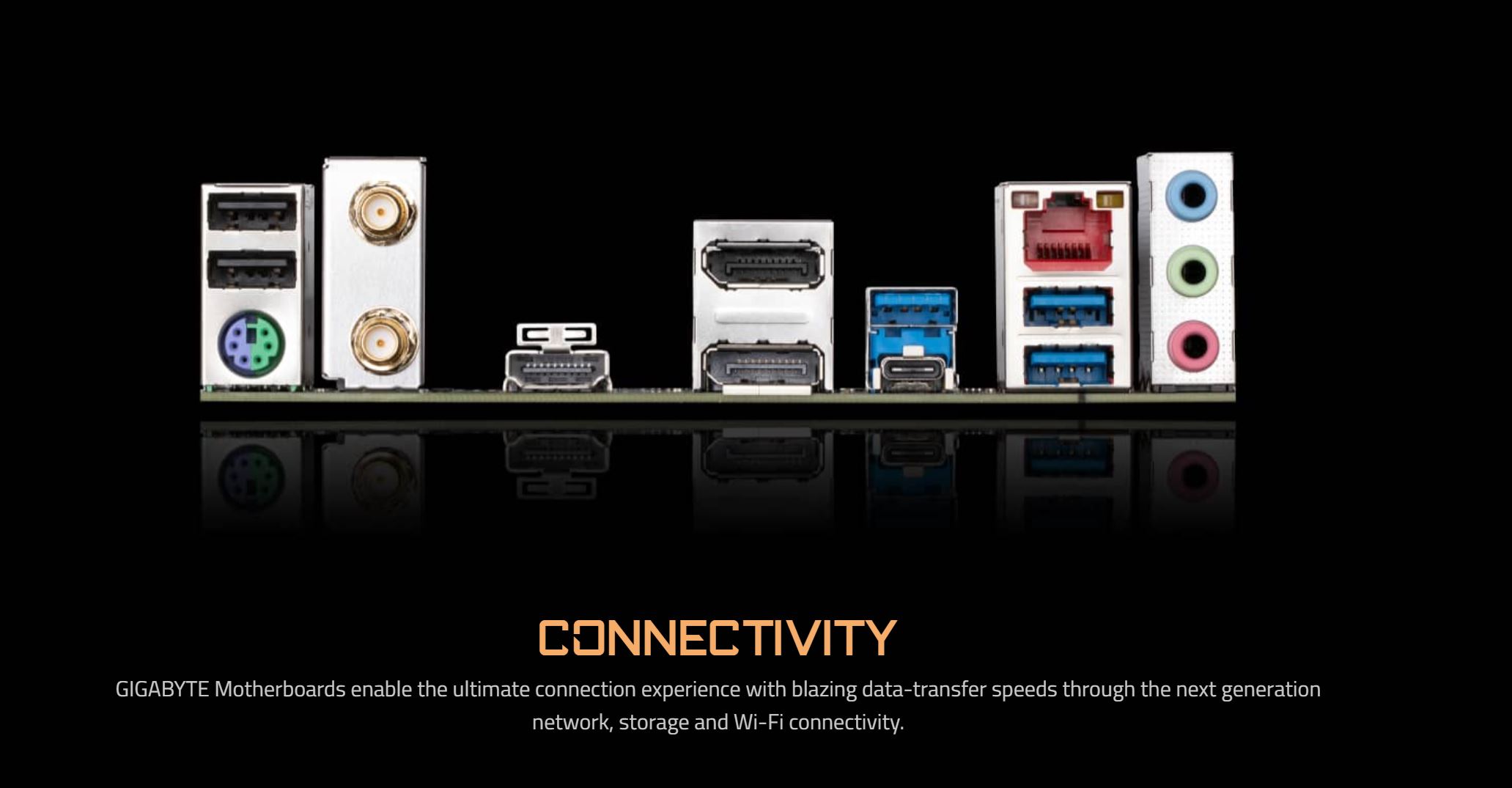

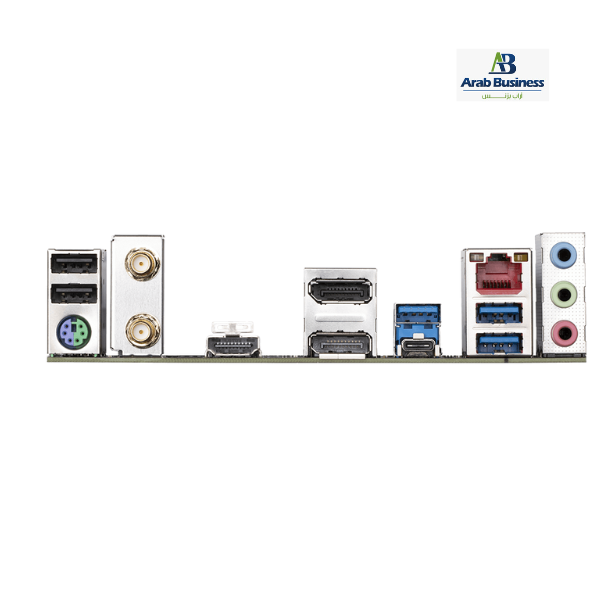

| Back Panel Connectors | Ports | USB, PS/2, SMA antenna, HDMI, DisplayPort, RJ-45, Audio. |
| BIOS and Features | BIOS | 1 x 128 Mbit flash, licensed AMI UEFI BIOS. |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus. | |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software. | |
| Operating System | OS Support | Windows 11 64-bit, Windows 10 64-bit. |
| Form Factor | Size | Micro ATX Form Factor (24.4cm x 24.4cm). |
| العلامة التجارية | جيجابايت |
|---|---|
| Supports | Intel® Core™ 14th/ 13th /12th processors |
| Performance | Hybrid 6+2+1 Phases Digital VRM Solution |
| Dual Channel DDR5 | 4*DIMMs XMP Memory Module Support |
| Storage | 2*PCIe 4.0 x4 M.2 Connectors |
| M.2 Thermal Guard | M.2 SSD Performance |
| EZ-Latch | PCIe 4.0×16 Slot with Quick Release Design |
| Networks | 2.5GbE LAN & Wi-Fi 6E 802.11ax |
| Smart Fan 6 | Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP |
| Q-Flash Plus | Update BIOS Without Installing the CPU, Memory and Graphics Card |
