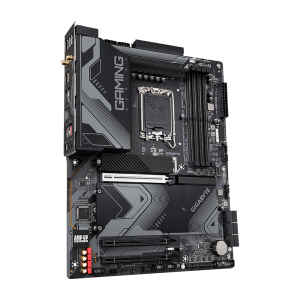

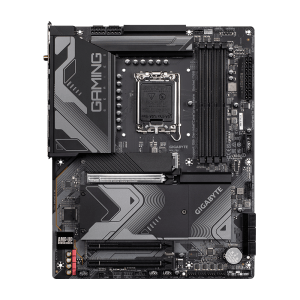

Gigabyte Z790 Gaming X AX DDR5 Motherboard

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Twin 16*+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
  • 8+8 phases parallel power design
التوفر

غير متوفر في المخزون

العلامة التجارية

Gigabyte

السعر الأصلي هو: 15,456 EGP.السعر الحالي هو: 13,799 EGP.

Cash. السعر الأصلي هو: 15,456 EGP.السعر الحالي هو: 13,799 EGP.
Inst. EGP 1288

غير متوفر في المخزون

You can pay in installments through ( عروض التقسيط )

Approximate installment amount – مبلغ القسط التقريبي

أحصل علي عرض سعر لشركتك

احصل على عرض أسعار لمؤسستك يشمل جميع المنتجات أو الخدمات او الحلول التي تحتاجها، وسيتم الرد عليك خلال 24 ساعة

 أضغط هنا

الوصف

Gigabyte Z790 Gaming X AX DDR5 Motherboard

Gigabyte Z790 Gaming X AX DDR5 Motherboard

Gigabyte Z790 Gaming X AX DDR5 MotherboardSPECIFICATIONS:

CPU
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  2. L3 cache varies with CPU
Chipset
Intel® Z790 Express Chipset
Memory
  1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
    * Support for DisplayPort 1.2 version and HDCP 2.3
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out

LAN

+Wireless Communication module
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel® Wi-Fi 6E AX211 (PCB rev. 1.1)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.2)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots
  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
  2. 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface +USB
  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
    * Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices



USB

Chipset:

  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 4 x M.2 Socket 3 connectors
  10. 6 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 2 x Thunderbolt™ add-in card connectors
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x Q-Flash Plus button
  19. 1 x reset button
  20. 1 x reset jumper
  21. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 4 x USB 2.0/1.1 ports
  2. 2 x SMA antenna connectors (2T2R)
  3. 2 x USB 3.2 Gen 2 Type-A ports (red)
  4. 1 x DisplayPort
  5. 1 x HDMI 2.0 port
  6. 3 x USB 3.2 Gen 1 ports
  7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 2 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  4. Support for Smart Backup
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
