MOTHERBOARD PMB G41 The LGA775 socket on Motherboard supports Intel CPUs from 1.8 to 3.8 GHz Front-Side Bus frequencies ranging from 533 MHz to 1333 MHz, Value for money as the G41 chipset capable to handle embedded computing applications needing HD video playback and 3D graphics.

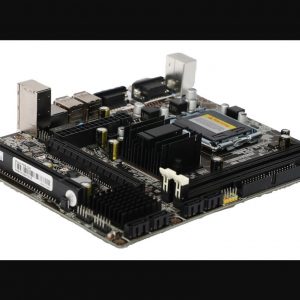

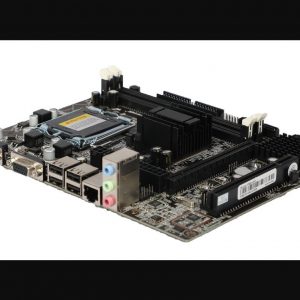

MOTHERBOARD PMB G41
1 Year Manufacturer Warranty, All Combos tested before dispatch.
MOTHERBOARD PMB G41 Specifications
CPU:
- Supports LGA775 CPU
- FSB 533/800/1066/1333 MHZ CPU
Chipset:
- Intel 82G41 + 82801GB
- Supports GMAX 4500 Graphics
MOTHERBOARD PMB G41 Memory:
- 2*240-pin DDR III SDRAM Slots
- Memory up to 8GB
- Supports dual-channel DDRIII 800MHz/ 1066MHz Memory
BIOS: AMI BIOS
MOTHERBOARD PMB I/O Interface:
- PS/2 Keyboard Port, 1 x PS/2 Mouse Port, 1 x COM
- RJ45, 1 x 3 in 1 Audio Port(Line-in, Line out, Mic-in)
DRIVERS:
Download PMB-G41 Drivers
Onboard Interface:
- 1 x 24-pin ATX Power Connector, 1 x 4-pin ATX 12 V Power Connector
- 2 x USB Connectors, can support 4 x USB 2.0
- 1 x F_Audio Connector, 1 x F_Panel Connector, 1 x Speaker_Connector
- 2 x FAN connectors, 4 x Serial ATA connection port, 1 x 40-pin IDE port.
Integrated Sound:
- With 6-channel HD Audio codec Onboard
- Provides front audio interface; provides front stereo mic interface
Integrated LAN: 10/100 Mbps LAN Onboard
Expansion Slot: 1 x PCI Express x 16 Slot, 1 x PCI Slots, conformed to PCI v 2.3 specification
Dimension:
Micro-ATX architecture (172*235mm)
For more information, click here
