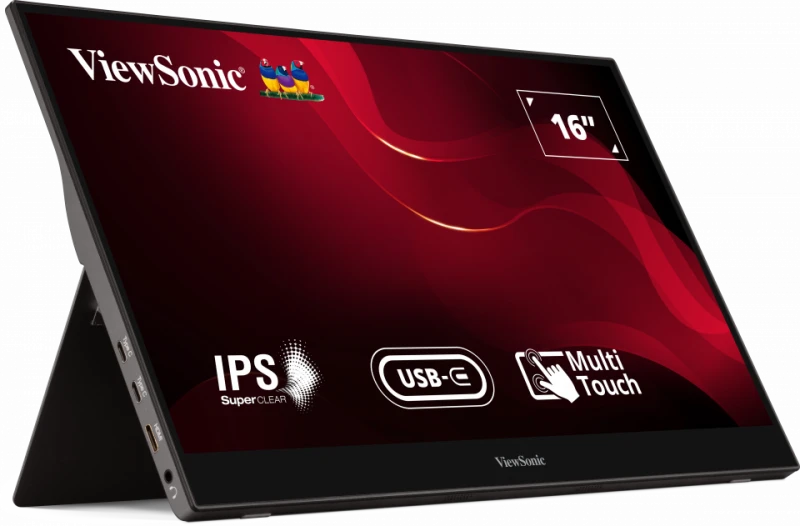

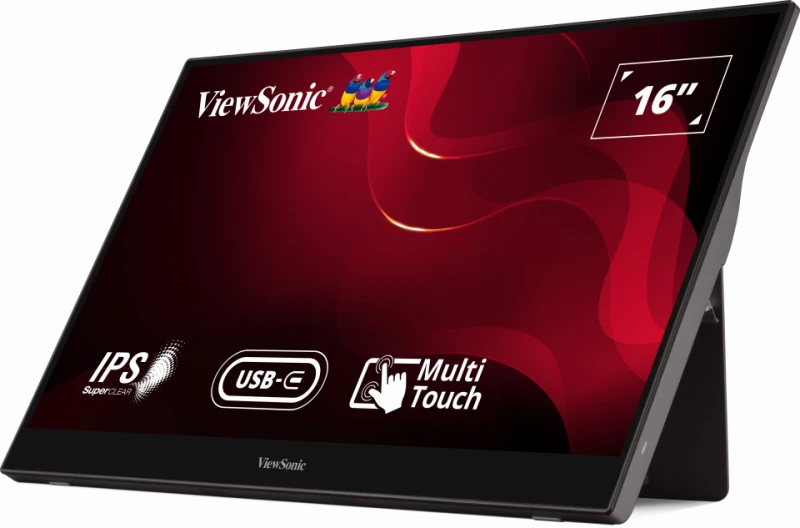

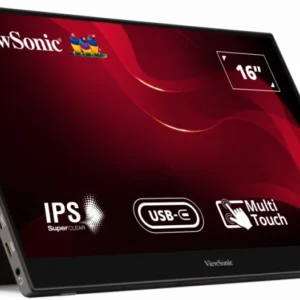

MONITOR VIEWSONIC TD1655 16” USB-C Multi-Touch Portable Monitor

OVERVIEW

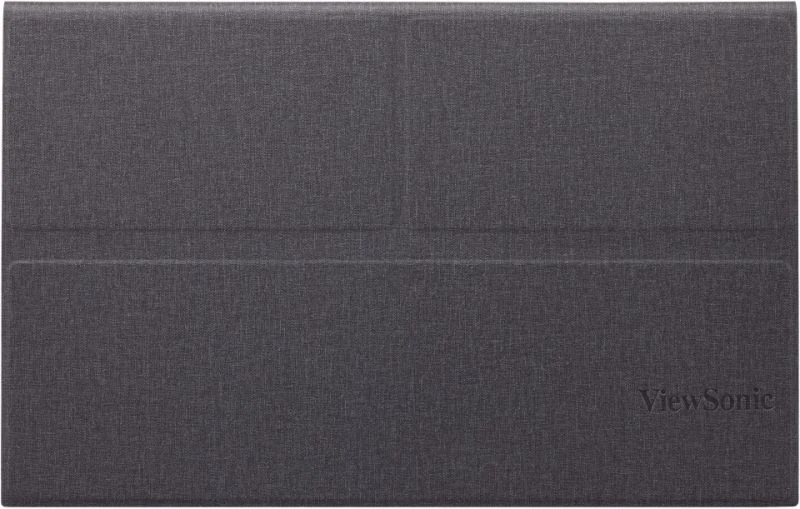

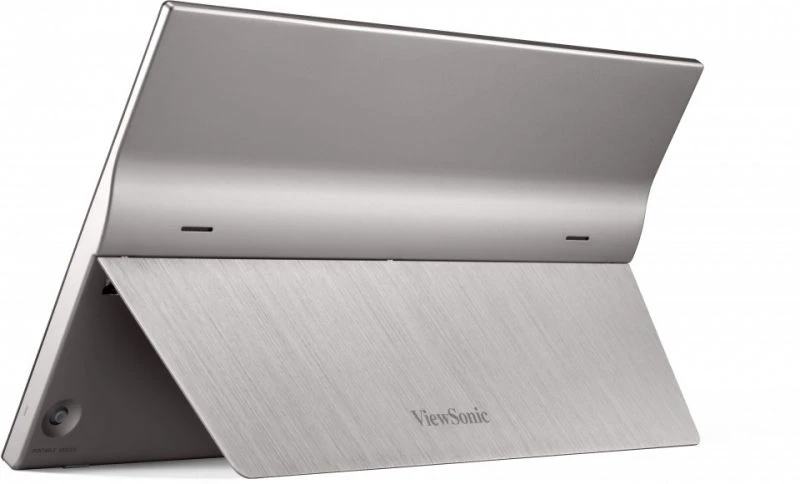

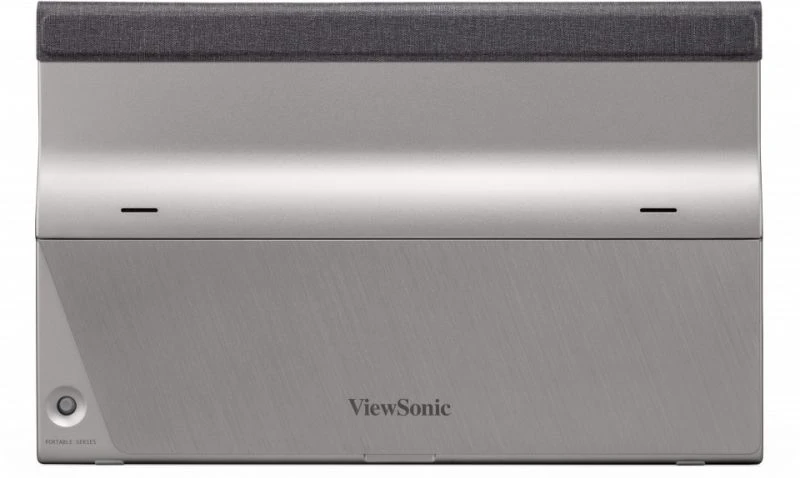

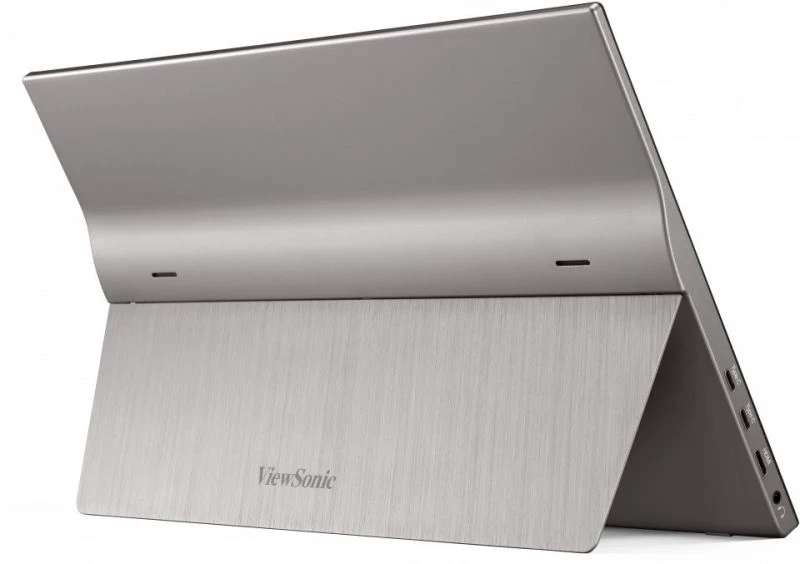

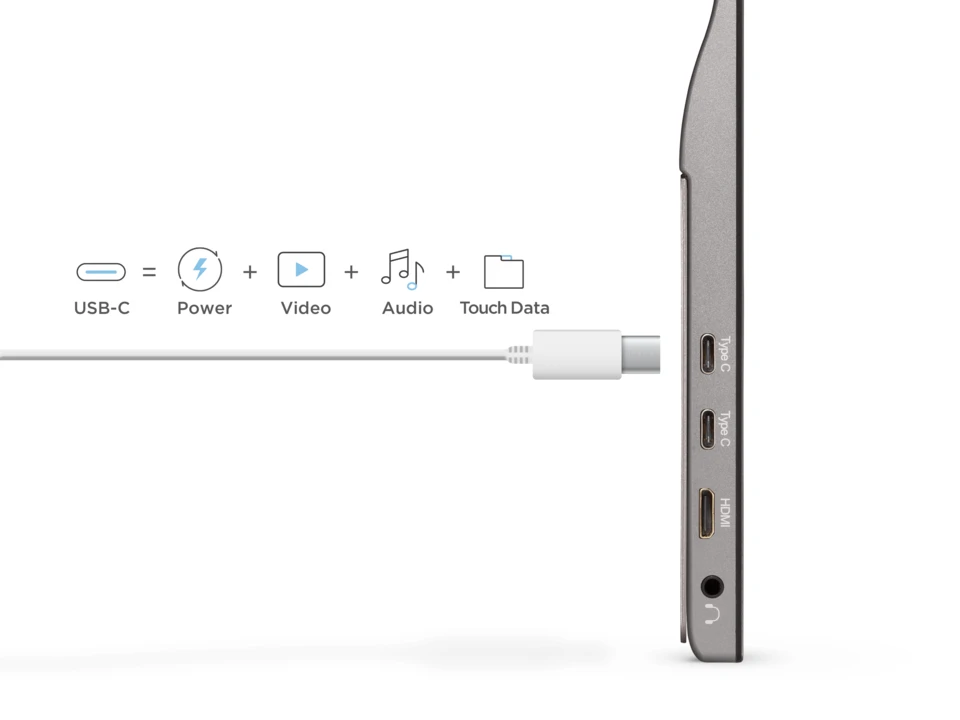

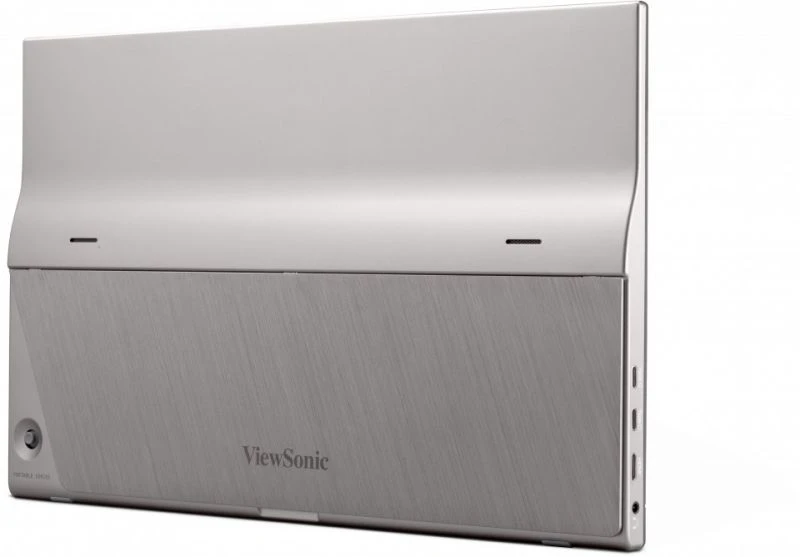

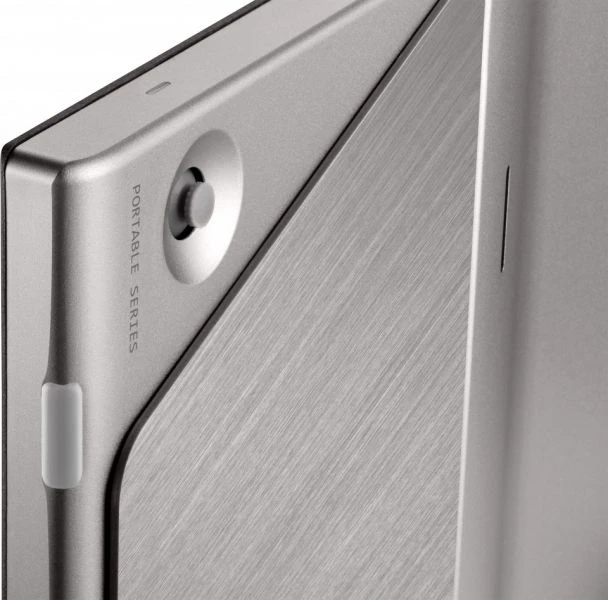

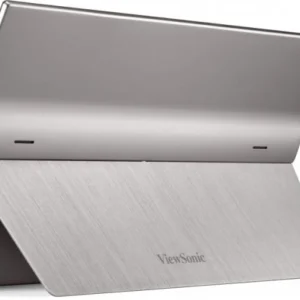

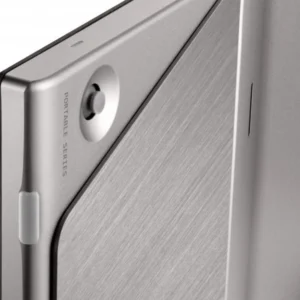

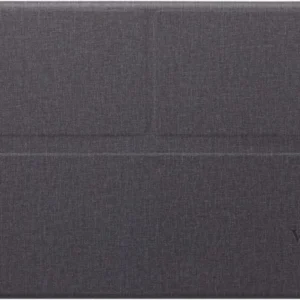

The ViewSonic TD1655 is a portable 16” Full HD monitor with 10-point multitouch capability designed for dual-screen productivity beyond the office. Extend your display from phone, tablet, or laptop to a larger screen for seamless multitasking, personalized one-on-one presentation, or relaxed entertainment. The two universal USB-C connectors provide a one-cable solution for multimedia transfer and power charging. Tailor your work setup to your preferences with adjustable viewing angles and the option for both landscape and portrait display layouts. With a detachable magnetic anti-slip cover, metal case, and foldable aluminum stand designed for convenient mobility, enhance your mobile workstation anywhere, anytime.

Take Productivity with You

Stay productive wherever you are with an expanded screen real estate from your laptop, tablet or phone using the TD1655 portable monitor, perfect for multitasking and meetings on-the-go.

Extend Mobile Devices’ Display to a Larger 15.6” Viewable Screen

Effortless Portability

Designed to be thin and lightweight, this compact monitor can be easily carried around wherever you go without adding extra burden.

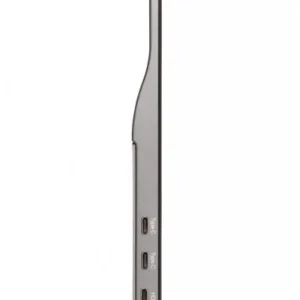

Thin & Lightweight, 6.1 mm, 0.94 KG

Advanced Touch Capabilities and Screen Performance

Experience intuitive screen control with an advanced capacitive touchscreen. Easily tap, pinch, and swipe on a responsive display while enjoying exceptional screen performance and stunning images.

Note:
1. Touch feedback control not applicable to iOS & iPadOS devices.
2. Download vTouch software to enable touch feedback on MacOS.
3. Ensure your mobile device’s connectivity supports USB touch signal transmission for touch feedback control on our monitor.
4. Do not remove the plastic disc on the pen tip; it’s crucial for touch accuracy functionality.

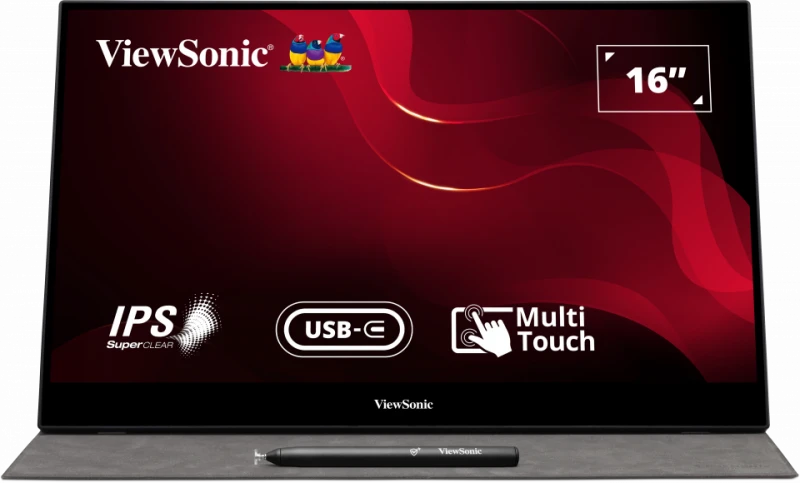

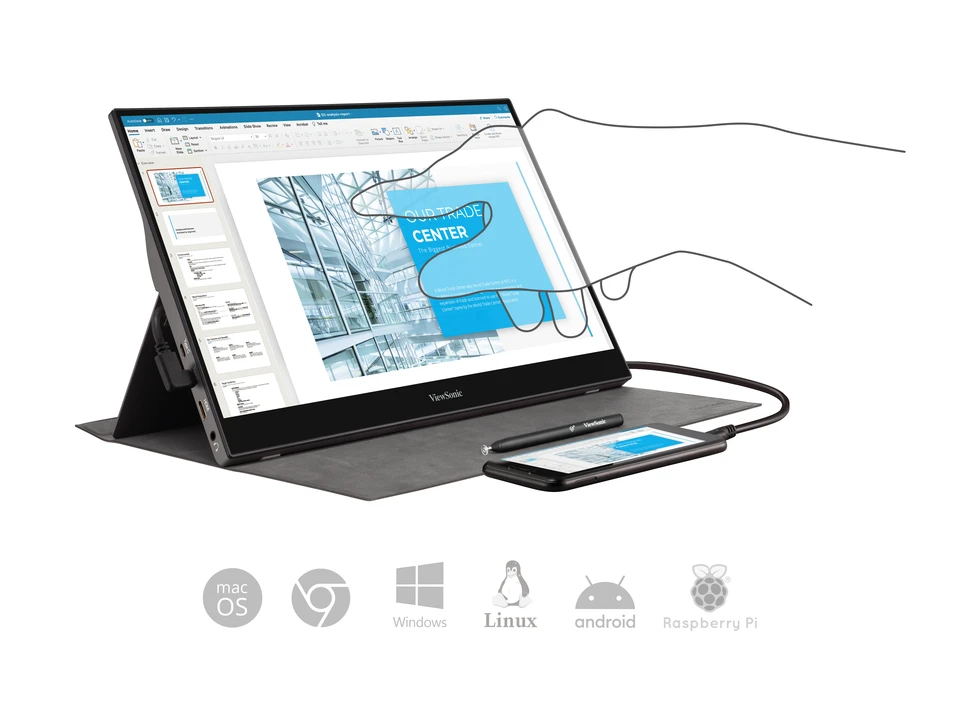

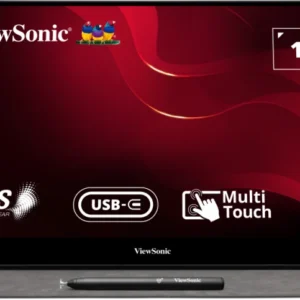

Touch Control with Fingers or Stylus

SPECIFICATIONS

• Display
  Display Size (in.): 16
  Viewable Area (in.): 15.6
  Panel Type: IPS Technology
  Resolution: 1920 x 1080
  Resolution Type: FHD (Full HD)
  Static Contrast Ratio: 800:1 (typ)
  Dynamic Contrast Ratio: 50M:1
  Light Source: LED
  Brightness: 250 cd/m² (typ)
  Colors: 262K
  Color Space Support: 6 bit true
  Aspect Ratio: 16:9
  Response Time (Typical GTG): 6.5ms
  Response Time (GTG w/OD): 6.599ms
  Response Time (Typical Tr+Tf): 30ms
  Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
  Backlight Life (Hours): 15000 Hrs (Min)
  Curvature: Flat
  Refresh Rate (Hz): 60
  Low Blue Light: Software solution
  Color Gamut: NTSC: 45% size (Typ)
  sRGB: 64% size (Typ)
  Pixel Size: 0.179 mm (H) x 0.179 mm (V)
  Touch Screen: Projected Capacitive, 10-point multi-touch
  Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H)
  Cover Glass Thickness: 0.8mm
• Compatibility
  PC Resolution (max): 1920×1080
  Mac® Resolution (max): 1920×1080
  PC Operating System: Windows 10/11 certified; macOS tested
  Mac® Resolution (min): 1920×1080

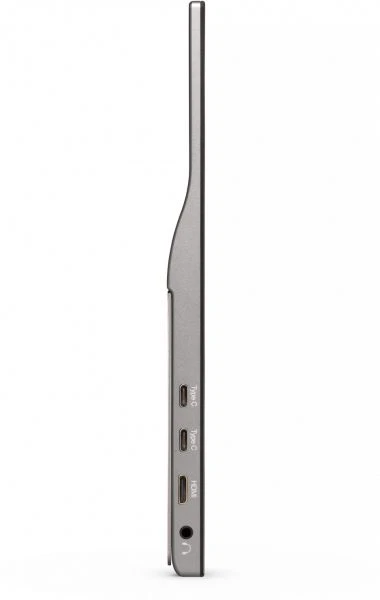

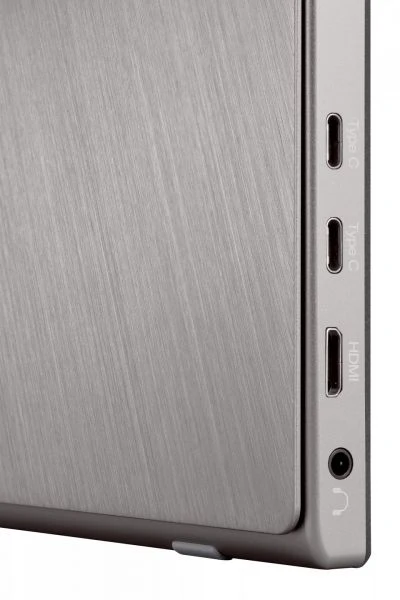

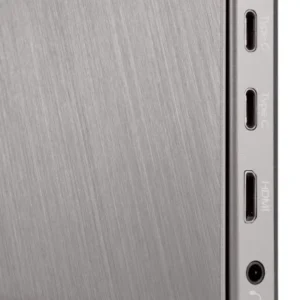

• Connector
  USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
  3.5mm Audio Out: 1
  Mini HDMI: 1
  Power in: USB Type C (with video & data)

• Audio
  Internal Speakers: 0.8Watts x2
• Power
  Eco Mode (Conserve): 6W
  Eco Mode (optimized): 6.9W
  Consumption (typical): 8W
  Consumption (max): 8.3W
  Voltage: AC 100-240V
  Stand-by: 0.5W
  Power Supply: External Power Adaptor
• Controls
  Physical Controls: Up, Right, Down, Left, Power
  On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
• Operating Conditions
  Temperature: 32°F to 104°F (0°C to 40°C)
  Humidity (non-condensing): 20% to 90%
• Input Signal
  Frequency Horizontal: 15 ~ 82KHz
  Frequency Vertical: 50 ~ 75Hz
• Video Input
  Digital Sync: TMDS – mini HDMI (v1.4), Micro-Packet – Type C
• Ergonomics

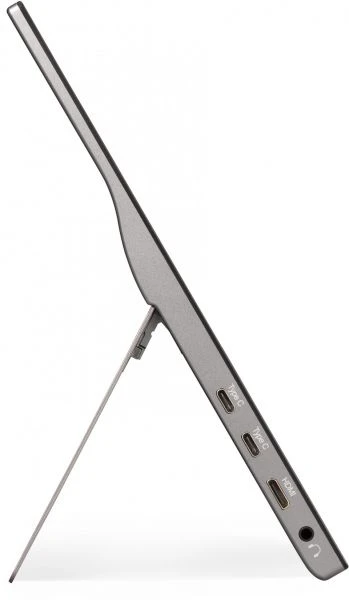

  Tilt (Forward/Back): 20º / 60º
• Weight (imperial)
  Net (lbs): 2.1
  Net Without Stand (lbs): 2.1
  Gross (lbs): 5.1
• Weight (metric)
  Net (kg): 0.96
  Net Without Stand (kg): 0.96
  Gross (kg): 2.3

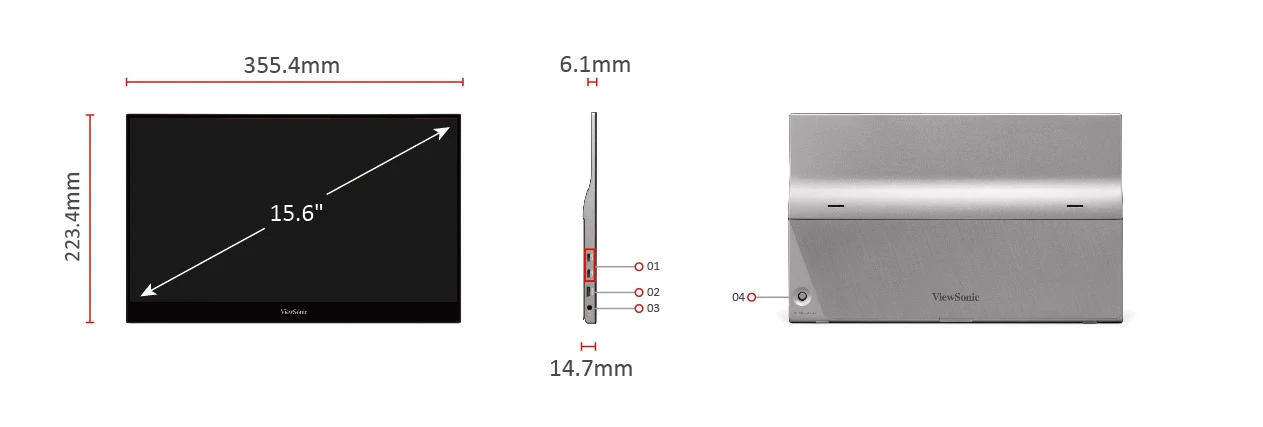

• Dimensions (imperial) (wxhxd)
  Packaging (in.): 17.3 x 11.3 x 3.5
  Physical (in.): 13.99 x 8.8 x 0.58
  Physical Without Stand (in.): 13.99 x 8.8 x 0.58
• Dimensions (metric) (wxhxd)
  Packaging (mm): 440 x 288 x 89
  Physical (mm): 355.46 x 223.44 x 14.7
  Physical Without Stand (mm): 355.46 x 223.44 x 14.7
• General
  Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE(Adaptor), BIS
  PACKAGE CONTENTS: TD1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protect cover x1, Clean cloth x1, Passive touch pen x1
  Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
  Warranty: *Warranty offered may differ from market to market
  Power Management: Energy Star standards, EPEAT
