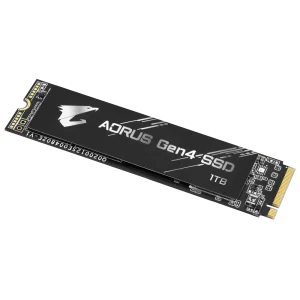

AORUS Gen4 SSD 1TB
- Form Factor: M.2 2280
- Interface: PCI-Express 4.0 x4, NVMe 1.3
- Total Capacity: 1000GB*
- Sequential Read Speed : up to 5000 MB/s**
- Sequential Write speed : up to 4400 MB/s**
- Wear Leveling, Over-Provision technologies
- TRIM & S.M.A.R.T supported
- Warranty: Limited 5-years
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.
|Interface||PCI-Express 4.0×4, NVMe 1.3|
|Form Factor||M.2 2280|
|NAND||3D TLC NAND Flash|
|External DDR Cache||DDR4 1GB|
|Sequential Read speed||Up to 5000 MB/s|
|Sequential Write speed||Up to 4400 MB/s|
|Random Read IOPS||up to 750k|
|Random Write IOPS||up to 700k|
|Dimension||80 x 22 x 2.3 mm|
|Mean time between failure (MTBF)||1.77 million hours|
|Power Consumption (Active)||Average: R : 6.6W; W : 6.4W|
|Power Consumption (Idle)||18.8mw|
|Temperature (Operating)||0°C to 70°C|
|Temperature (Storage)||-40°C to 85°C|
|Note||• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
