Description
| Part No | 90NB10W2-M00LF0 |
| Sales Model Name | TP3402VA-EG009W |
| EAN Code | 4711387842126 |
| UPC Code | 197105842120 |
| WEEE | 1.2 |
| BASE UNIT | VSNB10W2-BU1000 |

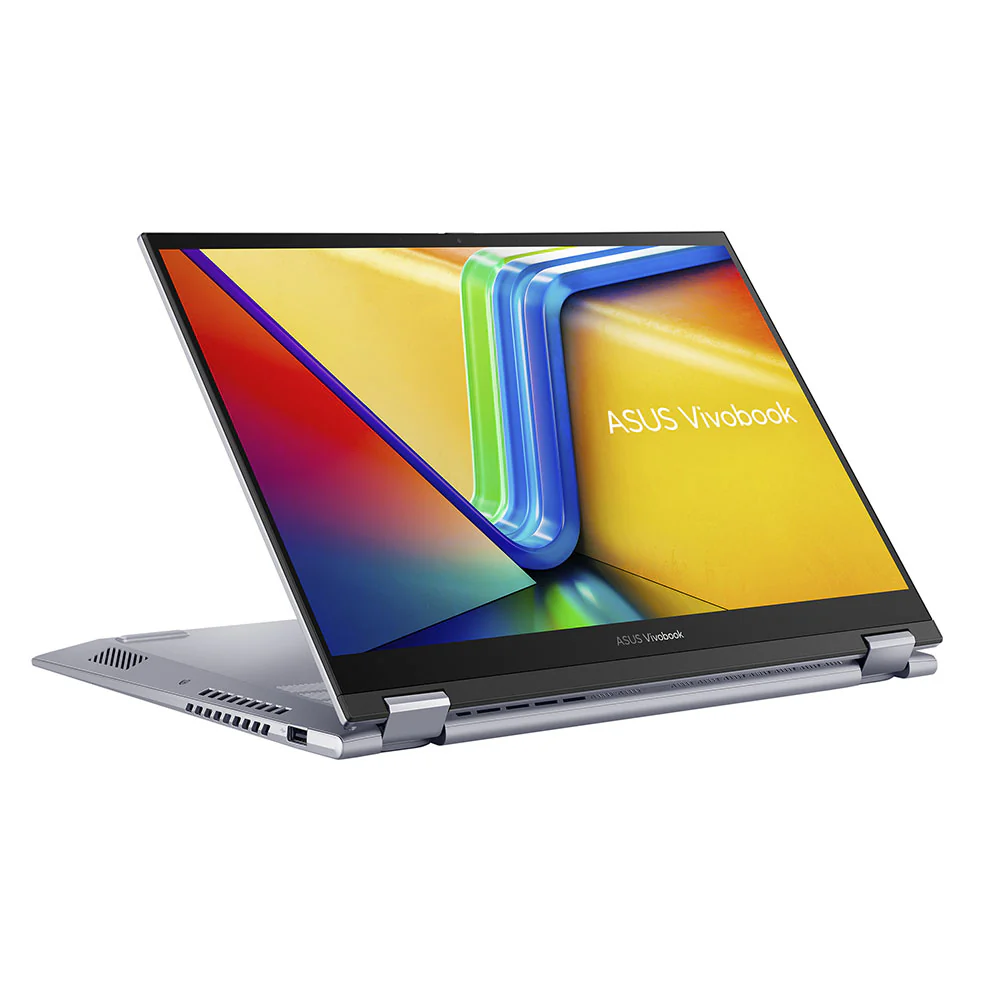

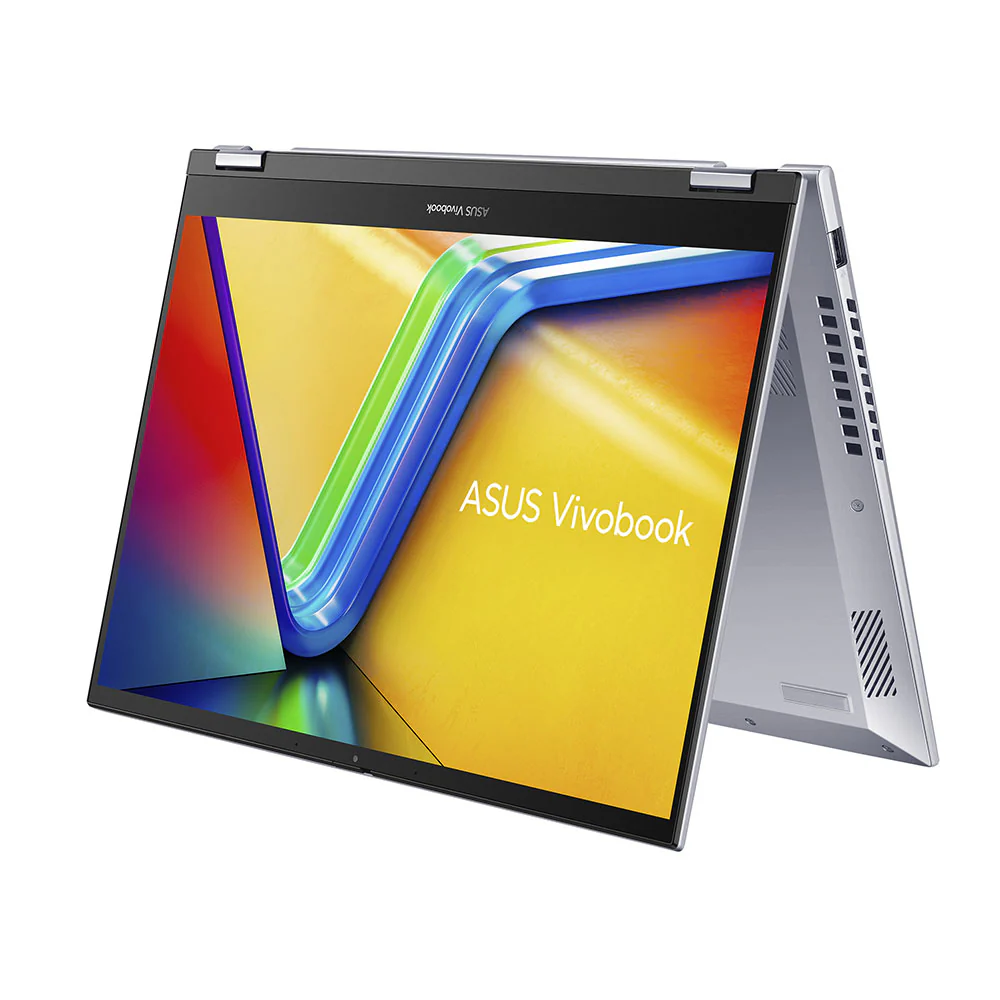

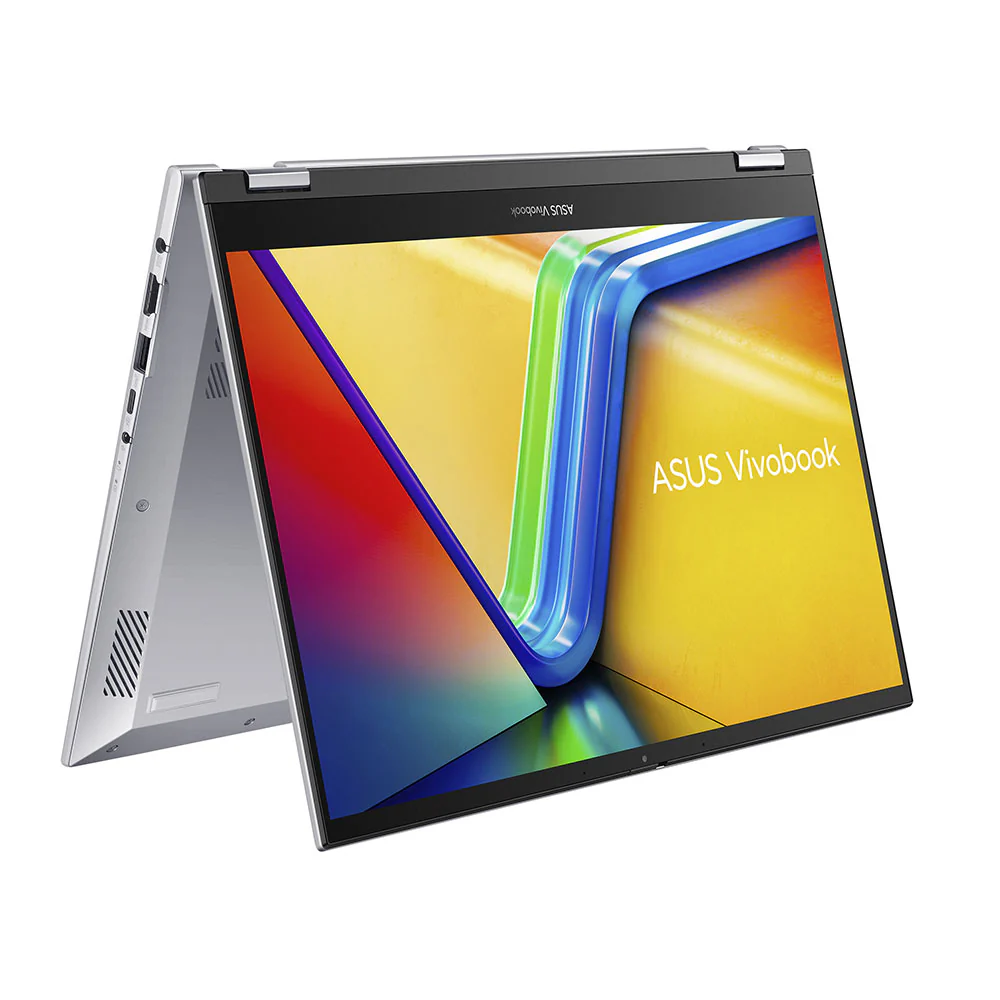

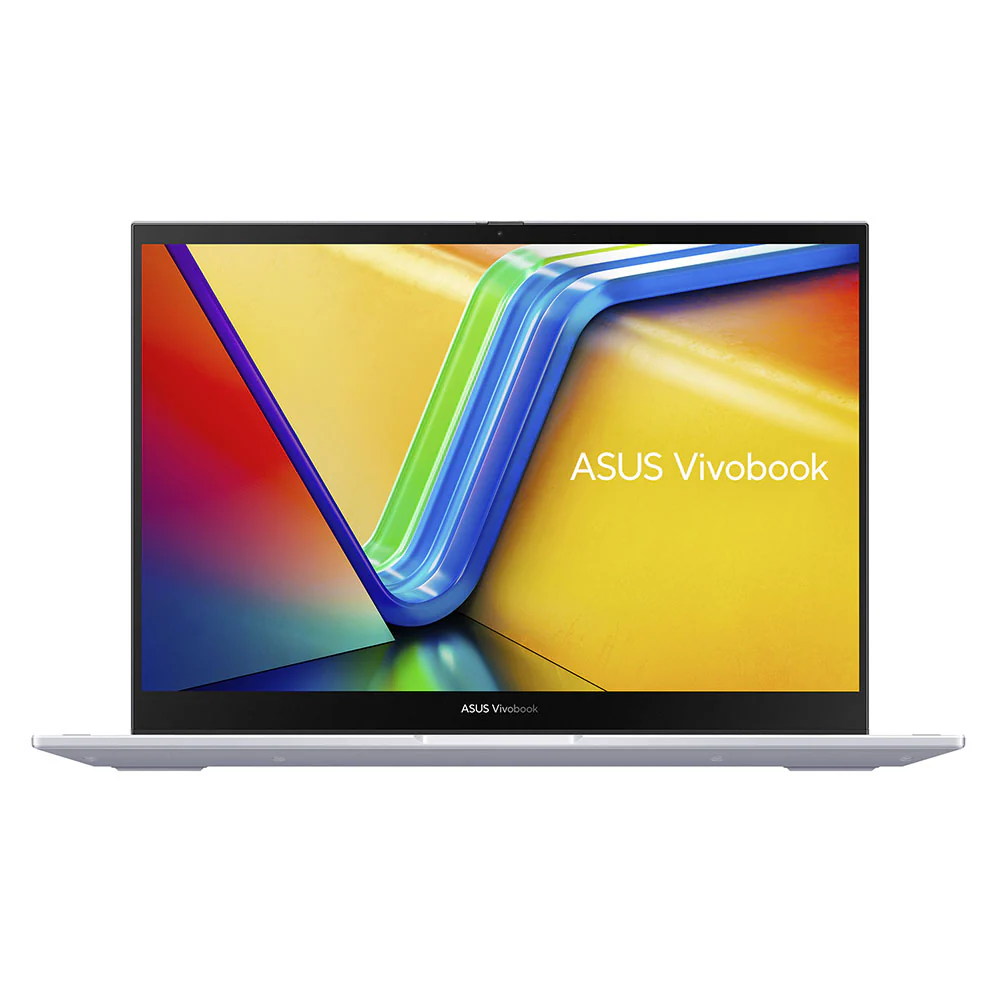

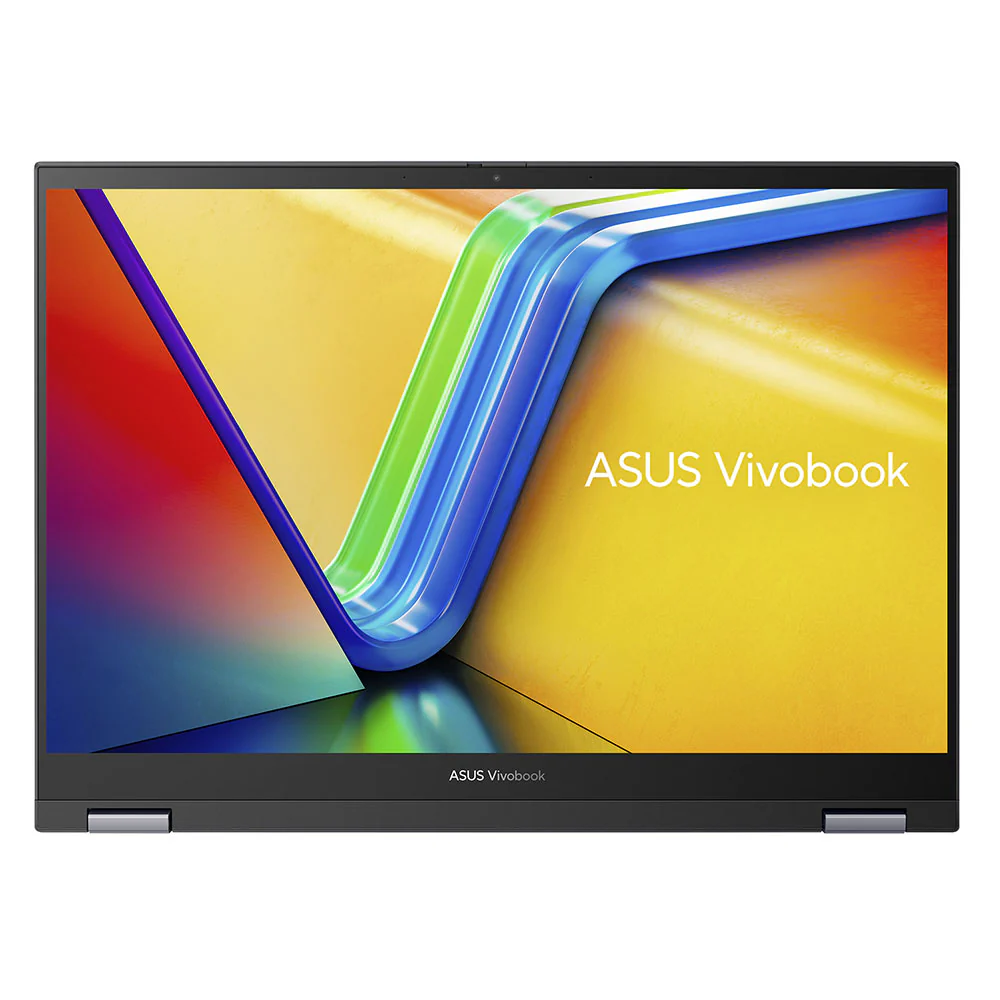

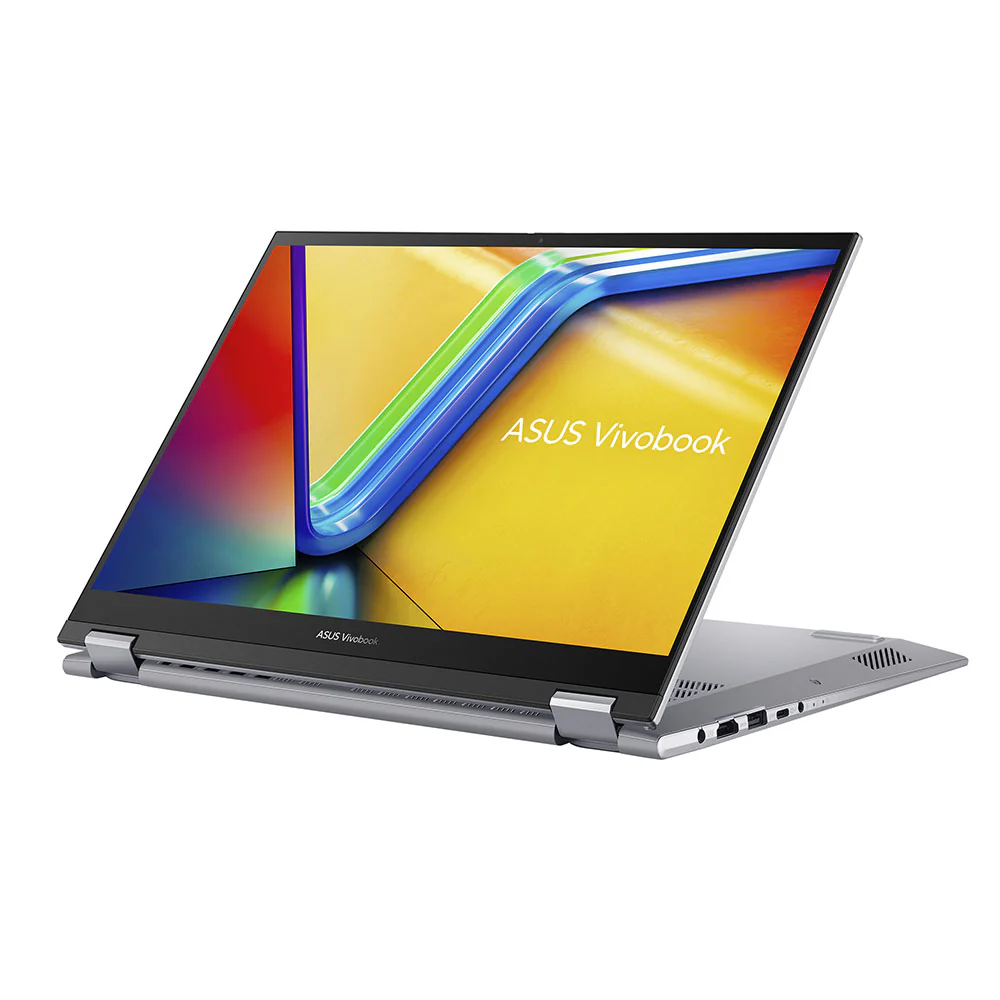

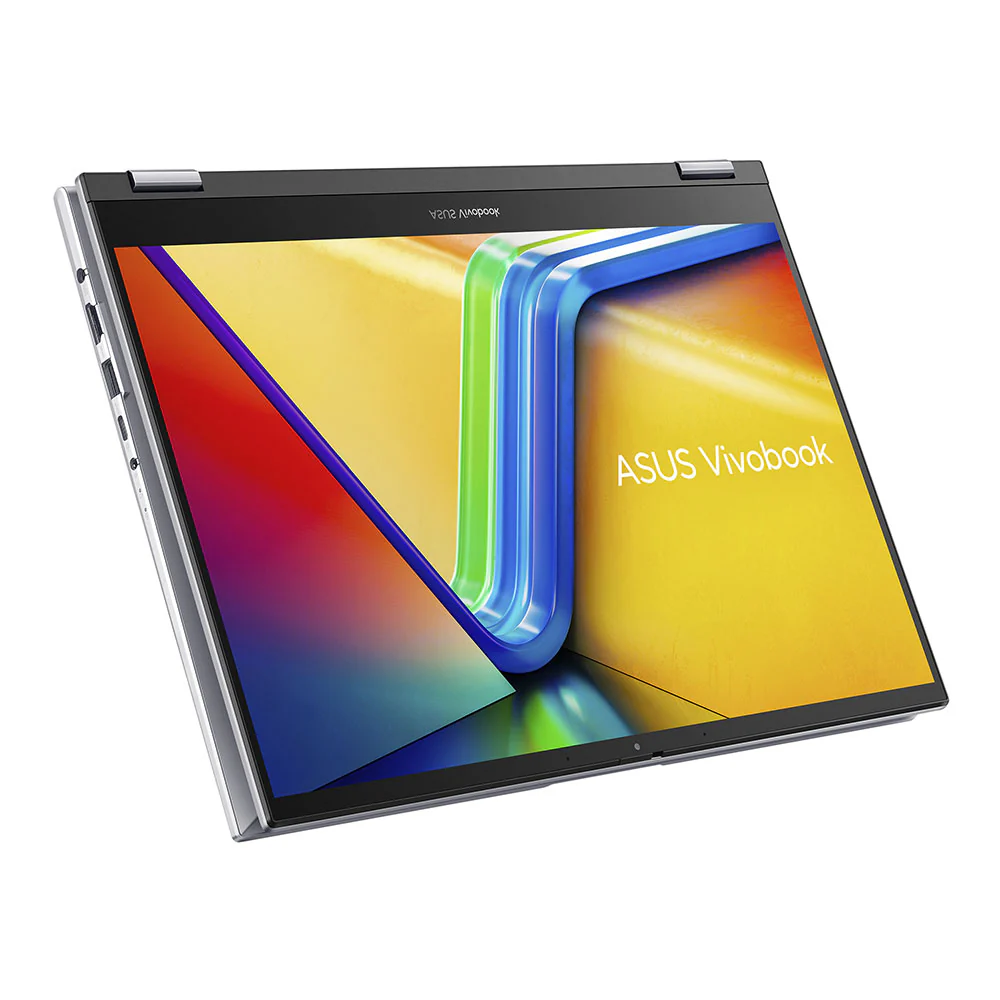

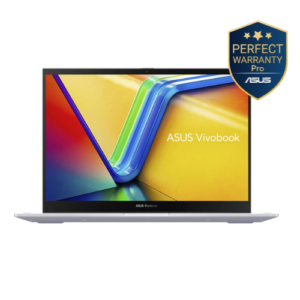

| Marketing Name | ASUS Vivobook S14 Flip |
| Operating System | Windows 11 Home – ASUS recommends Windows 11 Pro for business |
| Office | 1-month trial for new Microsoft 365 customers. Credit card required. |

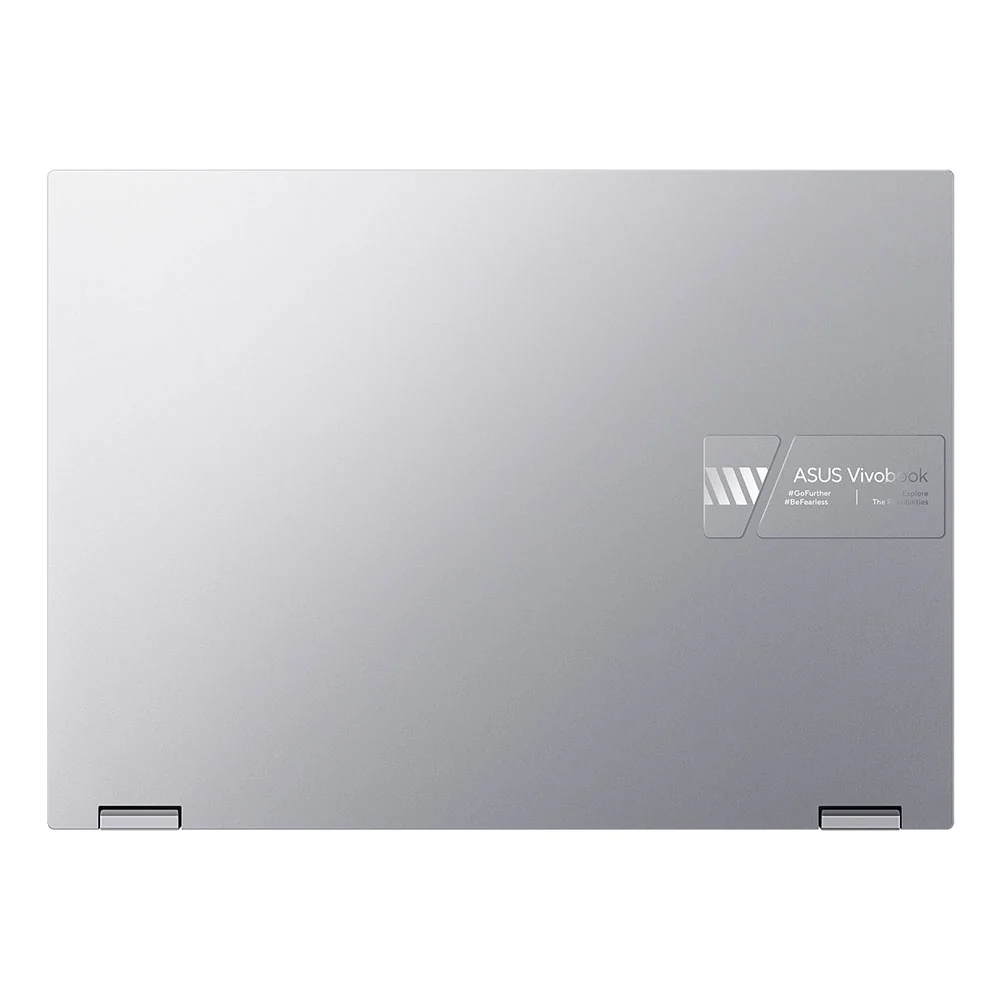

| LCD cover-material | Aluminum |
| LCD cover-color | Cool Silver |
| Top case-material | Plastic |
| Top case-color | Cool Silver |
| Keyboard color | Silver |
| Bottom case-material | Plastic |
| Bottom case-color | Cool Silver |
| Military grade | US MIL-STD 810H military-grade standard |
| Touch Panel | Touch screen |
| Panel Size | 14.0-inch |
| Resolution | WUXGA (1920 x 1200) 16:10 aspect ratio |
| LED Backlit Unit | LED Backlit |
| IPS-level | IPS-level Panel |
| Refresh rate | 60Hz refresh rate |
| Brightness | 300nits |
| Color gamut | 45% NTSC color gamut |
| Glare | Glossy display |
| TÜV Rheinland-certified | TÜV Rheinland-certified |
| Screen-to-body ratio | 85% |
| Stylus support | With stylus support |
| Processor | Intel® Core™ i9-13900H Processor 2.6 GHz (24MB Cache, up to 5.4 GHz, 14 cores, 20 Threads) |
| Chipset | N/A |
| Discrete/Share | Share |
| Intergrated GPU | Intel Iris Xᵉ Graphics |
| Disclaimer for Intel Iris Xe | *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors with up to 80 graphics execution units (EUs) and dual-channel memory. |
| Expansion Slot(includes used) | 1x DDR4 SO-DIMM slot 1x M.2 2280 PCIe 3.0×4 |
| On board memory | 8GB DDR4 on board |
| DIMM Memory | 8GB DDR4 SO-DIMM |
| Total System Memory | DDR4 16GB |
| Disclaimer for memory | *Dual-channel memory support requires at least one SO-DIMM module. |
| How to upgrade memory | Upgradable; Need to remove bottom/top case |
| Storage | 512GB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera | 1080p FHD camera ; With privacy shutter |
| Wireless | Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type | Backlit Chiclet Keyboard |
| Touchpad | Precision touchpad |
| FingerPrint | N/A |

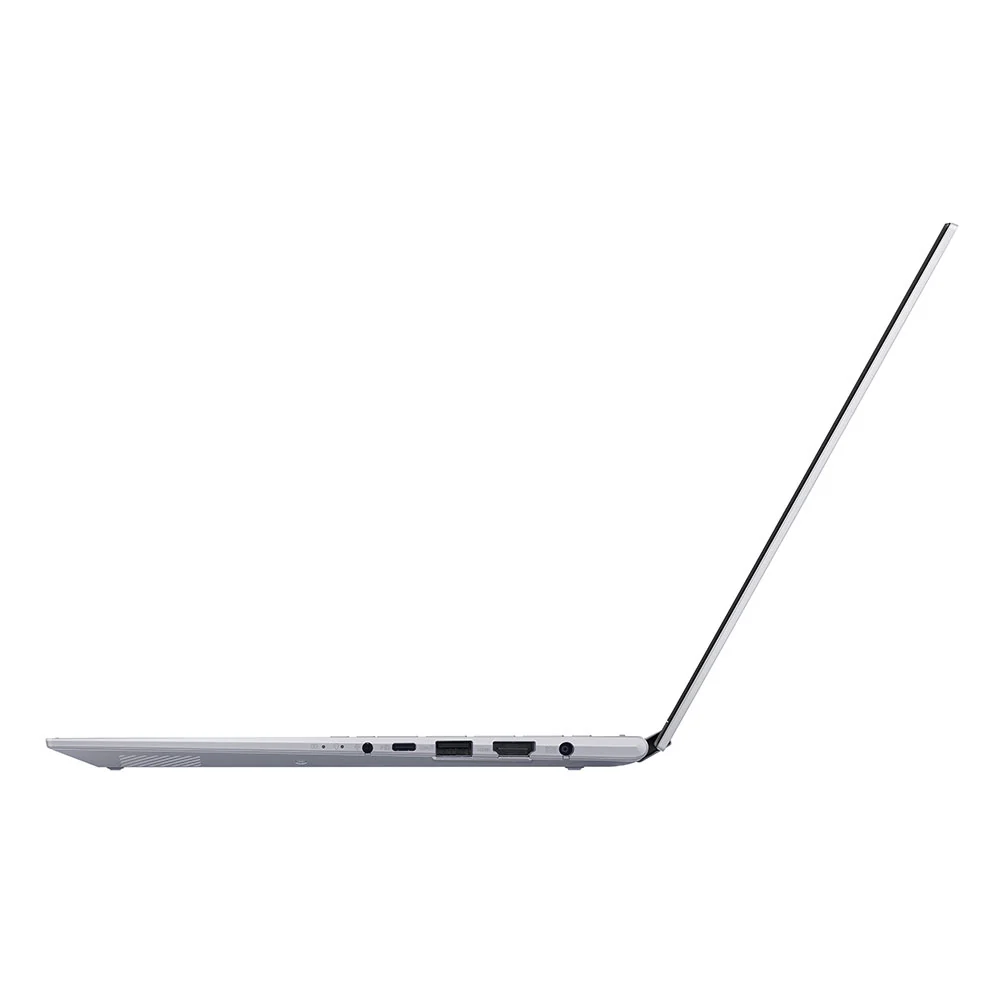

| I/O ports | 1x USB 2.0 Type-A (data speed up to 480Mbps) 1x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) 1x USB 3.2 Gen 2 Type-C with support for display / power delivery (data speed up to 10Gbps) 1x HDMI 2.1 TMDS 1x 3.5mm Combo Audio Jack 1x DC-in |
| Audio | Smart Amp Technology Built-in speaker Built-in array microphone harman/kardon (Mainstream) |
| Voice control | with Cortana voice-recognition support |
| Power | ø4.5, 90W AC Adapter, Output: 19V DC, 4.74A, 90W, Input: 100~240V AC 50/60Hz universal |
| Battery | 50WHrs, 3S1P, 3-cell Li-ion |
| Replaceable Battery | No |
| Dimension (W x H x D) | 31.32 x 22.76 x 1.89 ~ 1.89 cm (12.33″ x 8.96″ x 0.74″ ~ 0.74″) |
| Weight (with Battery) | 1.50 kg (3.31 lbs) |
| Weight (without Battery) | 1.40 kg (3.09 lbs) |
| Antivirus | McAfee® 30 days free trial |
| Security | McAfee® Trusted Platform Module (Firmware TPM) |
| MyASUS feature | System diagnosis Battery health charging Fan Profile Splendid Tru2Life Function key lock WiFi SmartConnect Link to MyASUS TaskFirst Live update ASUS OLED Care QC fastcharge AI Noise Canceling Wi-Fi Rangeboost |
| Built-in Apps | MyASUS ScreenXpert GlideX |
| Adobe Creative Cloud Hard Bundle | One-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025. |
| Included in the Box | Stylus (ASUS Pen SA200H-MPP1.51 support) |
| Ecolabels & Compliances | Energy star 8.0 RoHS REACH |
| Reparability Index (for France) | 8.8 |
