Description

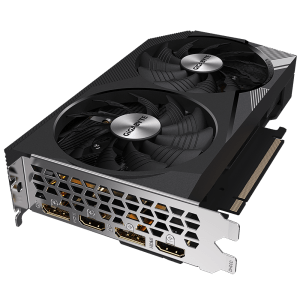

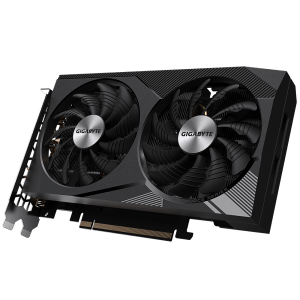

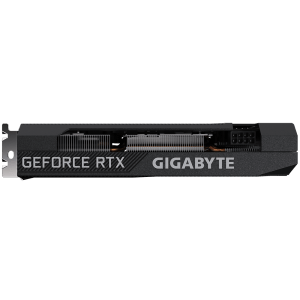

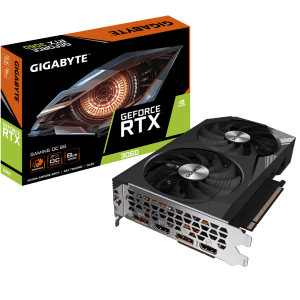

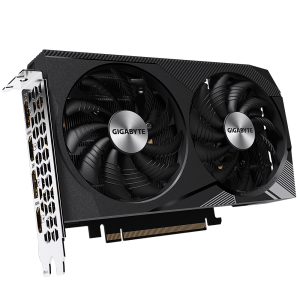

GeForce RTX™ 3060 GAMING OC 8G (rev. 1.0)

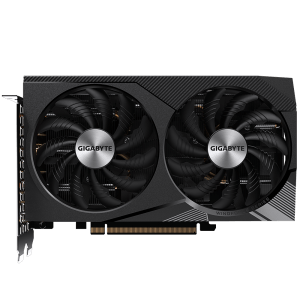

WINDFORCE 2X COOLING SYSTEM
- The WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
- The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
TINY SIZE WITH MIGHTY PERFORMANCE.
- For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.

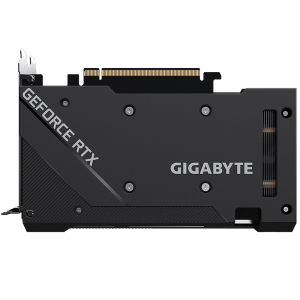

PROTECTION BACK PLATE
- The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
FRIENDLY PCB DESIGN
- Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
SPECIFICATIONS:
Graphics Processing | GeForce RTX™ 3060 |
Core Clock | 1807 MHz (Reference Card: 1777 MHz) |
CUDA® Cores | 3584 |
Memory Clock | 15000 MHz |
Memory Size | 8 GB |
Memory Type | GDDR6 |
Memory Bus | 128 bit |
Memory Bandwidth (GB/sec) | 240 GB/s |
Card Bus | PCI-E 4.0 |
Digital max resolution | 7680×4320 |
Multi-view | 4 |
Card size | L=198 W=121 H=39 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 550W |
Power Connectors | 8 pin*1 |

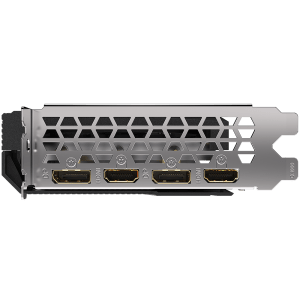

| Output | HDMI 2.1 *2 |
SLI Support | N/A |
Accessories | Quick guide |
