GIGABYTE AORUS P 750 GM POWER SUPPLY, The capacitors inside the AORUS P750W 80 are manufactured as the capacitors are built as high-quality, performance-efficient capacitors to ensure high performance.

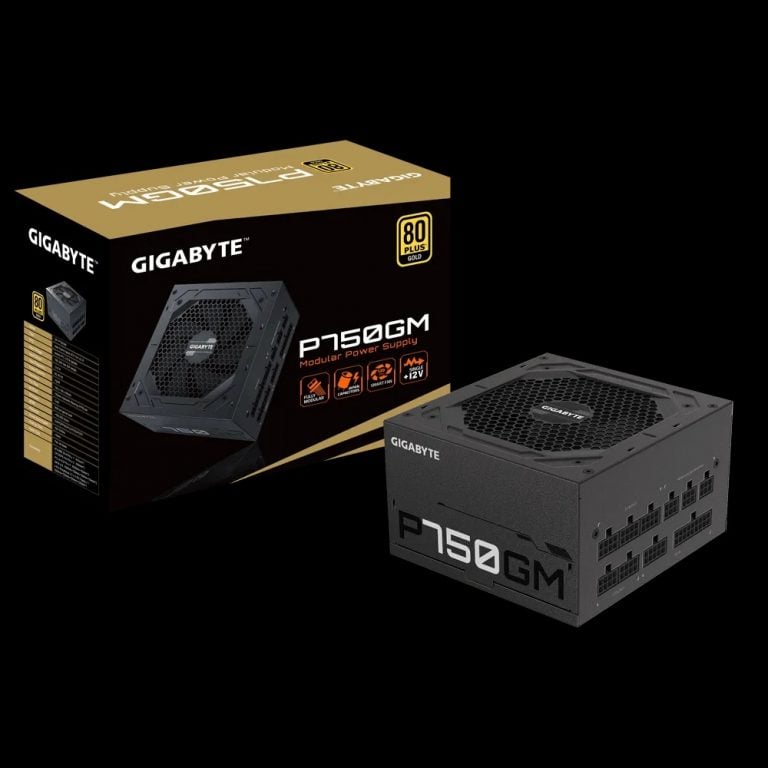

 GIGABYTE AORUS P 750 GM

The main capacitor has been working for more than 20 years, and the fan of the device depends on the system load, so that the fan stops in case the system is inactive or under load is low ie less than 20%, and the external structure bears twice more

Features:

• Fully Modular Design
• High quality 100% Japanese Capacitors
• 135mm 2 ball bearing smart fan with fan stop function
• 80 PLUS Gold certified: above 90% efficiency at 50% load
• Single +12V rail
• OCP/OTP/OVP/OPP/UVP/SCP protection
• 3 years warranty (Adjusted according to different regions)

GIGABYTE AORUS POWER SUPPLY P 750 GM:

Model: GP-AP750GM

Type: Intel Form Factor ATX 12V v2.31

PFC: Active PFC (>0.9 typical)

Input Voltage: 100-240 Vac (full range)

Current: 10A

Input Frequency: 47-63 Hz

Output Capacity: 750W

Dimension: 150 x 160 x 86mm

Fan Type: 135mm Double ball bearing fan

80 PLUS: Gold

Efficiency: 90% at typical load

MTBF: >100,000 hours

Protection: OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal: 100ms ~ 150ms

Hold Up Time: > 16m sec at full load (115V)

Cable Type: Flat, All black

Connectors

• ATX/MB 20+4 Pin x 1 : 650mm
• CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
• PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1

YOU CAN ALSO CHECK OUT MORE: FROM HERE

SATA x6 + 4 Pin Peripheral x2 :

550mm+100mm+100mm+100mm*1

450mm+100mm+100mm+100mm *1

4 Pin Peripheral x 3 + 4 pin Floppy x 1 :

450mm+100mm+100mm+100mm*1

4 Pin Floppy x 1 : 100mm
