Specification:

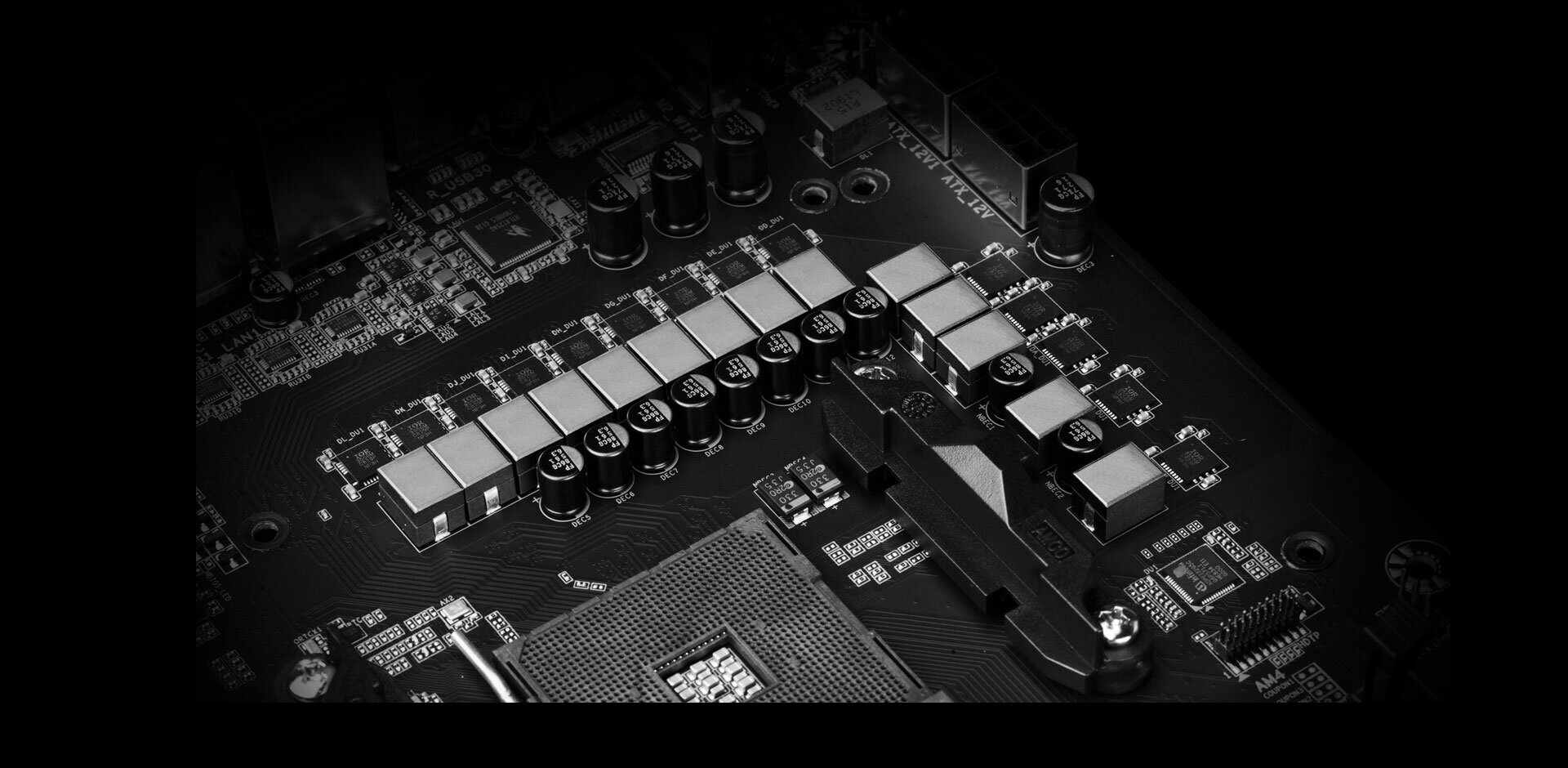

CPU | AMD Socket AM4, support for : Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
(Please refer “CPU Support List” for more information.) |

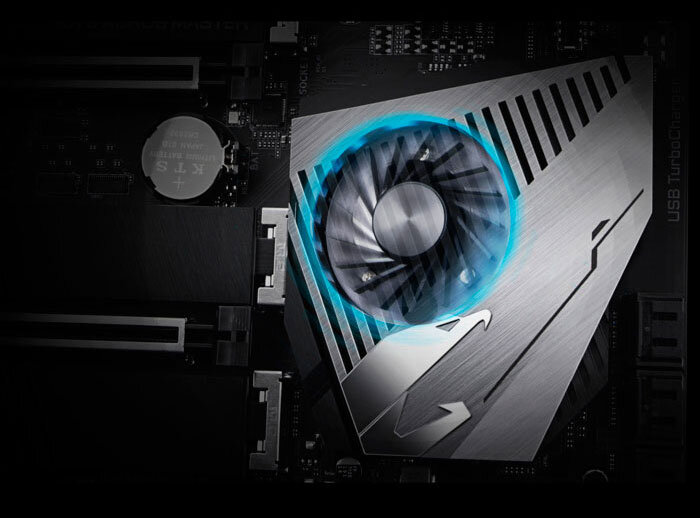

Chipset | AMD X570 |
Memory | 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture 3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* · ECC memory (ECC mode) support varies by CPU 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules 6. Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) |
Audio | 1. Realtek® ALC1220-VB codec
· The front panel line out jack supports DSD audio. 2. ESS SABRE9118 DAC chip 3. High Definition Audio 4. 2/4/5.1/7.1-channel 5. Support for S/PDIF Out |
LAN | 1. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)
2. 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2) |
Wireless Communication module | 1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate 4. * Actual data rate may vary depending on environment and equipment. |
Expansion Slots | 1. Integrated in the CPU (PCIEX16/PCIEX8):
2. AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors: 3. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 4. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 5. AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™ Processors: 6. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 7. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) a. For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. b. The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 8. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 9. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) 10. Integrated in the Chipset (PCIEX4/PCIEX1): 11. 1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4) 12. 1 x PCI Express x1 slot, supporting PCIe 4.0/3.0 |
Multi-Graphics Technology | 1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™ Processors only. |
Storage Interface | Integrated in the CPU (M2A_SOCKET):
1. AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2. AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors: 3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 / 3.0 x4/x2 SSD support) (M2B_SOCKET) 2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 / 3.0 x4/x2 SSD support) (M2C_SOCKET) 3. 6 x SATA 6Gb/s connectors 4. Support for RAID 0, RAID 1, and RAID 10 * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. |
USB | Integrated in the CPU:
1. 2 x USB 3.2 Gen 2/Gen 1 Type-A ports (red) on the back panel 2. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Connectors | 2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
3. Internal I/O Connectors 4. 1 x 24-pin ATX main power connector 5. 2 x 8-pin ATX 12V power connectors 6. 1 x CPU fan header 7. 1 x water cooling CPU fan header 8. 3 x system fan headers 9. 2 x system fan/water cooling pump headers 10. 2 x addressable LED strip headers 11. 2 x RGB LED strip headers 12. 3 x M.2 Socket 3 connectors 13. 6 x SATA 6Gb/s connectors 14. 1 x front panel header 15. 1 x front panel audio header 16. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 17. 2 x USB 3.2 Gen 1 headers 18. 2 x USB 2.0/1.1 headers 19. 1 x noise detection header 20. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 21. 2 x temperature sensor headers 22. 1 x power button 23. 1 x reset button 24. 2 x BIOS switches 25. 1 x Clear CMOS jumper . Voltage Measurement Points *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
|
Back Panel Connectors | 1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button 3. 2 x SMA antenna connectors (2T2R) 4. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 5. 2 x USB 3.2 Gen 2/Gen 1 Type-A ports (red) 6. 1 x USB 3.2 Gen 2 Type-A port (red) 7. 2 x USB 3.2 Gen 1 ports 8. 4 x USB 2.0/1.1 ports 9. 2 x RJ-45 ports 10. 1 x optical S/PDIF Out connector 11. 5 x audio jacks |
I/O Controller | 1. iTE® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection
2. Temperature detection 3. Fan speed detection 4. Water cooling flow rate detection 5. Overheating warning 6. Fan fail warning 7. Fan speed control 8. Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. 9. Noise detection |
BIOS | 1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS 3. Support for DualBIOS™ 4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | 1. Support for APP Center
· Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer USB TurboCharger 2. Support for Q-Flash Plus 3. Support for Q-Flash 4. Support for Xpress Install |
Bundled Software | 1. Norton® Internet Security (OEM version)
2. cFosSpeed 3. 1XSplit Gamecaster + Broadcaster (12 months license) |
Operating System | 1. Support for Windows 10 64-bit |
Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
Remark | 1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
For more information Click Here
