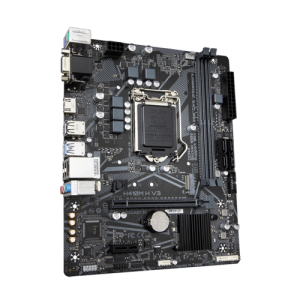

H410M H V3 (rev. 1.0)

Features:

Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, Anti-Sulfur Resistor, Smart Fan 5
  • Supports 10th Gen Intel®Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • GIGABYTE Gaming GbE LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

Specifications:

CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package

L3 cache varies with CPU

(Please refer to “CPU Support List” for more information.)

Chipset Intel® H510 Express Chipset
Memory 1.      Intel® Core™ i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

2.      Intel® Core™ i5/i3/Pentium®/Celeron® processors:

3.      Support for DDR4 2666/2400/2133 MHz memory modules

4.      2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

5.      Dual channel memory architecture

6.      Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

7.      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

8.      Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1.      1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

2.      1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

(Graphics specifications may vary depending on CPU support.)

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

LAN Gigabit Ethernet Chip (1 Gbps/100 Mbps)
Expansion Slots 1.      1 x PCI Express x16 slot, running at x16

2.      1 x PCI Express x1 slot

(The PCI Express slots conform to PCI Express 3.0 standard.

Storage Interface Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)

4 x SATA 6Gb/s connectors

USB Chipset:

1.      4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

2.      6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors 1.      1 x 24-pin ATX main power connector

2.      1 x 8-pin ATX 12V power connector

3.      4 x SATA 6Gb/s connectors

4.      1 x CPU fan header

5.      1 x system fan header

6.      1 x RGB LED strip header

7.      1 x front panel header

8.      1 x front panel audio header

9.      1 x USB 3.2 Gen 1 header

10.  1 x USB 2.0/1.1 header

11.  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

12.  1 x serial port header

13.  1 x Clear CMOS jumper

*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

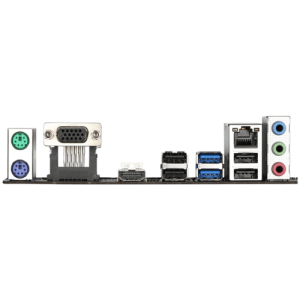

Back Panel Connectors 1.      1 x PS/2 keyboard port

2.      1 x PS/2 mouse port

3.      1 x D-Sub port

4.      1 x HDMI port

5.      2 x USB 3.2 Gen 1 ports

6.      4 x USB 2.0/1.1 ports

7.      1 x RJ-45 port

8.      3 x audio jacks

I/O Controller iTE® I/O Controller Chip
H/W Monitoring 1.      Voltage detection

2.      Temperature detection

3.      Fan speed detection

4.      Overheating warning

5.      Fan fail warning

6.      Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features 1.      Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

Ambient LED

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Smart Backup

System Information Viewer

2.      Support for Q-Flash

3.      Support for Xpress Install

Bundled Software Norton® Internet Security (OEM version)

Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
