Description

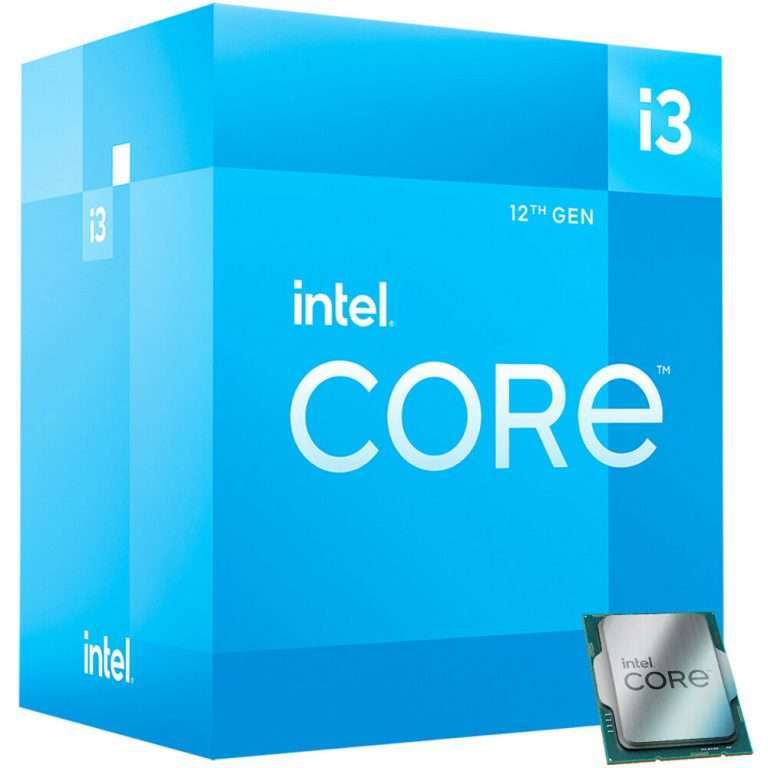

Intel® Core™ i3-12100 Processor 12M Cache, up to 4.30 GHz
Specification:
| Essentials | - Product Collection: 12th Generation Intel® Core™ i3 Processors
- Code Name: Products formerly Alder Lake
- Vertical Segment: Desktop
- Processor Number: i3-12100
|
| CPU Specifications | - Total Cores: 4
- # of Performance-cores: 4
- # of Efficient-cores: 0
- Total Threads: 8
- Max Turbo Frequency: 4.40 GHz
- Performance-core Max Turbo Frequency: 4.40 GHz
- Performance-core Base Frequency: 3.50 GHz
- Cache: 12 MB Intel® Smart Cache
- Total L2 Cache: 5 MB
- Processor Base Power: 60 W
- Maximum Turbo Power: 89 W
|
| Processor Graphics | - Processor Graphics : Intel® UHD Graphics 730
- Graphics Base Frequency: 300 MHz
- Graphics Max Dynamic Frequency: 1.45 GHz
- Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
- Execution Units: 24
- Max Resolution (HDMI): 4096 x 2160 @ 60Hz
- Max Resolution (DP): 7680 x 4320 @ 60Hz
- Max Resolution (eDP – Integrated Flat Panel):5120 x 3200 @ 120Hz
- DirectX* Support: 12
- OpenGL* Support: 4.5
- Multi-Format Codec Engines: 1
- Intel® Quick Sync Video: Yes
- Intel® Clear Video HD Technology: Yes
- # of Displays Supported: 4
- Device ID: 0x4692
- OpenCL* Support: 2.1
|
| Memory Specifications | - Max Memory Size (dependent on memory type): 128 GB
- Memory Types: Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
- Max # of Memory Channels: 2
- Max Memory Bandwidth: 76.8 GB/s
|
| Expansion Options | - Direct Media Interface (DMI) Revision: 4.0
- Max # of DMI Lanes: 8
- Scalability: 1S Only
- PCI Express Revision: 5.0 and 4.0
- PCI Express Configurations : Up to 1×16+4, 2×8+4
- Max # of PCI Express Lanes: 20
|
| Package Specifications | - Sockets Supported: FCLGA1700
- Max CPU Configuration: 1
- Thermal Solution Specification: PCG 2020C
- TJUNCTION: 100°C
- Package Size: 45.0 mm x 37.5 mm
|
| Advanced Technologies | - Intel® Gaussian & Neural Accelerator: 3.0
- Intel® Thread Director: No
- Intel® Deep Learning Boost (Intel® DL Boost): Yes
- Intel® Optane™ Memory Supported : Yes
- Intel® Speed Shift Technology: Yes
- Intel® Turbo Boost Max Technology 3.0: No
- Intel® Turbo Boost Technology: 2.0
- Intel® Hyper-Threading Technology: Yes
- Intel® 64 : Yes
- Instruction Set: 64-bit
- Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle States: Yes
- Enhanced Intel SpeedStep® Technology: Yes
- Thermal Monitoring Technologies: Yes
- Intel® Volume Management Device (VMD): Yes
|
| Security & Reliability | - Intel® Threat Detection Technology (TDT): Yes
- Intel® Standard Manageability (ISM): Yes
- Intel® AES New Instructions: Yes
- Secure Key: Yes
- Intel® OS Guard: Yes
- Execute Disable Bit: Yes
- Intel® Boot Guard: Yes
- Mode-based Execute Control (MBEC): Yes
- Intel® Control-Flow Enforcement Technology: Yes
- Intel® Virtualization Technology (VT-x):Yes
- Intel® Virtualization Technology for Directed I/O (VT-d): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
|
For more information Click Here
