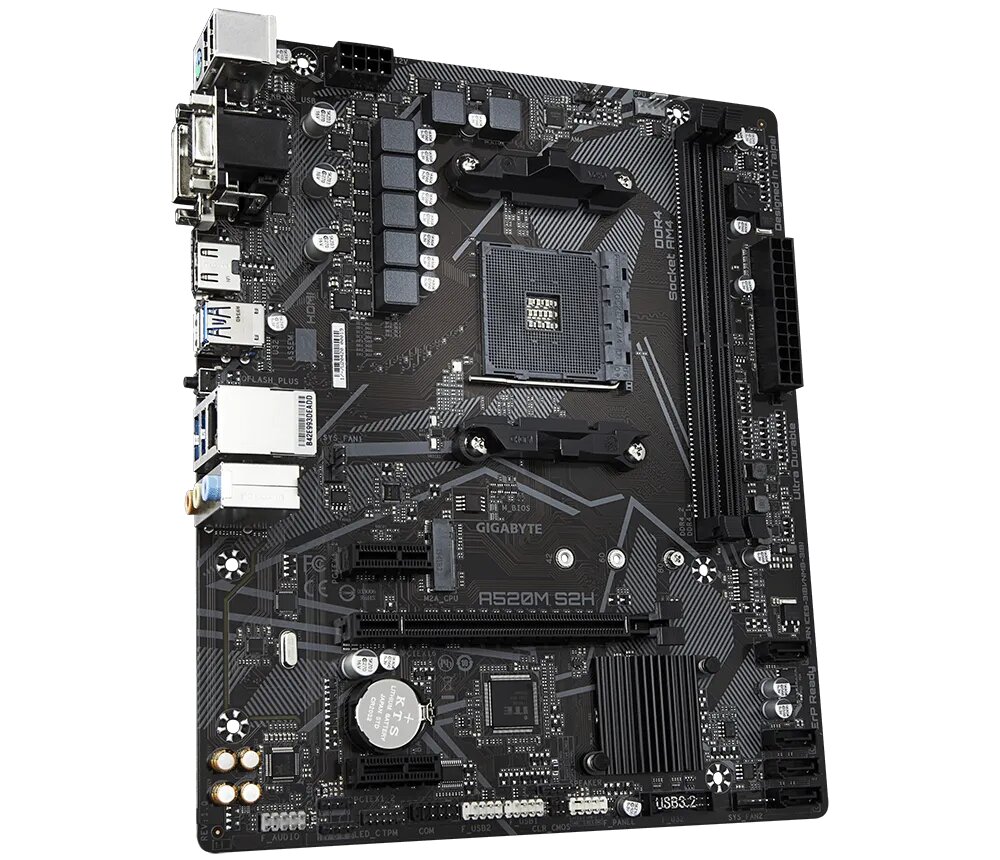

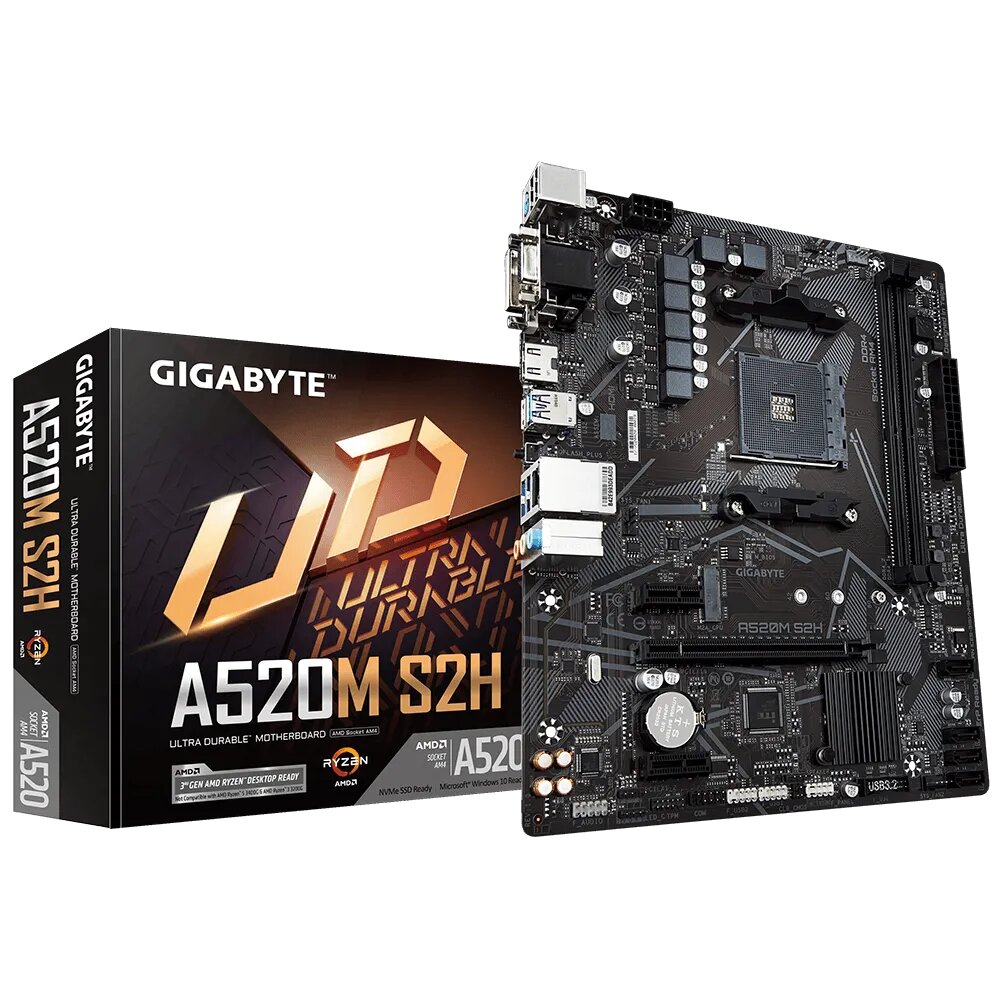

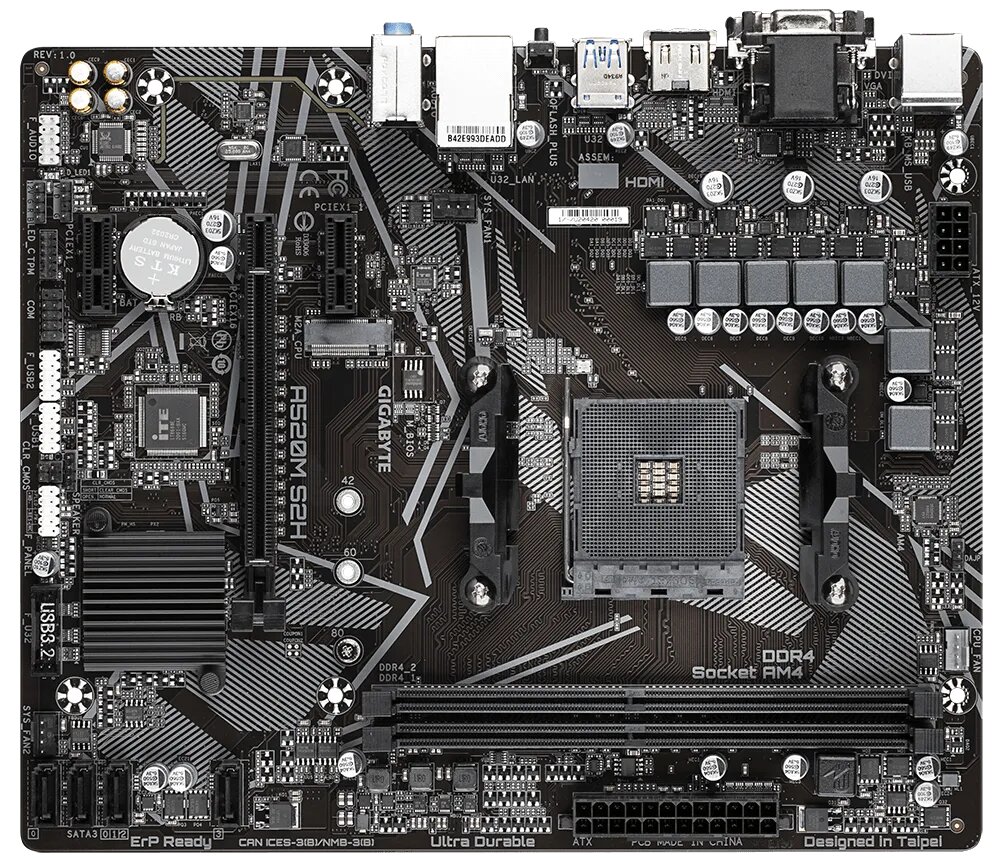

MB GIGABYTE A520 M S2H AMD

Position:: 0
WooCommerce ID:: 9321

MB GIGABYTE A520 M S2H AMD such motherboard relies on a special digital design of PWM + Low RDS and the motherboard comes with a MOSFETs design, in order to support AMD 3rd Gen Amd Ryzen's CPU in order to provide stunning accuracy by saving the system's modified performance and having the ability to eventually develop the hardware.

MB GIGABYTE A520 M S2H AMD

Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI, DVI-D, D-sub Ports for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card
Anti-Sulfur Resistors Design

CPU

AMD Socket AM4, support for AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors.

Chipset: AMD A520

MB GIGABYTE A520 M S2H Memory:

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen™ 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

MB GIGABYTE A520 M S2H Onboard Graphics:

D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
The DVI-D port does not support D-Sub connection by adapter.
HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

MB GIGABYTE A520 M S2H Audio:

Realtek^® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN: Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots:

CPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0

Storage Interface:

CPU:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset:4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10

USB:

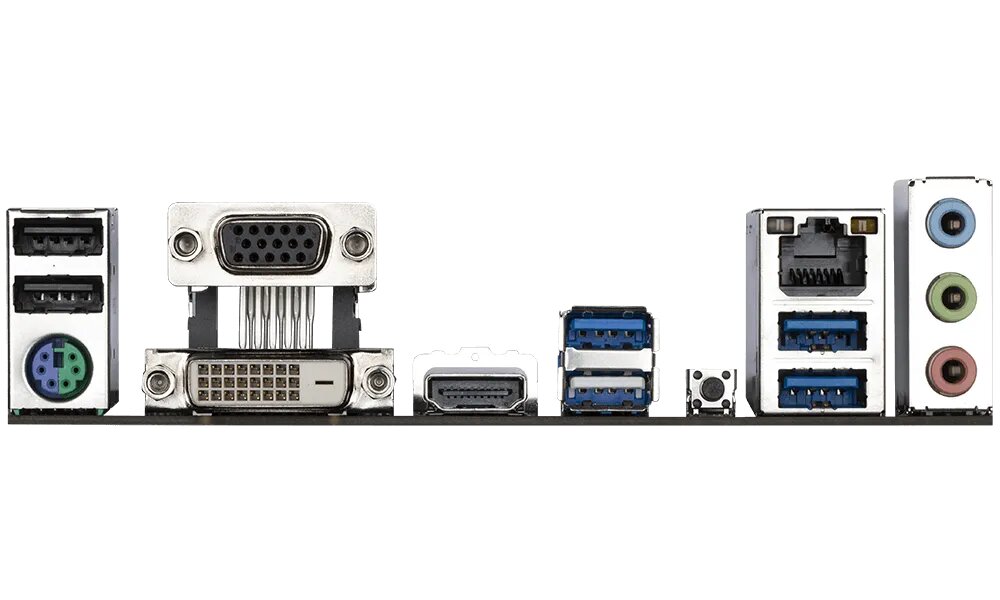

CPU:4 x USB 3.2 Gen 1 ports on the back panel Chipset:2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

BIOS:
