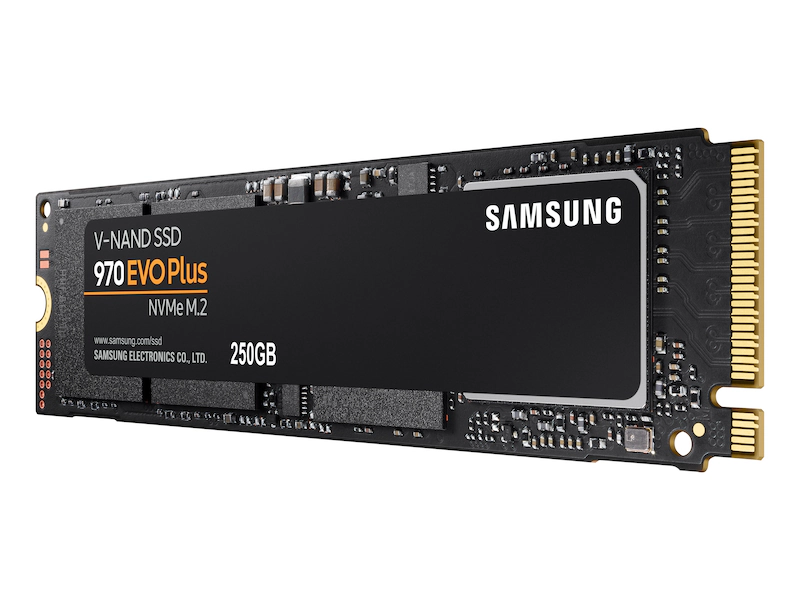

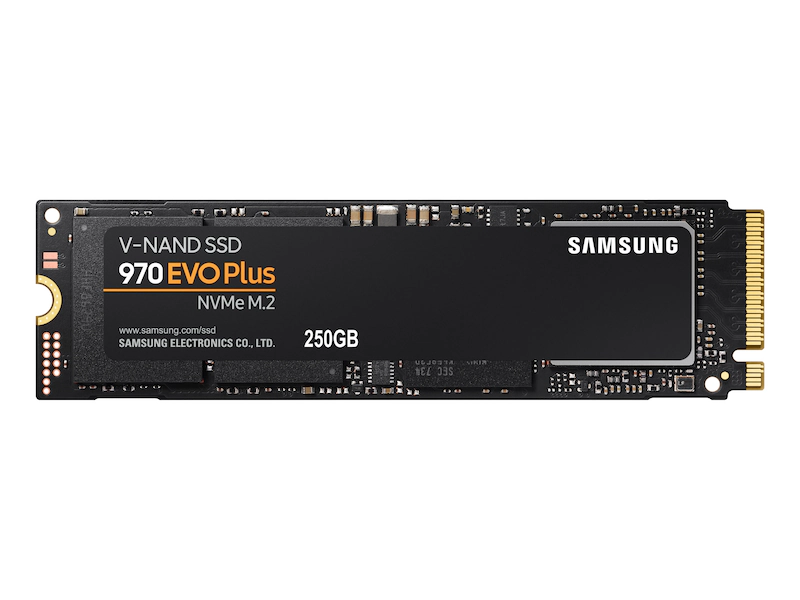

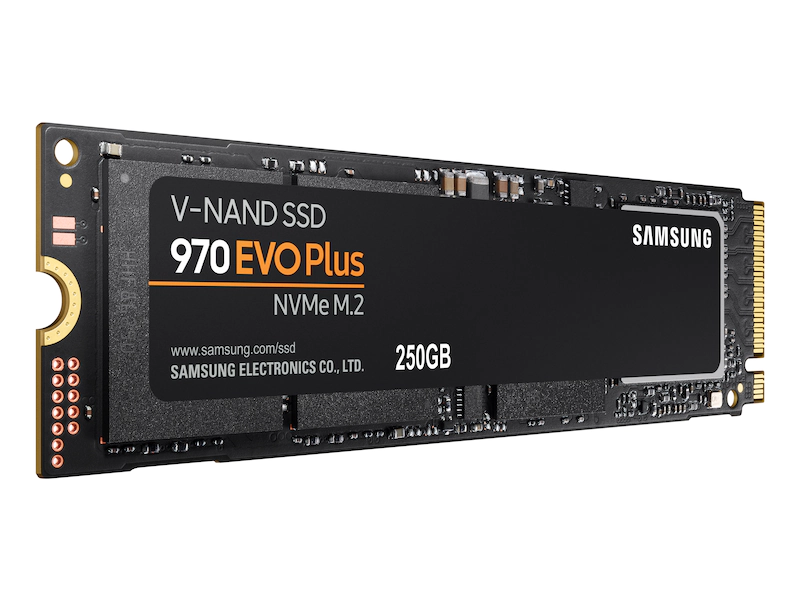

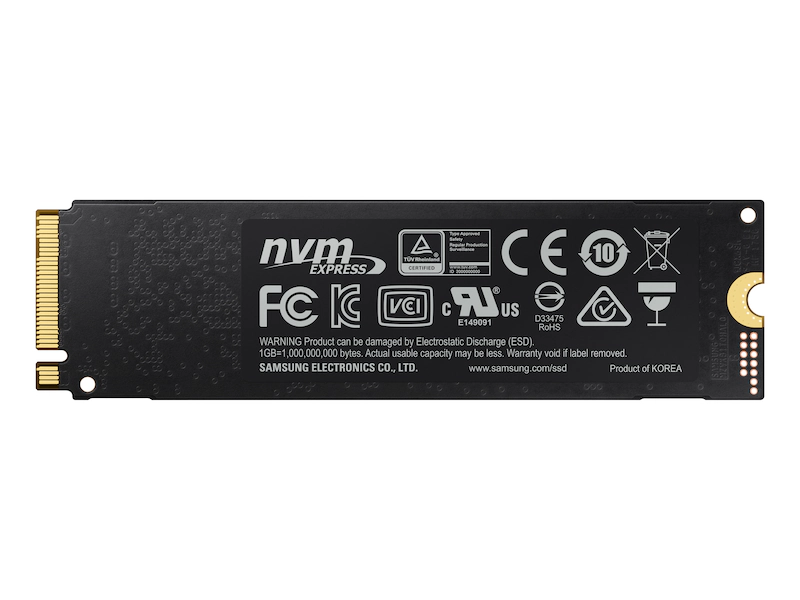

Samsung 970 Evo Plus 250Gb M.2 Nvme Internal Solid State Drive SSD

Available:: Out of Stock

SPECIFICATIONS:

Product Type	NVMe SSD
Storage Type	Internal
Interface	PCIe Gen 3.0 x 4, NVMe 1.3
Read/Write Speeds	3,500/2,300 MB/s
Application	Client PCs
Series	970 EVO Plus
Consumer	Yes
Capacity	250GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Sequential Read Speed	Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed	Up to 2,300 MB/s * Performance may vary based on system hardware & configuration
Random Read Speed	Random Read (4KB, QD32): Up to 250,000 IOPS; Random Read (4KB, QD1): Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
Random Write Speed	Random Write (4KB, QD32): Up to 550,000 IOPS; Random Write (4KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration
Controller	In-house
NAND Flash	Samsung V-NAND 3-bit MLC
Cache Memory	Samsung 512MB Low Power DDR4 SDRAM
Trim Support	Supported
AES Encryption	AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
Security	AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
S.M.A.R.T. Support	Supported
GC (Garbage Collection)	Auto Garbage Collection Algorithm
WWN Support	Not supported
Device Sleep Mode Support	Yes
Internal Storage	Samsung V-NAND 3-bit MLC
Temperature proof	Yes
NVMe	Yes
Gaming SSDs	Yes
M.2 2280	Yes
Average Power Consumption (system level)	* Average: 5 W * Maximum: 8 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)	Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Voltage	3.3 V ± 5 % Allowable voltage
Reliability (MTBF)	1.5 Million Hours Reliability (MTBF) Environmental Specs
Temperature	0 - 70 ℃ Operating Temperature
Shock	1,500 G & 0.5 ms (Half sine)
Product	M.2 (2280) Dimensions (W x H x D)
Weight	0.3 oz.
Management SW	Magician Software for SSD management
Warranty	5-Year Limited Warranty or: 150 TBW Limited Warranty
Voltage	3.3 V ± 5 % Allowable voltage
AES Encryption	AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
