SPECIFICATIONS

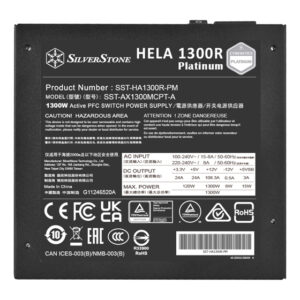

Product No. | SST-HA1300R-PM |
Model (safety certification) | SST-AX1300MCPT-A |
Color | Black (lead-free paint) |
Max. DC Output | 1300W |
Power density | 720W per liter |
| Output+3.3V+5V+12V+5VSB-12VMax.(Amps)24A24A108.3A3.0A0.5AMin.(Amps)0A0A0A0A0ARange (%)±5%±5%+5/-7%±5%±5%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)40mV40mV80mV40mV80mV |
Combined +3.3V & +5V | 120W |
Combined +12V | 1300W |
Input Voltage | 90 ~ 264 Vrms |
Input Frequency Range | 47Hz ~ 63Hz |
PFC | Active PFC (PF>0.9 at full load) |
Efficiency | ≥89% & <91% overall efficiency |
MTBF | 100,000 hours |
Operating temperature | 0°C ~ 50°C |
Protection | Over Current Protection Over Power Protection Over Voltage Protection Over Temperature Protection Short Circuit Protection Under Voltage Protection No load operation |

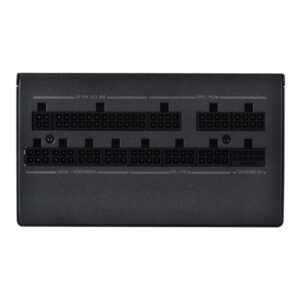

| 1 x 24 / 20-Pin motherboard connector 2 x 4-Pin + 4-Pin ATX 12V connector 1 x 12+4-Pin 12VHPWR connector 8 x 8 / 6-Pin PCIe connectors 8 x SATA connectors 6 x 4-Pin Peripheral connectors 2 x 4-Pin Floppy connectors |

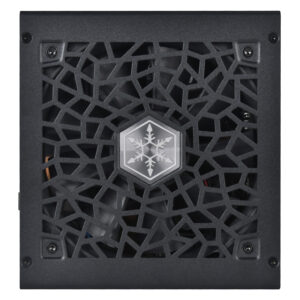

Cooling System | Silent 120mm FDB fan |
Noise Level | 0 dBA minimum |
Certification | Cybenetics Platinum |
Form factor | ATX (PS2) |
Dimension | 150mm (W) x 86mm (H) x 140mm (D) |
Weight | 2.93 kg |
Other | GPU Support list |
