CPU

LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and
12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

*Please refer to “CPU Support List” for more information. L3cache varies with CPU

Chipset

Intel® H610 Express Chipset

Memory

• -Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th
  Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®
  Gold and Celeron® Processors:
• -Support for DDR5 4800/4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of
  system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
  non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (The CPU and memory configuration may affect the supported memory types, data
  rate (speed), and number of DRAM modules, please refer to “Memory
  Support List” on GIGABYTE’s website for more information.)

Onboard Graphics

• – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
• *Support for HDMI 2.0 version and HDCP 2.3.
• – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
• *Support for DisplayPort 1.2 version and HDCP 2.3
• (Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You
can change the functionality of an audio jack using the audio software.
To configure 7.1-channel audio, access the audio software for audio
settings.

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

• – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
• – 2 x SATA 6Gb/s connectors

USB

•  4 xUSB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available
  through the internal USB header)
•  6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through
  the internal USB header)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0
  module only)
• 1 x Clear CMOS jumper

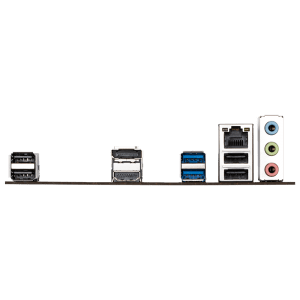

Back Panel Connectors

• 1 x HDMI port
• 1 x DisplayPort
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• *Whether the fan speed control function is supported will depend on the
  cooler you install.

BIOS

1 x 128 Mbit flash   Use of licensed AMI UEFI BIOS

PnP    1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center
• *Available applications in APP Center may vary by motherboard model.
  Supported functions of each application may also vary depending on
  motherboard specifications.
• -@BIOS
• – EasyTune
• -Smart Backup
• -System Information Viewer
• Support for Q-Flash
• Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

MicroATX Form Factor; 23.0cm x 21.5cm
