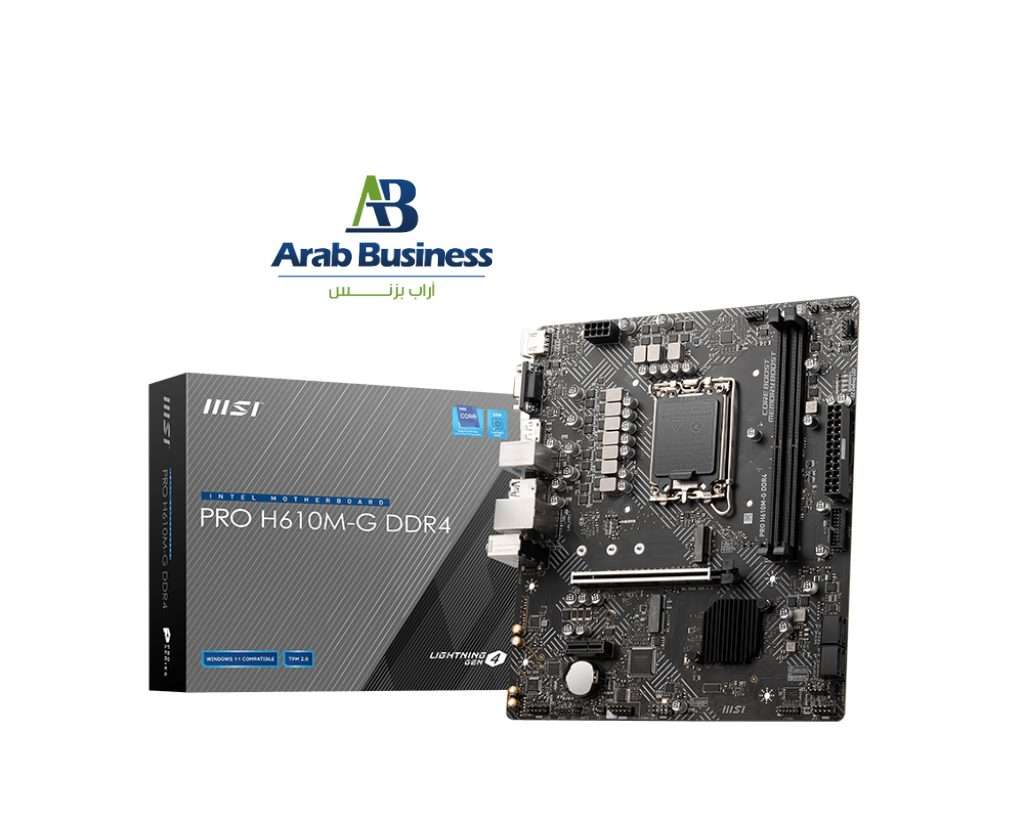

MSI PRO H610M-G DDR4 DDR4 Motherboard

MSI PRO H610M-G DDR4 Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

PRO H610M-G DDR4

• Supports 12th/ 13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

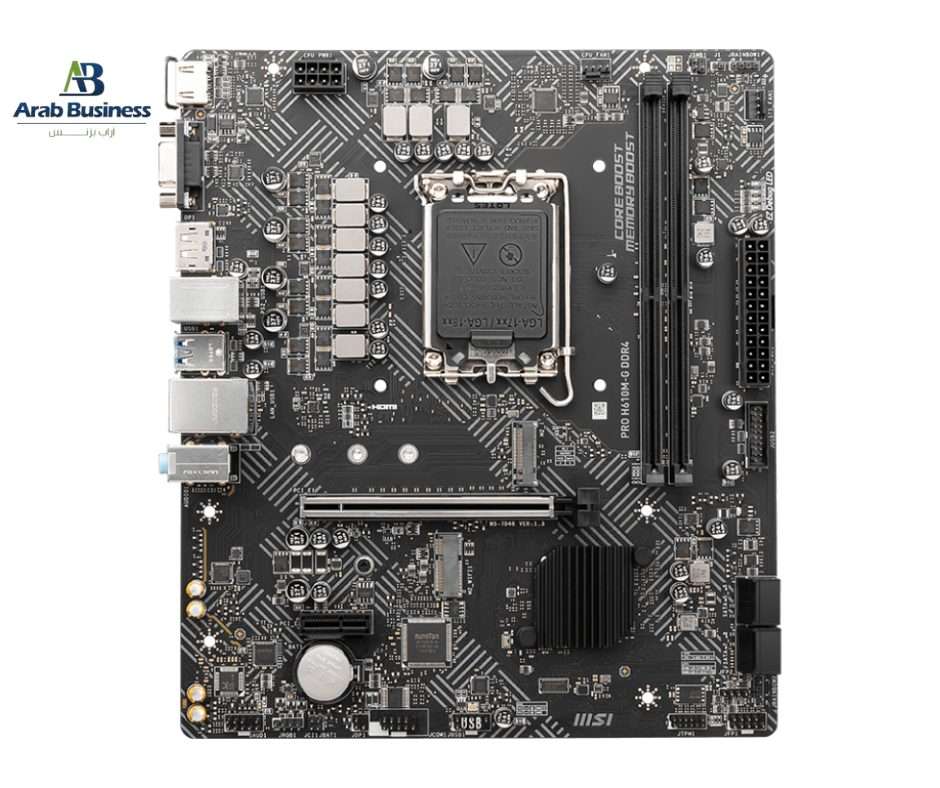

[caption id="attachment_20172" align="aligncenter" width="895"] MSI PRO H610M-G DDR4 DDR4 Motherboard[/caption] CORE BOOST Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Specifications

Detail
PROCESSOR	· Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 · Processor socket LGA1700
CHIPSET	Intel® H610 Chipset
MEMORY	· 2x DDR4 memory slots, support up to 64GB1 · Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) · Supports Dual-Channel mode · Supports non-ECC, un-buffered memory
EXPANSION SLOT	· 1x PCIe x16 slot (From CPU) · Supports up to PCIe 4.0 x16 · 1x PCIe x1 slot · Supports PCIe 3.0 x1 · 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
ONBOARD GRAPHICS	· 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2 · 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, · ·  · 1920x1200 60Hz1 · x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1
SATA PORTS	4x SATA 6Gb/s ports1
M.2 SSD SLOT	· 1x M.2 slot (Key M, from chipset)1 · Supports up to PCIe 3.0 x4 · Supports up to SATA 6Gb/s · Supports 2242/ 2260/ 2280 storage devices · Supports Intel® Smart Response Technology for Intel Core™ processors · SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB	· Intel® H610 Chipset · 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through · the internal USB connector) · 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through · the internal USB 2.0 connector)
AUDIO	· Realtek® ALC892/ ALC897 Codec · 7.1-Channel High Definition Audio
LAN	· 1x Intel® I219V 1Gbps LAN controller
POWER CONNECTORS	· 1x 24-pin ATX main power connector · 1x 8-pin ATX 12V power connector
FAN CONNECTORS	· 1x 4-pin CPU fan connector · 1x 4-pin system fan connector
SYSTEM CONNECTORS	· 1x Front panel audio connector · 2x System panel connectors · 1x Chassis Intrusion connector · 1x TPM module connector
JUMPERS	· 1x Clear CMOS jumper
LED FEATURES	· 1x 4-pin RGB LED connector · 2x 3-pin RAINBOW LED connectors · 4x EZ Debug LED

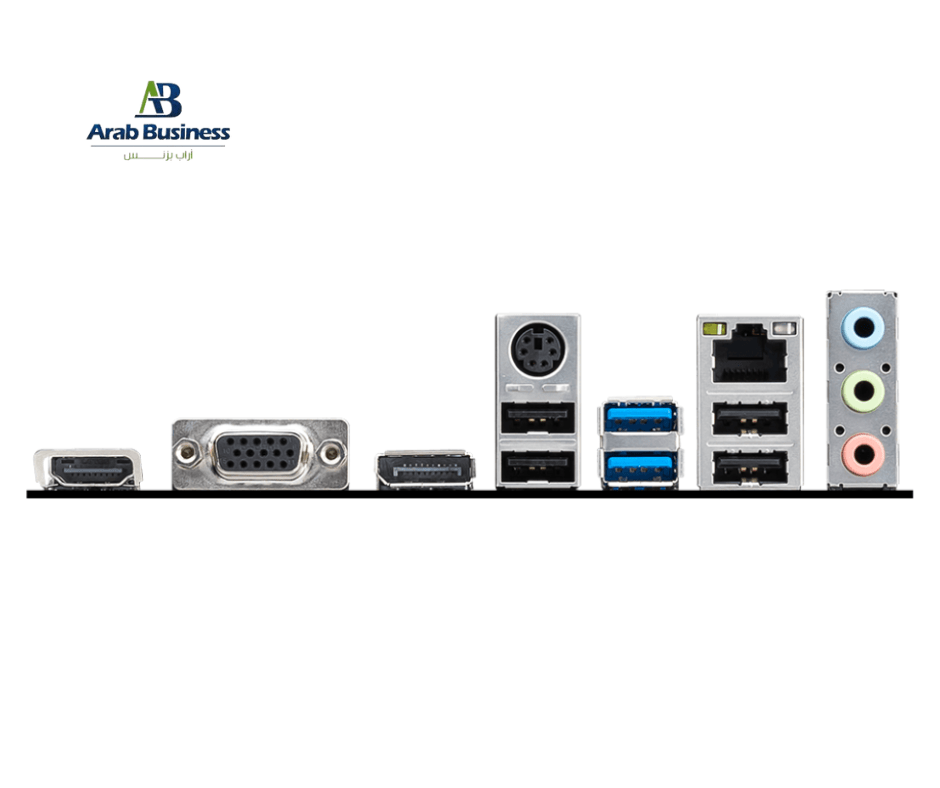

BACK PANEL PORTS	·  HDMI™ ·  VGA ·  DisplayPort ·  Keyboard/Mouse ·  USB 3.2 Gen 1 5Gbps Type-A ·  LAN port ·  Audio connector ·  USB 2.0
DIMENSIONS	· mATX Form Factor · 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
OPERATING SYSTEM	· Support for Windows® 11 64-bit

SPECIFICATIONS
SOCKET	1700
CHIPSET	Intel® H610 Chipset
MEMORY CHANNEL	Dual
DIMM SLOTS	2
MAX MEMORY (GB)	64
PCI-E X16)	1
PCI-E X1	1
SATAIII	4
M.2 SLOT	1
TPM (HEADER)	1
USB 3.2 PORTS (FRONT)	2(Gen 1, Type A)
USB 3.2 PORTS (REAR)	2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)	2
USB 2.0 PORTS (REAR)	4
AUDIO PORTS (REAR)	Realtek® ALC892/ ALC897 Codec
DISPLAYPORT	1
VGA	1
HDMI	1
DIRECTX	12
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR	M-ATX
