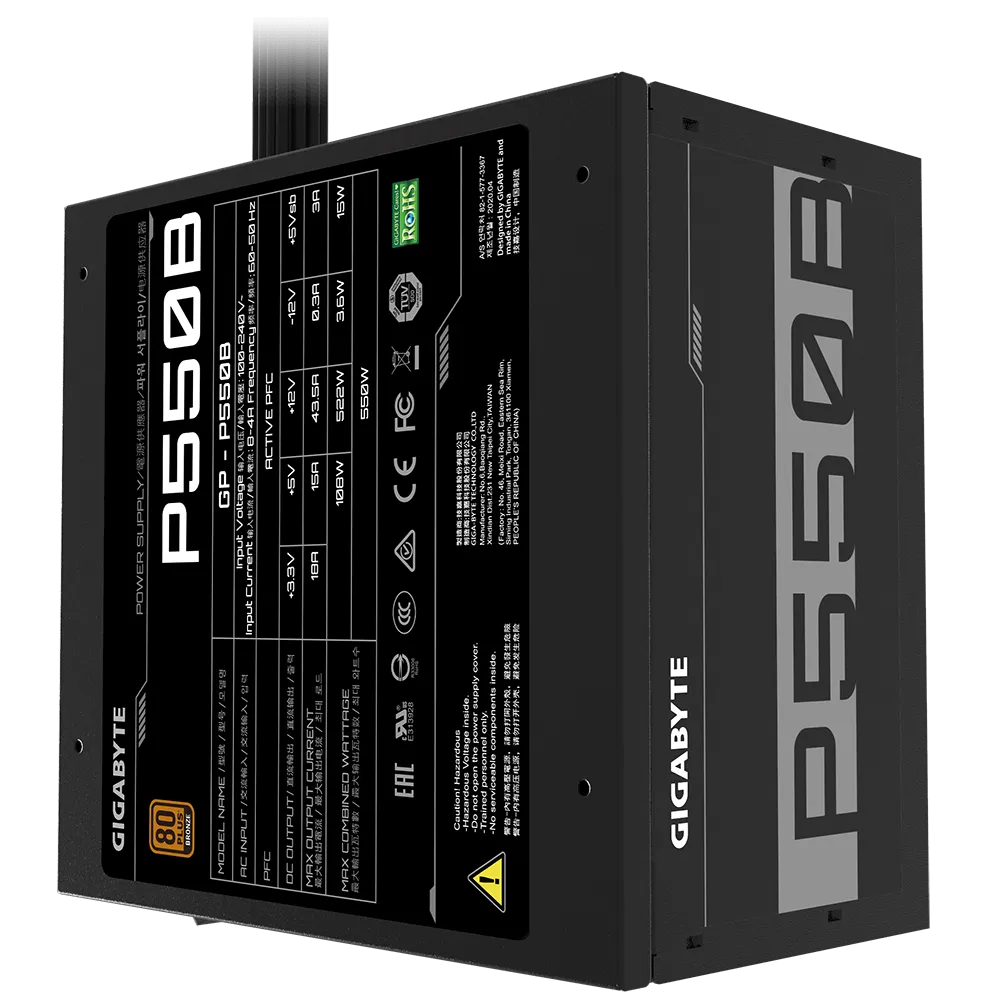

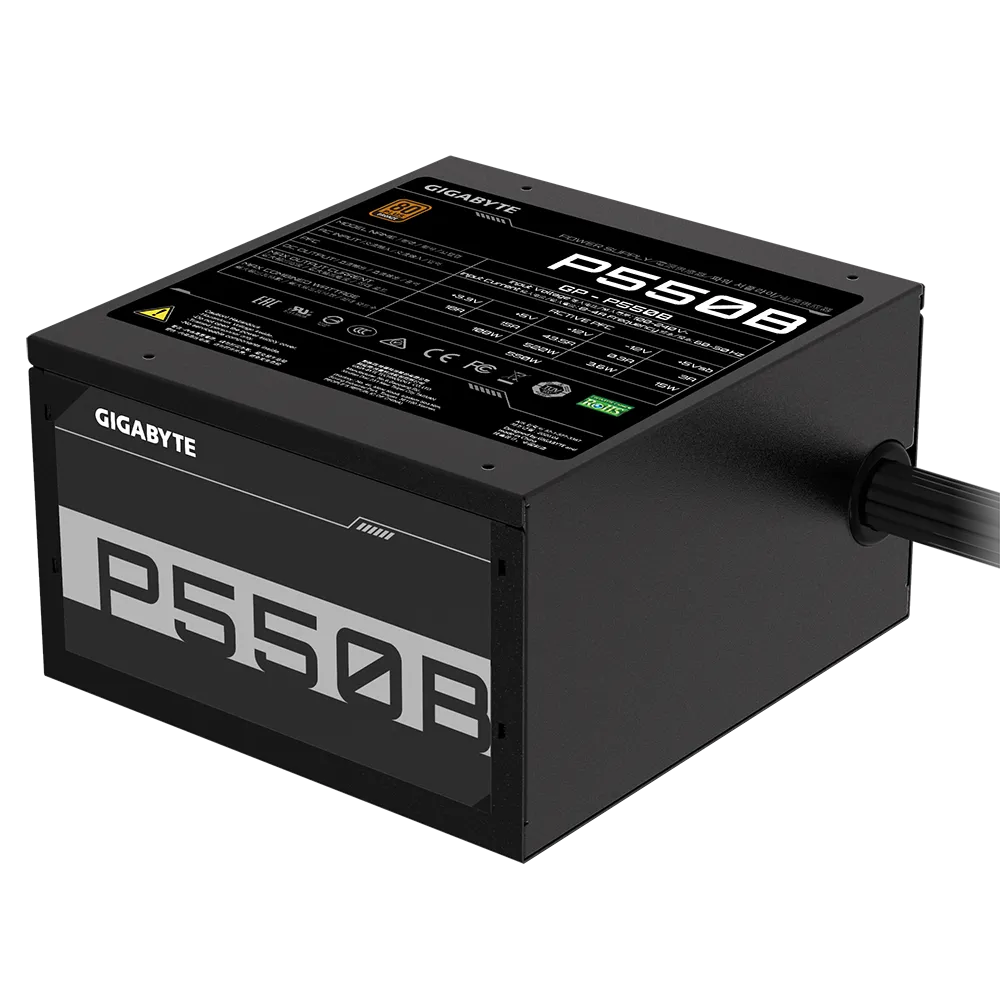

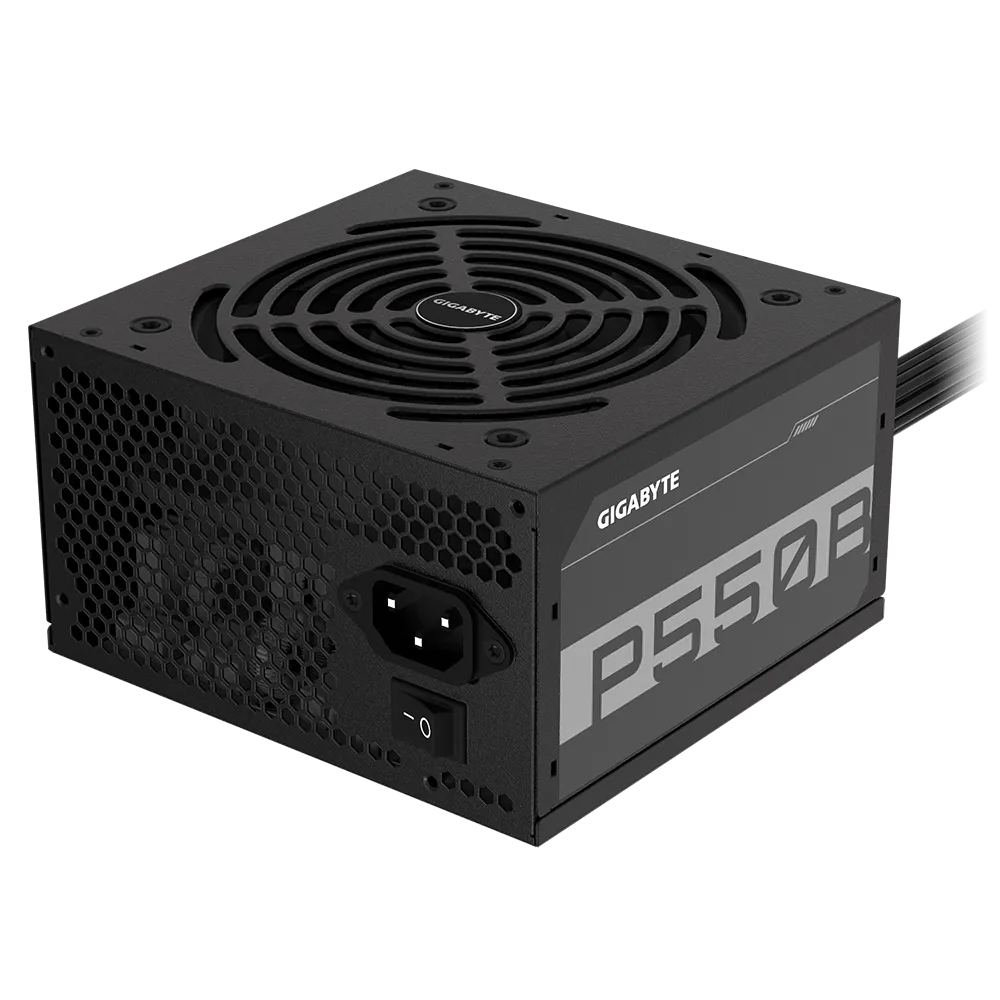

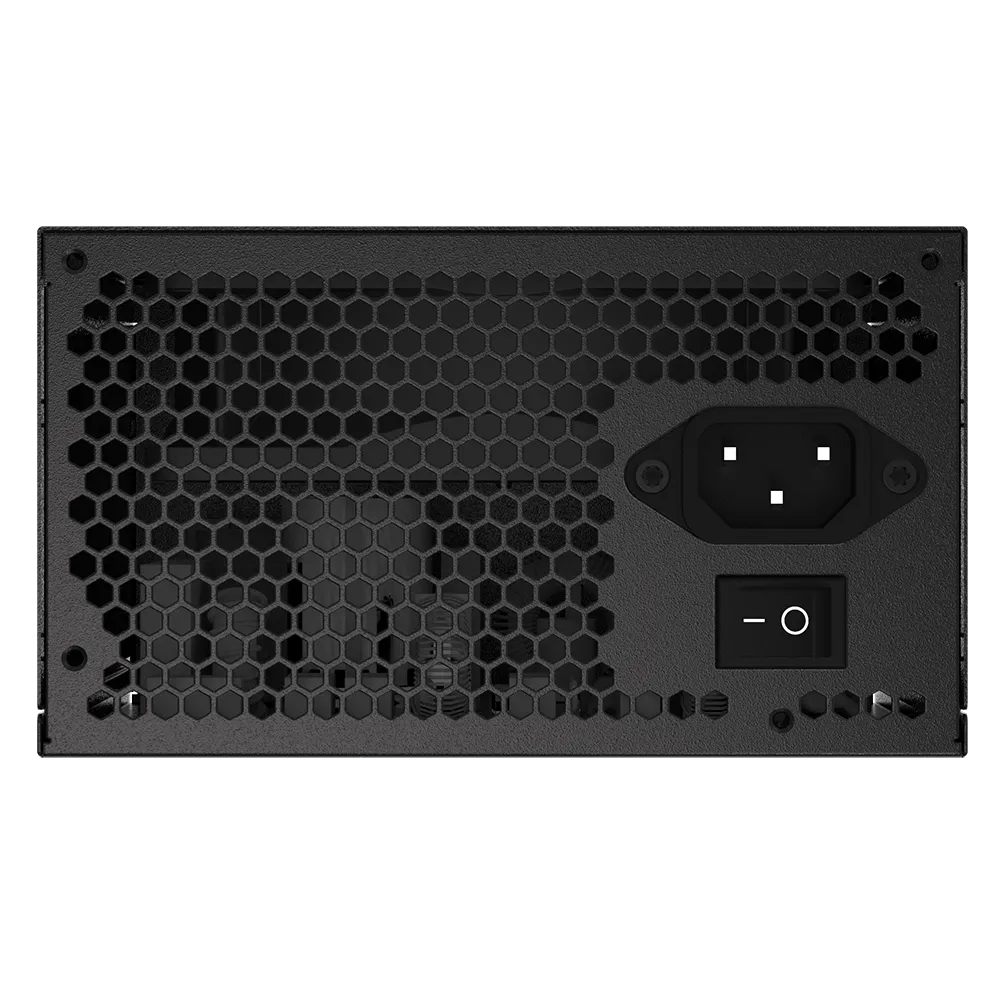

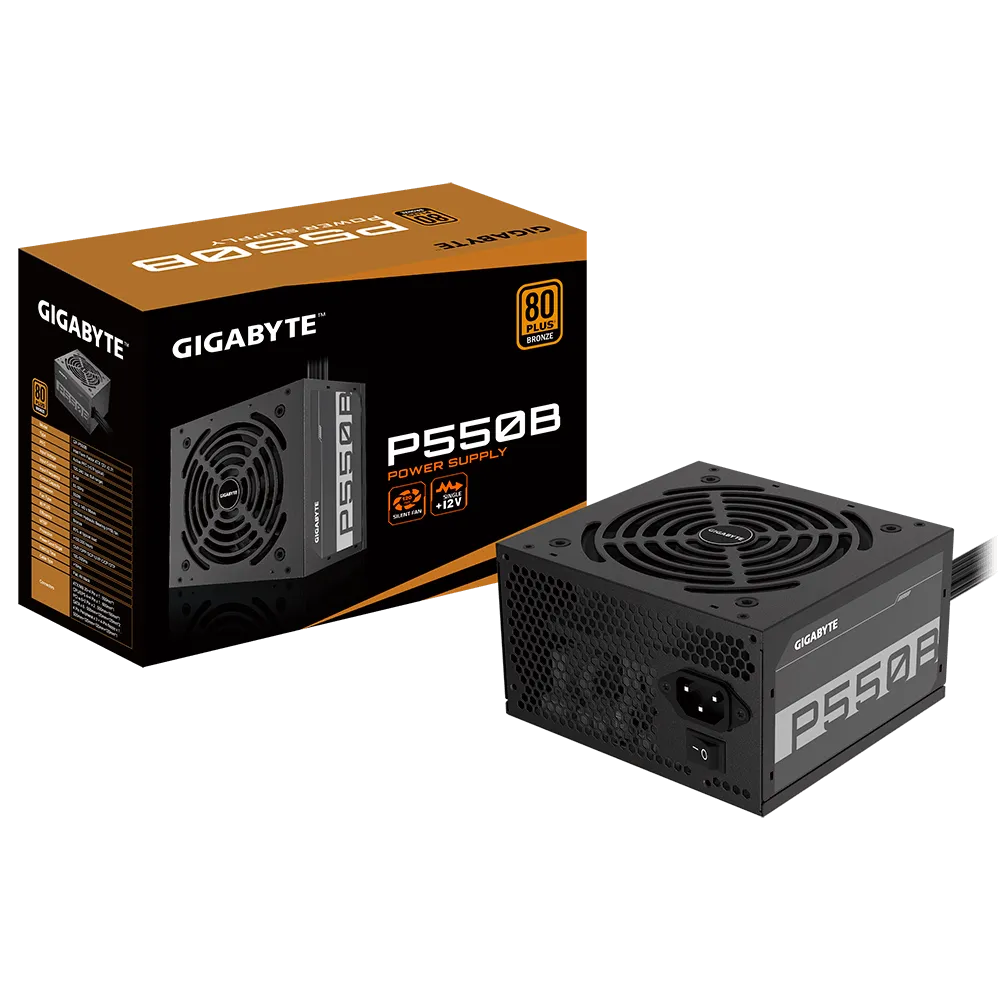

Power Supply GIGABYTE™ P550B 550W 80-Bronze

Key Features:

• 80 PLUS Bronze certified

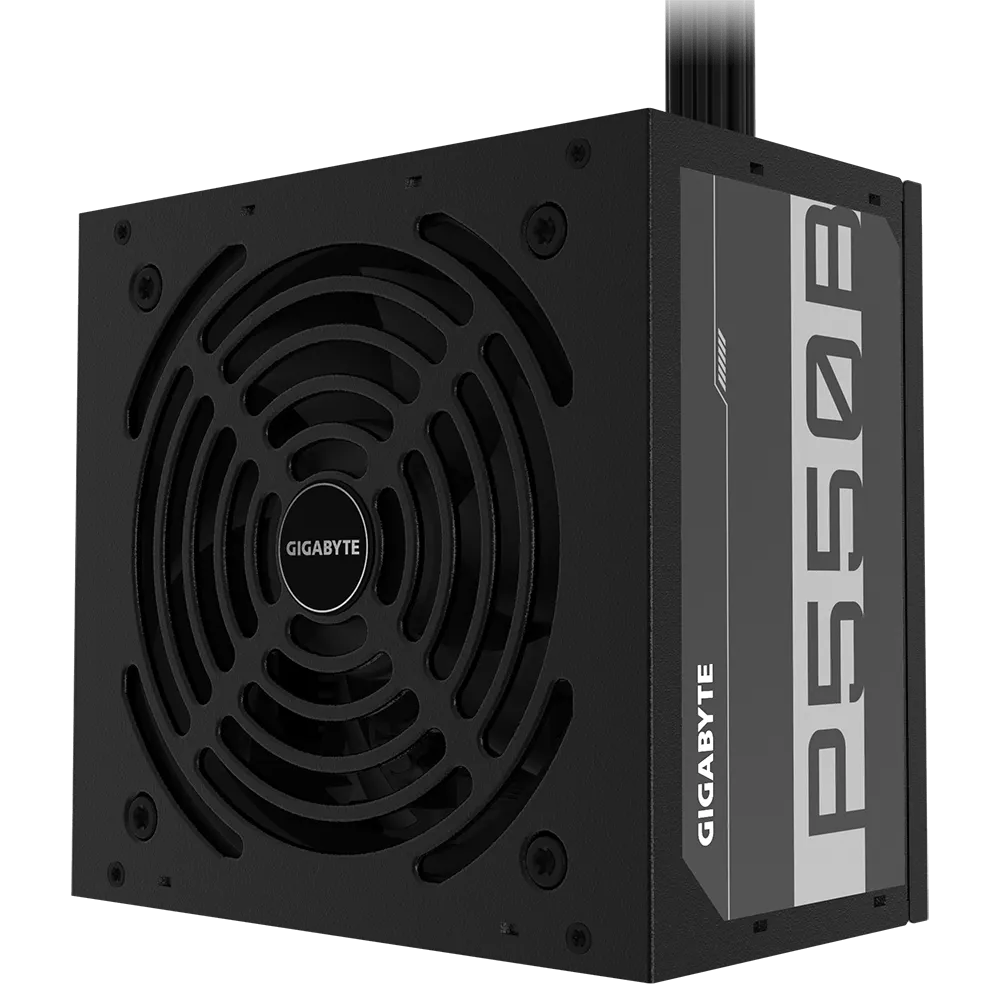

• 120mm Silent Hydraulic Bearing (HYB) Fan
• Reliable flat cable
• Single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 3 years warranty (Adjusted according to different regions)

Specification:

Model	P550B
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC(>0.9 typical)
Input Voltage	100-240 Vac(full range)
Input Current	8-4 A
Input Frequency	60-50 Hz
Output Capacity	550W
Dimension	150 x 140 x 86 mm
Fan Type	120mm Hydraulic Bearing (HYB) Fan
80 PLUS	Bronze
Efficiency	85% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	100-500ms
Hold Up Time	>16ms
Cable Type	Flat, All black
Connectors	ATX/MB 20+4 Pin x 1 : 550mm*1 CPU/EPS 4+4 Pin x 1 : 600mm*1 PCI-e 6+2 Pin x 2 : 550mm+150mm*1 SATA x 6 : 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
