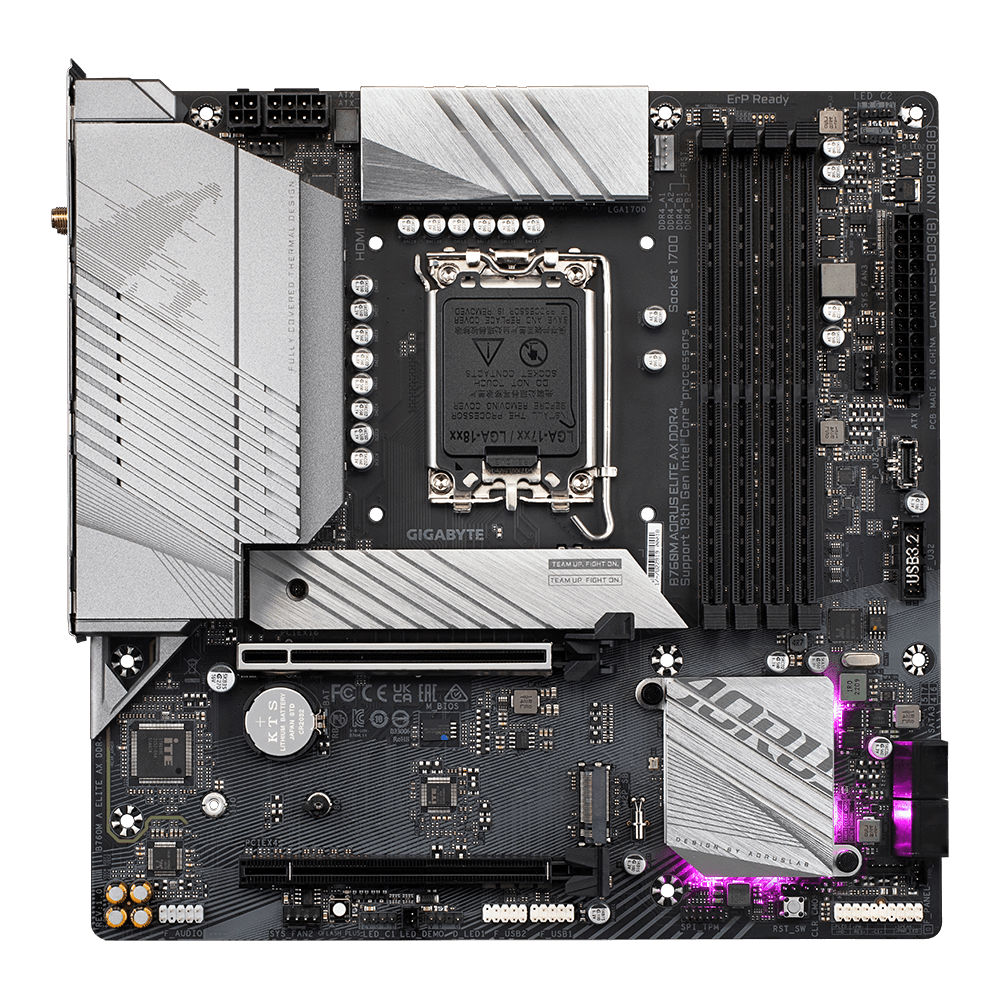

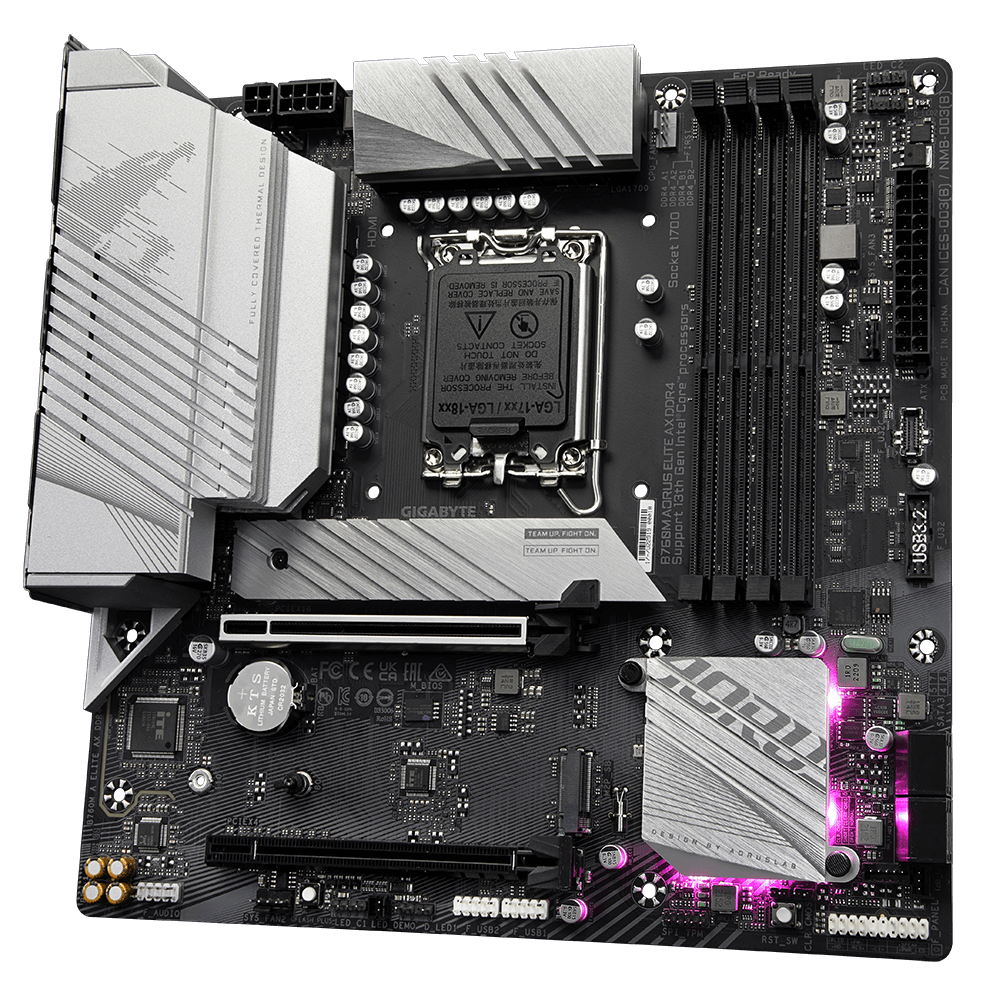

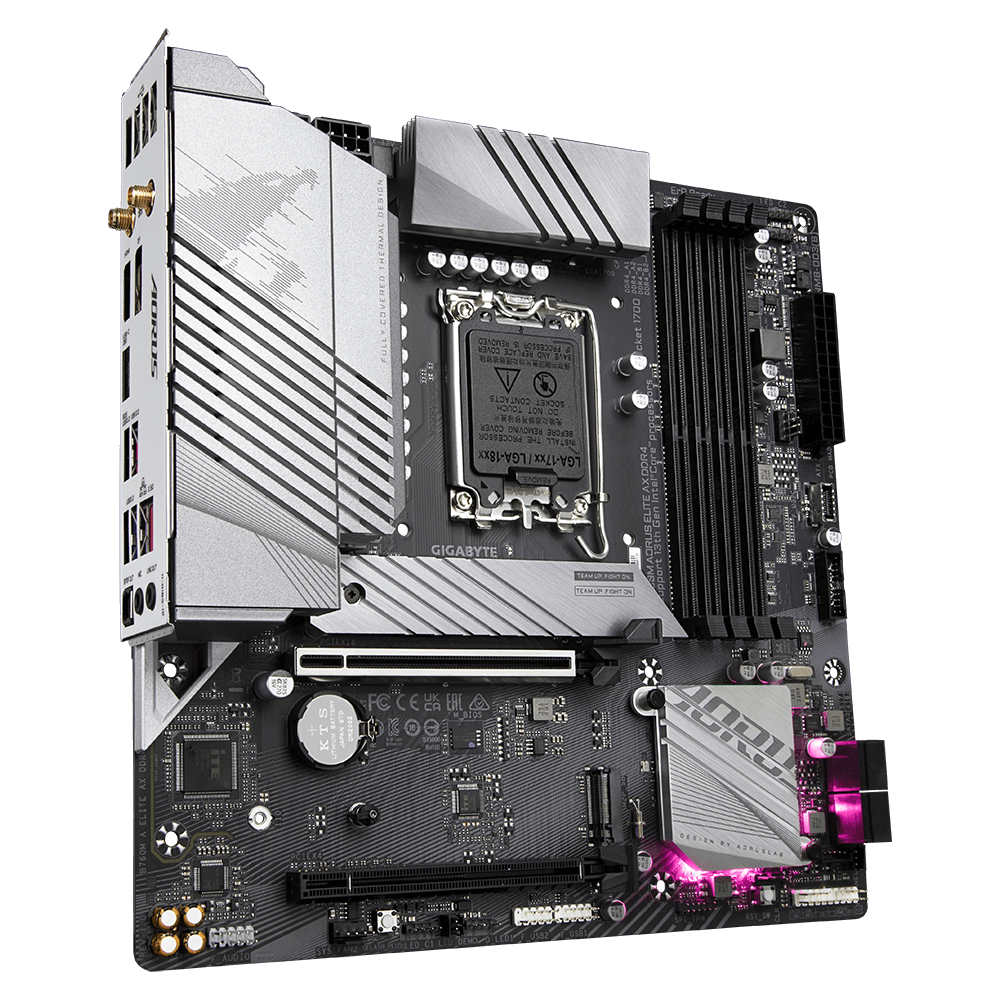

B760M AORUS ELITE AX DDR4 (rev. 1.x)
B760M AORUS ELITE AX DDR4 (rev. 1.x)
B760M AORUS ELITE AX DDR4 (rev. 1.x)
B760M AORUS ELITE AX DDR4 (rev. 1.x)
B760M AORUS ELITE AX DDR4 (rev. 1.x)
B760M AORUS ELITE AX DDR4 (rev. 1.x)
B760M AORUS ELITE AX DDR4 (rev. 1.x)
B760M AORUS ELITE AX DDR4 (rev. 1.x)1 / 7
4.9 (0 Sold)Out Of Stock

B760M AORUS ELITE AX DDR4 (rev. 1.x)

Position:
0
Available:
In Stock
WooCommerce ID:
53997

SPECIFICATIONS

CPU
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  2. L3 cache varies with CPU
Chipset
  1. Intel® B760 Express Chipset
Memory
  1. Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
 Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.2)
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard
Expansion Slots
 CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
 CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
 Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 1 x USB 3.2 Gen 1 port on the back panel
  5. 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 2 x M.2 Socket 3 connectors
  9. 4 x SATA 6Gb/s connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 2 x Thunderbolt™ add-in card connectors
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 1 x Q-Flash Plus button
  18. 1 x reset button
  19. 1 x reset jumper
  20. 1 x Clear CMOS jumper

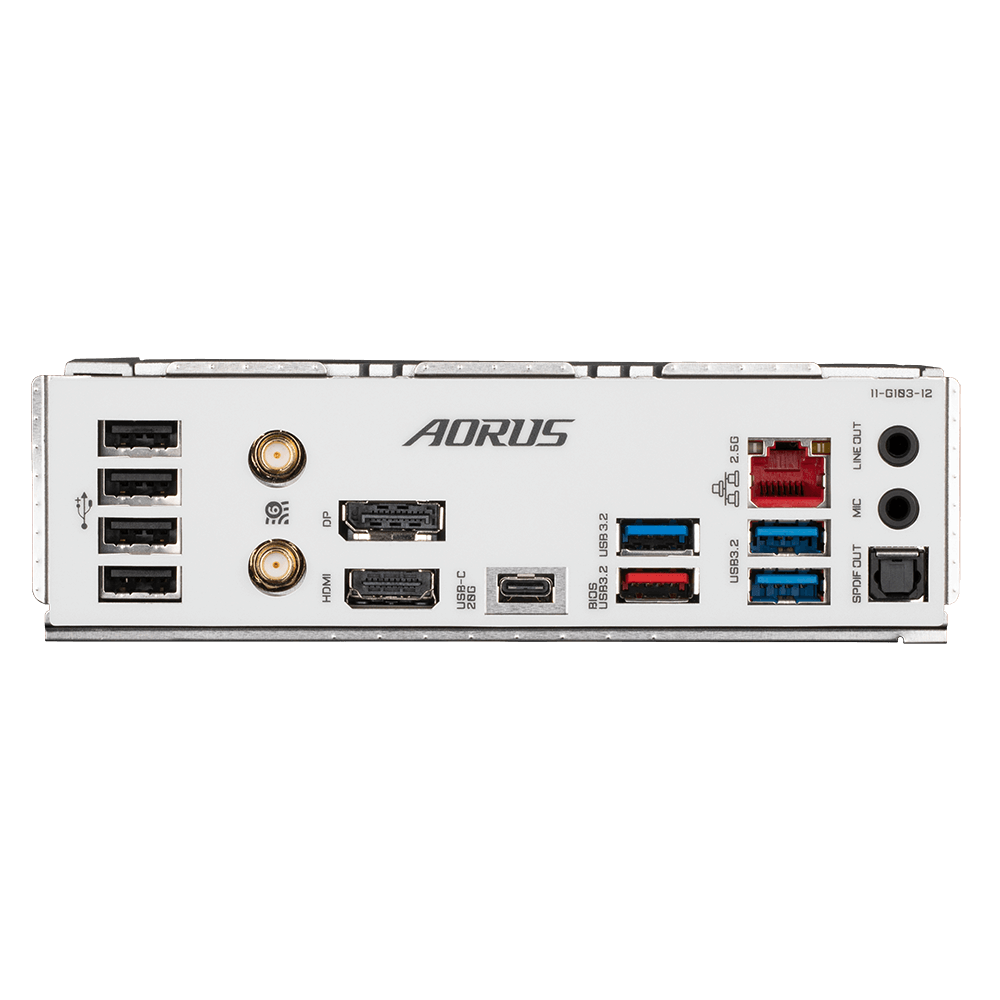

Back Panel Connectors
  1. 2 x SMA antenna connectors (2T2R)
  2. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  3. 1 x USB 3.2 Gen 2 Type-A port (red)
  4. 3 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x HDMI port
  7. 1 x DisplayPort
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 2 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
