Motherboard Gigabyte B650M S2H DDR5 -AMD (rev. 1.0)
5,250 EGP 6,267 EGP

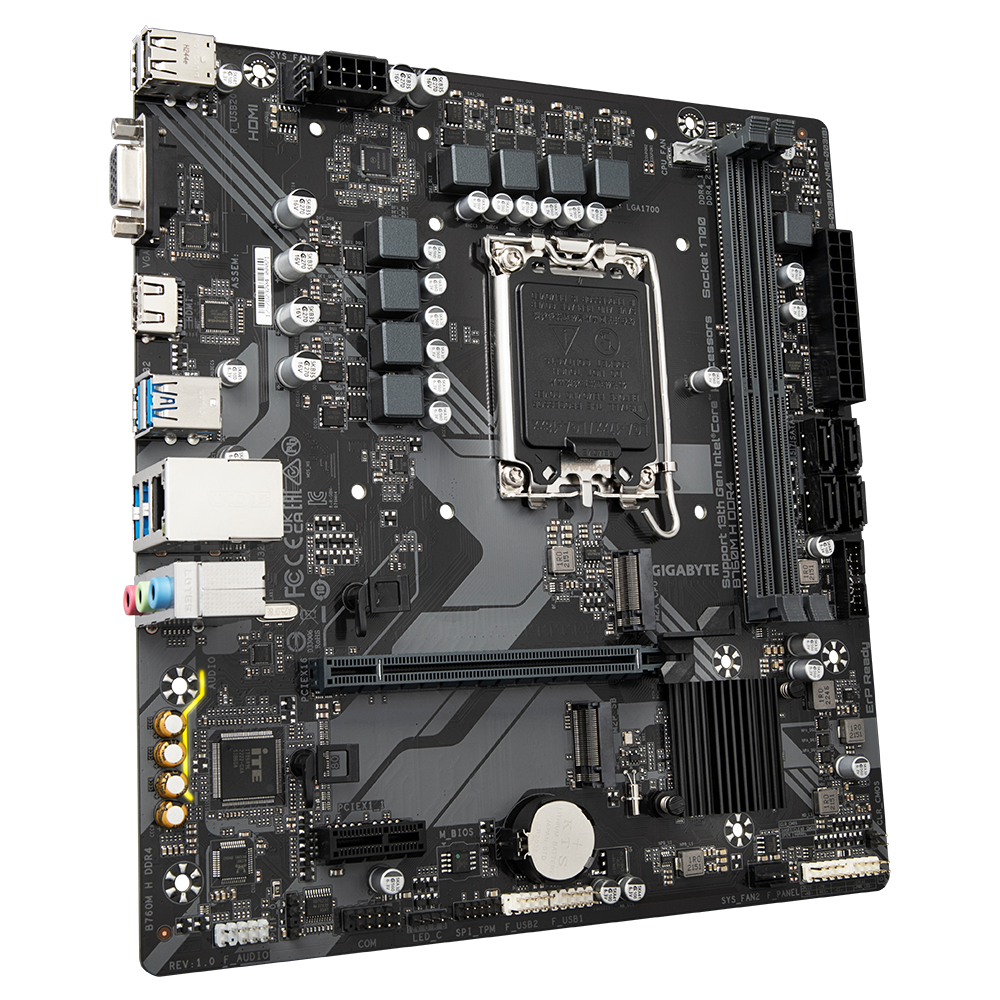

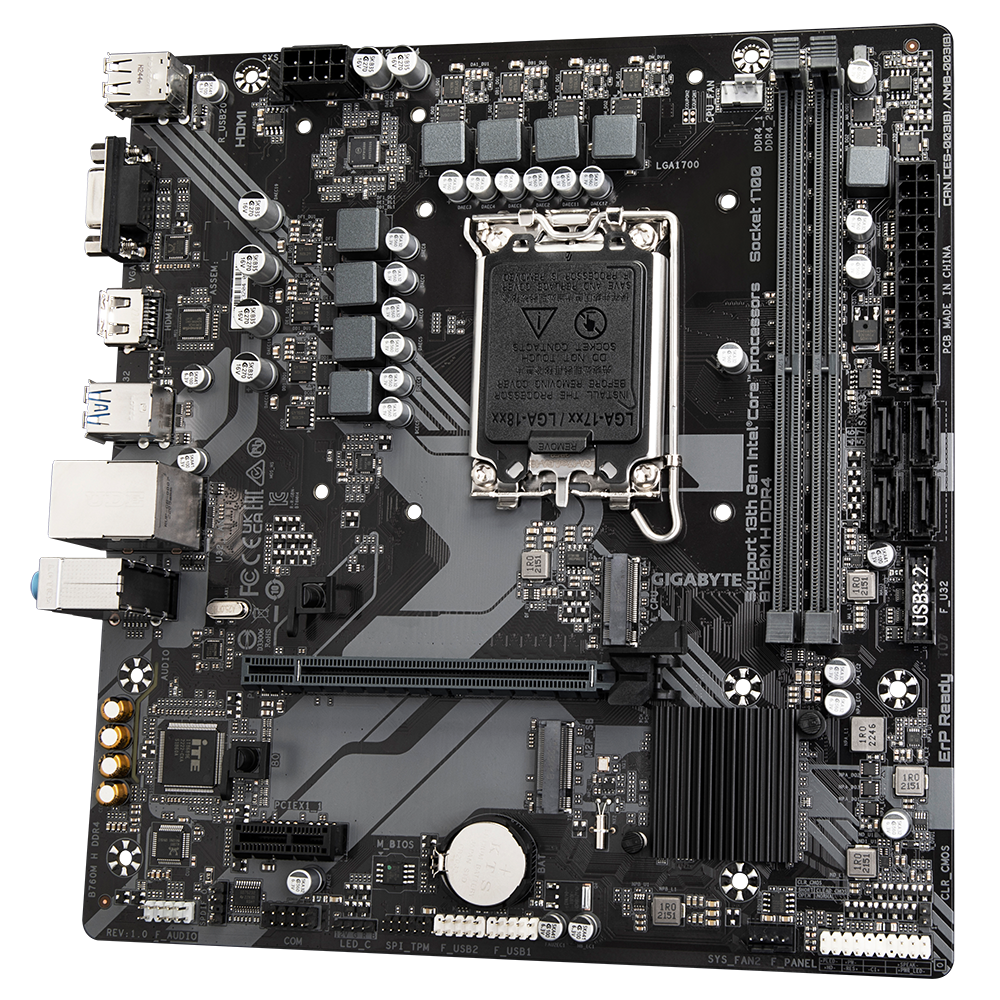

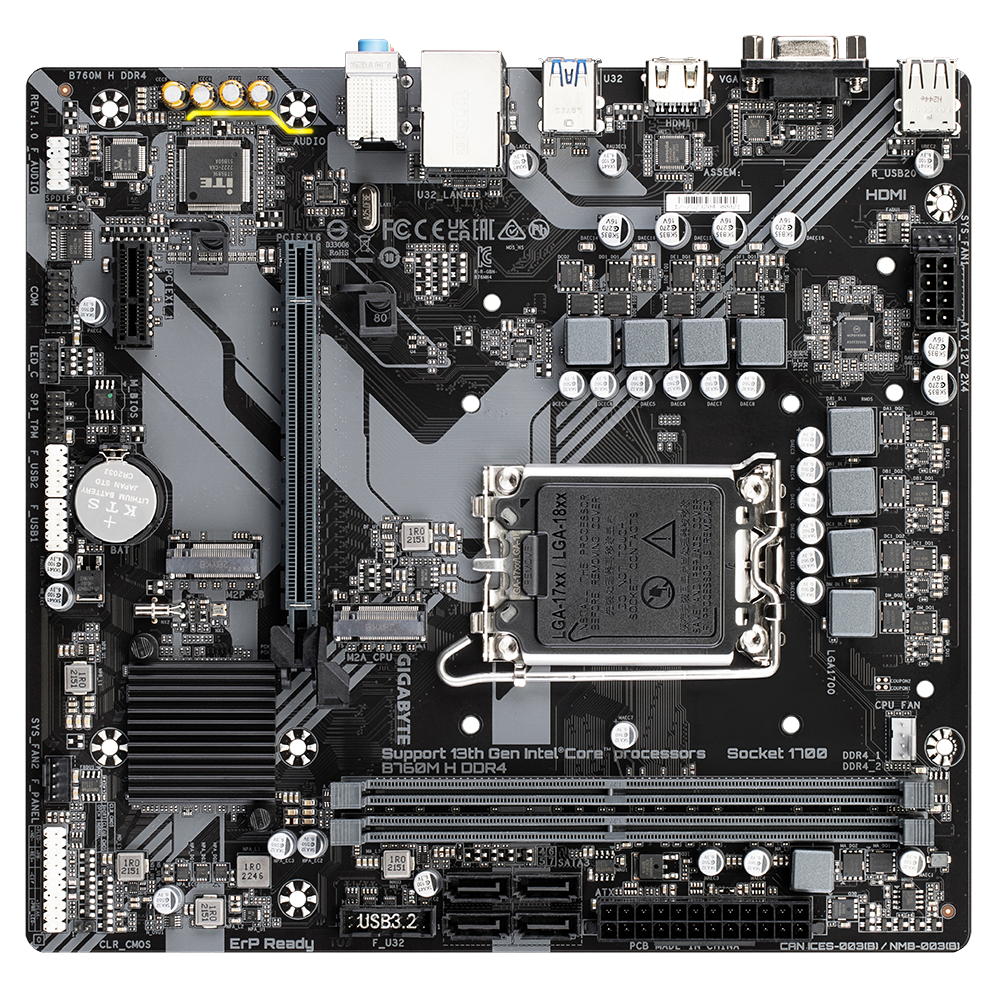

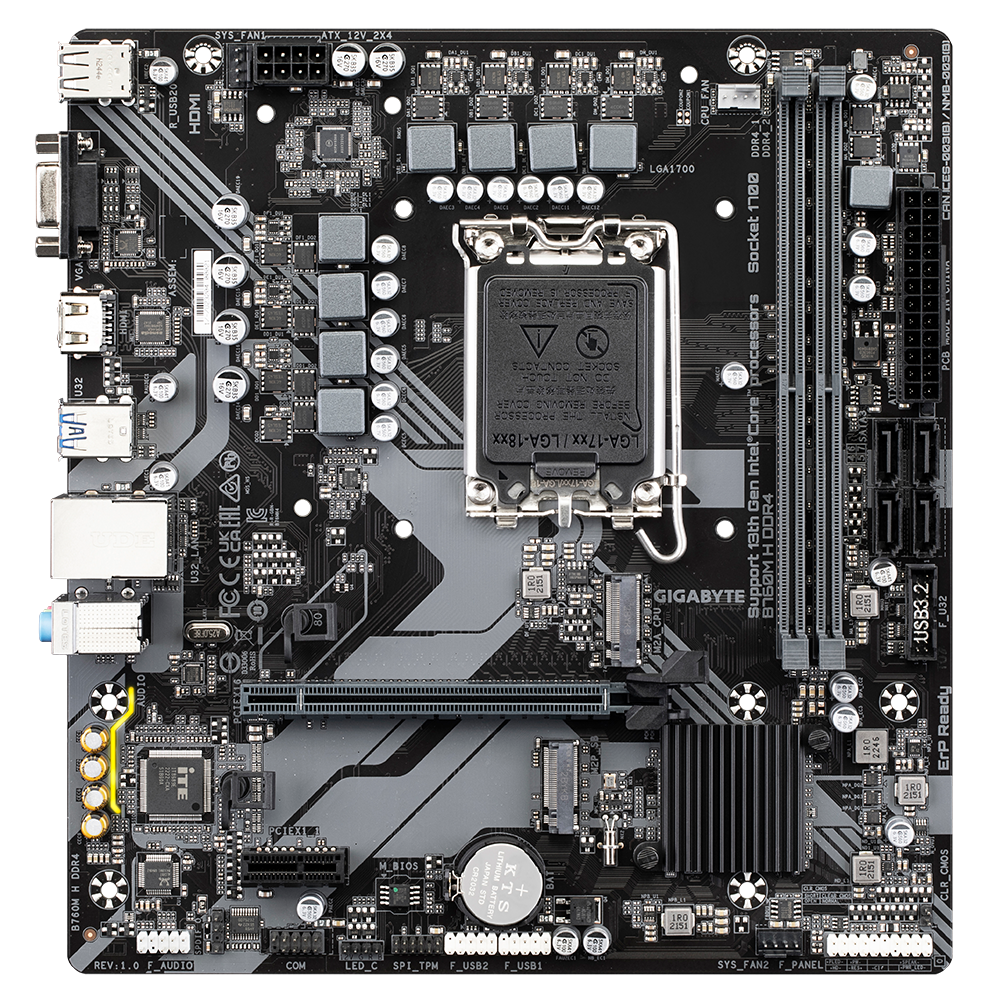

GIGABYTE Motherboard INTEL-B760M H DDR4
- Position:
- 0
- WooCommerce ID:
- 57017
| CPU Socket | LGA1700 |
| Supported Processors | 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| L3 Cache | Varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory Type | DDR4 |
| Supported Speeds | 3200/3000/2933/2666/2400/2133 MT/s |
| Memory Sockets | 2 x DDR4 DIMM sockets |
| Maximum Capacity | Up to 64GB (32 GB single DIMM) |
| Memory Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode) |
| Non-ECC Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Extreme Memory Profile (XMP) |
| Processor Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| D-Sub Port | 1 x D-Sub port (max resolution 1920×1200@60 Hz) |
| HDMI Port | 1 x HDMI port (max resolution 4096×2160@60 Hz) |
| (Supports HDMI 2.1 and HDCP 2.3) | |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | 2/4/5.1/7.1-channel |
| Audio Out | S/PDIF Out support |
| LAN Chip | Realtek® GbE LAN chip |
| LAN Speed | 1 Gbps/100 Mbps |
| PCI Express x16 (CPU) | 1 x PCI Express x16 slot (PCIe 4.0 x16 support) |
| PCI Express x1 (Chipset) | 1 x PCI Express x1 slot (PCIe 3.0 x1 support) |
| M.2 Connectors (CPU) | 1 x M.2 connector (PCIe 4.0 x4/x2 SSD) |
| M.2 Connectors (Chipset) | 1 x M.2 connector (PCIe 4.0 x4/x2 SSD) |
| SATA Connectors | 4 x SATA 6Gb/s connectors |
| RAID Support | RAID 0, RAID 1, RAID 5, and RAID 10 (for SATA devices) |
| USB 3.2 Gen 1 (Chipset) | 6 total ports (4 on back panel, 2 internal) |
| USB 2.0/1.1 (Chipset) | 6 total ports (2 on back panel, 4 internal) |
| ATX Main Power | 1 x 24-pin |
| ATX 12V Power | 1 x 8-pin |
| CPU Fan | 1 header |
| System Fan | 2 headers |
| RGB LED Strip | 1 header |
| M.2 Socket 3 | 2 connectors |
| SATA 6Gb/s | 4 connectors |
| Front Panel Header | 1 header |
| Front Panel Audio | 1 header |
| S/PDIF Out | 1 header |
| USB 3.2 Gen 1 | 1 header (for 2 ports) |
| USB 2.0/1.1 | 2 headers (for 4 ports) |
| TPM Header | 1 header |
| Serial Port | 1 header |
| Clear CMOS Jumper | 1 jumper |
| USB 2.0/1.1 | 2 ports |
| D-Sub | 1 port |
| HDMI | 1 port |
| USB 3.2 Gen 1 | 4 ports |
| RJ-45 | 1 port |
| Audio Jacks | 3 jacks |
| I/O Controller | iTE® I/O Controller Chip |
| BIOS | 1 x 128 Mbit flash, AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX (23.0cm x 21.5cm) |
Similar Products
Shop the latest featured products and new arrivals
Motherboard Gigabyte B760 DS3H AX DDR4 INTEL
6,500 EGP 7,500 EGP
GIGABYTE Motherboard B650 EAGLE AX
9,450 EGP 11,269 EGP
GIGABYTE Z790 AORUS PRO X 1.0
22,499 EGP 25,999 EGP
GIGABYTE B650M AORUS ELITE AX ICE
10,449 EGP 12,099 EGP
Z790 AORUS ELITE AX (rev. 1.0) rev. 1.x
14,999 EGP 17,600 EGP
B760M AORUS ELITE AX DDR4 (rev. 1.x)
8,800 EGP 11,200 EGP

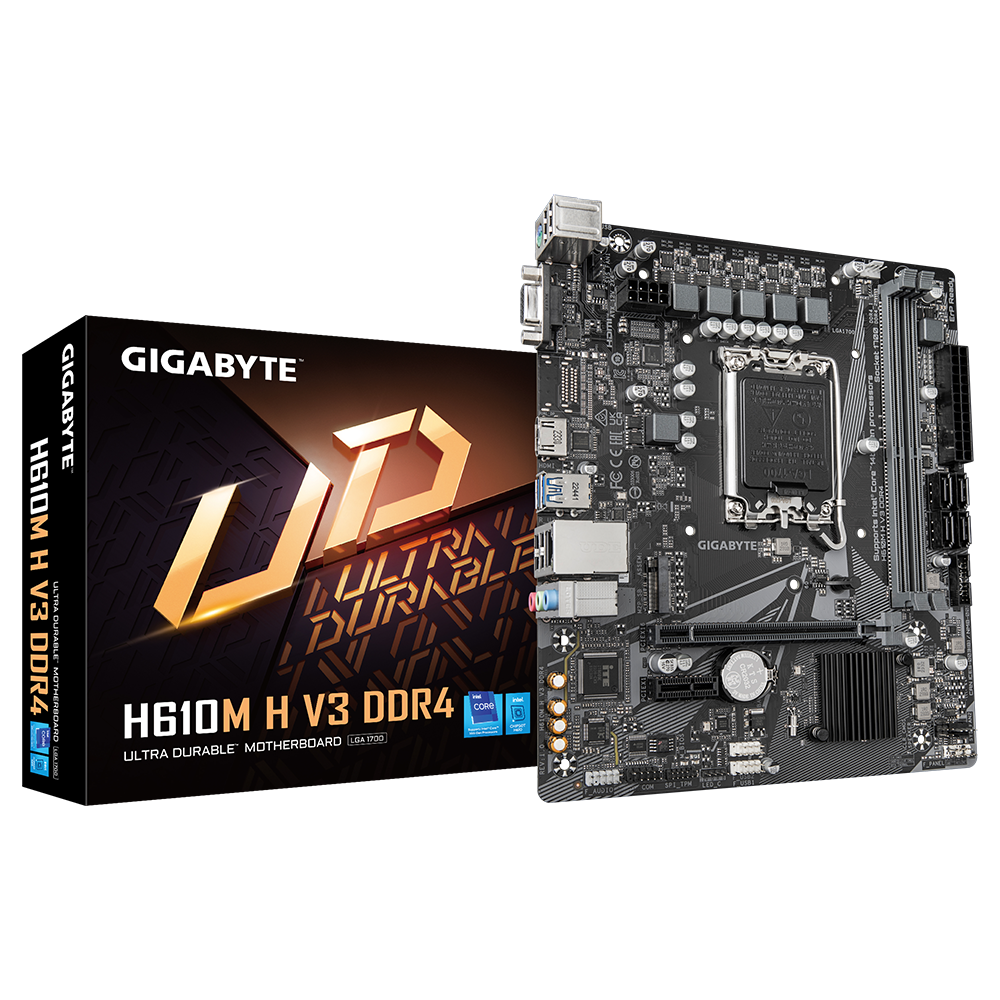

H610M H V3 DDR4 (rev. 1.0)
