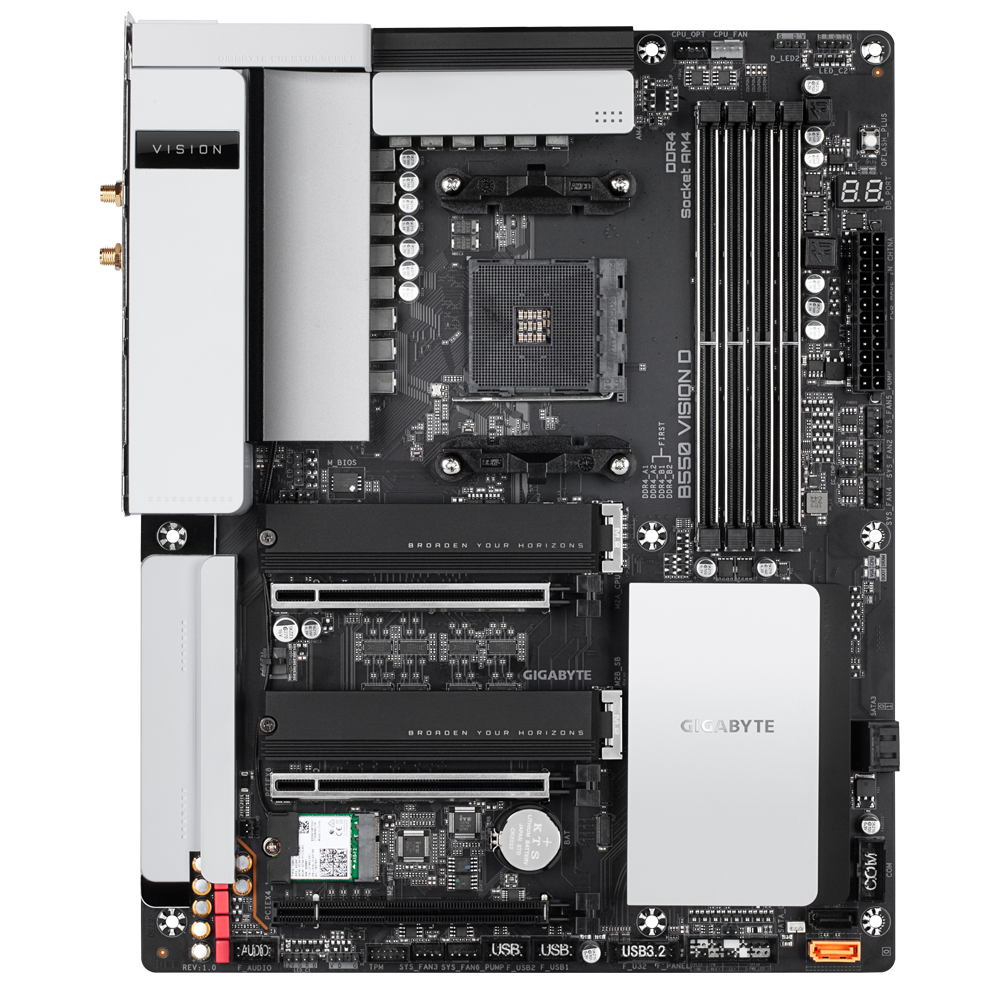

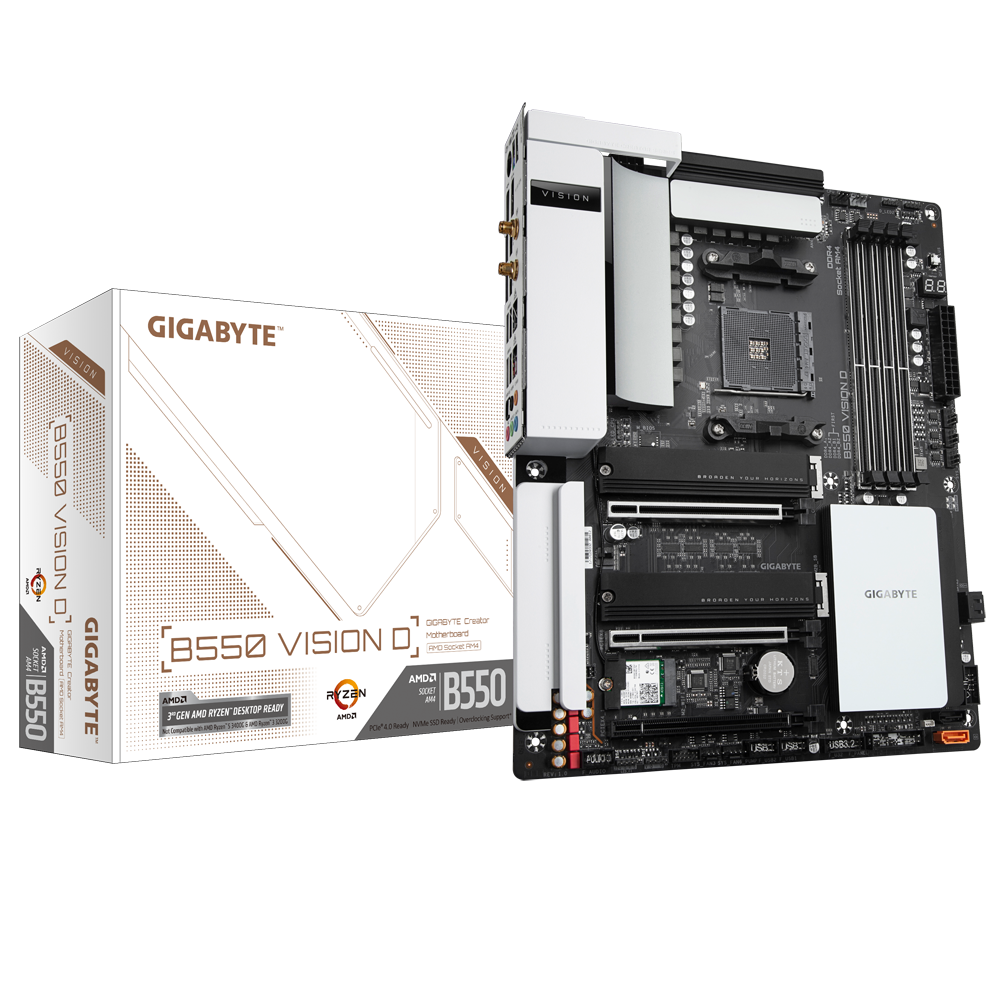

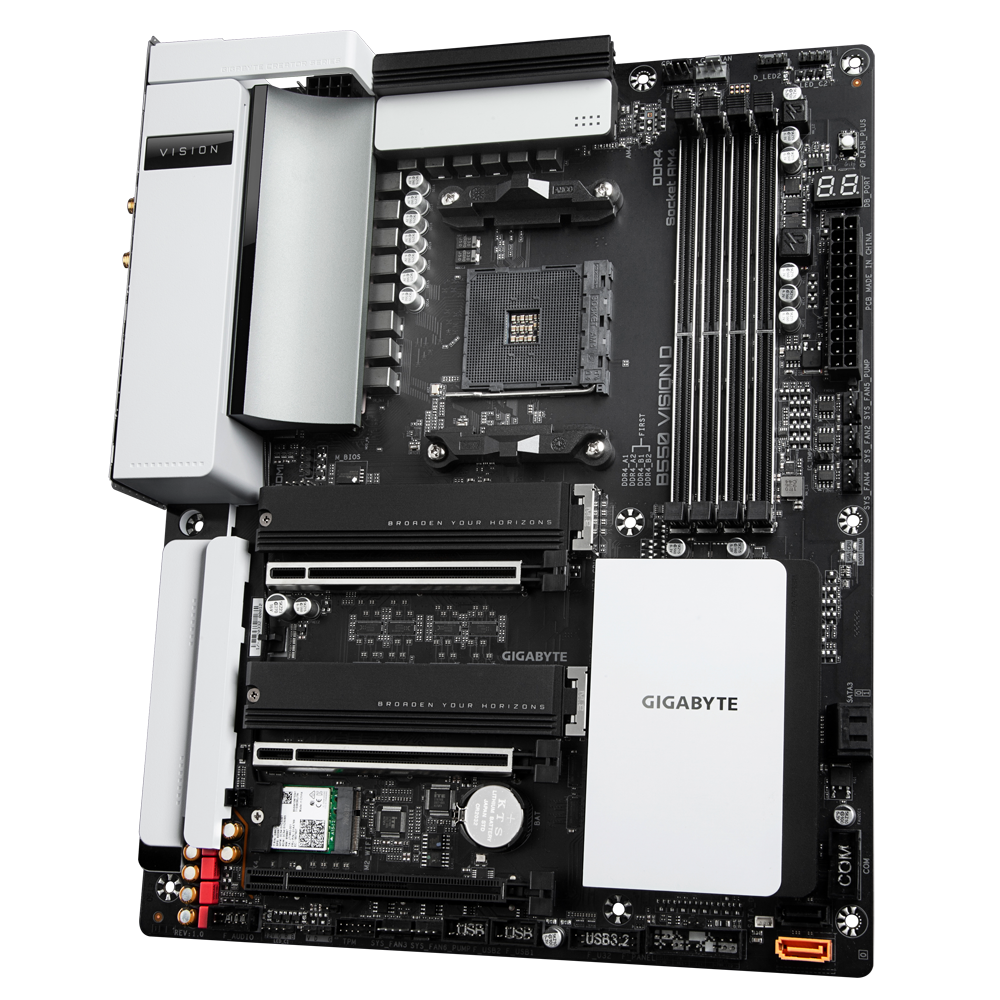

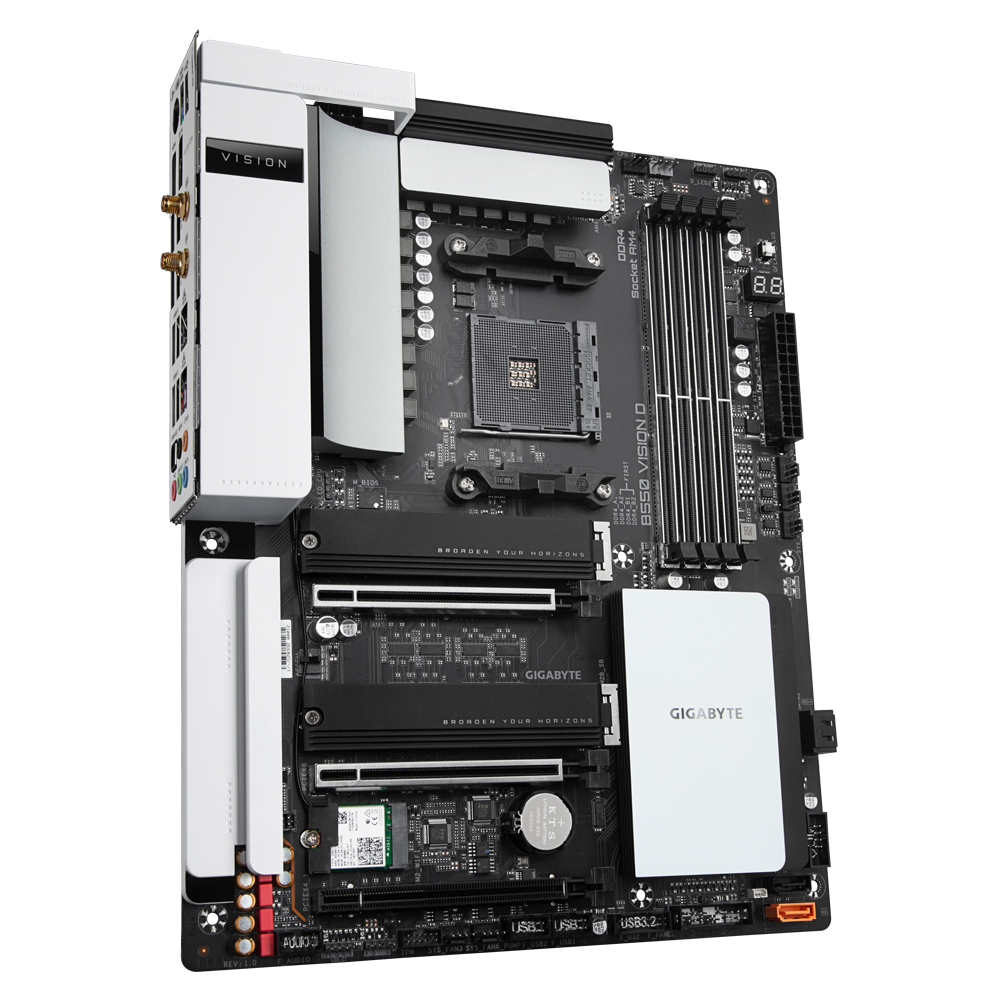

GIGABYTE B550 VISION D (rev. 1.0)

GIGABYTE B550 VISION D  (rev. 1.0) AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors

---

GIGABYTE B550 VISION D

AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Gen Ryzen™ with Radeon™ Graphics processors

---

GIGABYTE B550 VISION D Chipset:

• AMD B550

---

Memory

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• AMD Ryzen™ 5000 series processors:Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• 3rd Gen AMD Ryzen™ Processors:Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
•  AMD Ryzen™ with Radeon™ Graphics processors:Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

---

Onboard Graphics

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors + Intel® Thunderbolt™ 3 Controller:

• 2 x Intel®Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp* Because of the limited I/O resources of the PC architecture
• the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-6, "Back Panel Connectors," for more information.)* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

---

Audio

• Realtek®ALC1220-VB codec* The back panel line out jack supports DSD audio.
• Support for DTS:X®Ultra
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

---

LAN

• 2 x Intel®GbE LAN chips (1000 Mbit/100 Mbit)

---

Wireless Communication module

Intel® Wi-Fi 6 AX200

• WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.

---

Expansion Slots

• 1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
• 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
• 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x8 mode
• 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x8 mode* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
• 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
• Supporting PCIe 3.0 x4 mode* The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.

---

Multi-Graphics Technology

• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

---

Storage Interface

• 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
• 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
• 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
• Supporting SATA and PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset:
• Support for RAID 0, RAID 1, and RAID 10

---

USB

Integrated in the CPU:

1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+Intel® Thunderbolt™ 3 Controller:

2. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
5. 1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

6. 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

---

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
•  8-pin ATX 12V power connector
•  CPU fan header
• water cooling CPU fan header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
•  addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x SATA DOM power connector
•  front panel header
• 1X front panel audio header
•  USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
•  Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x serial port header
•  Clear CMOS jumper
• 2 x temperature sensor headers
• 1 x Q-Flash Plus button

---

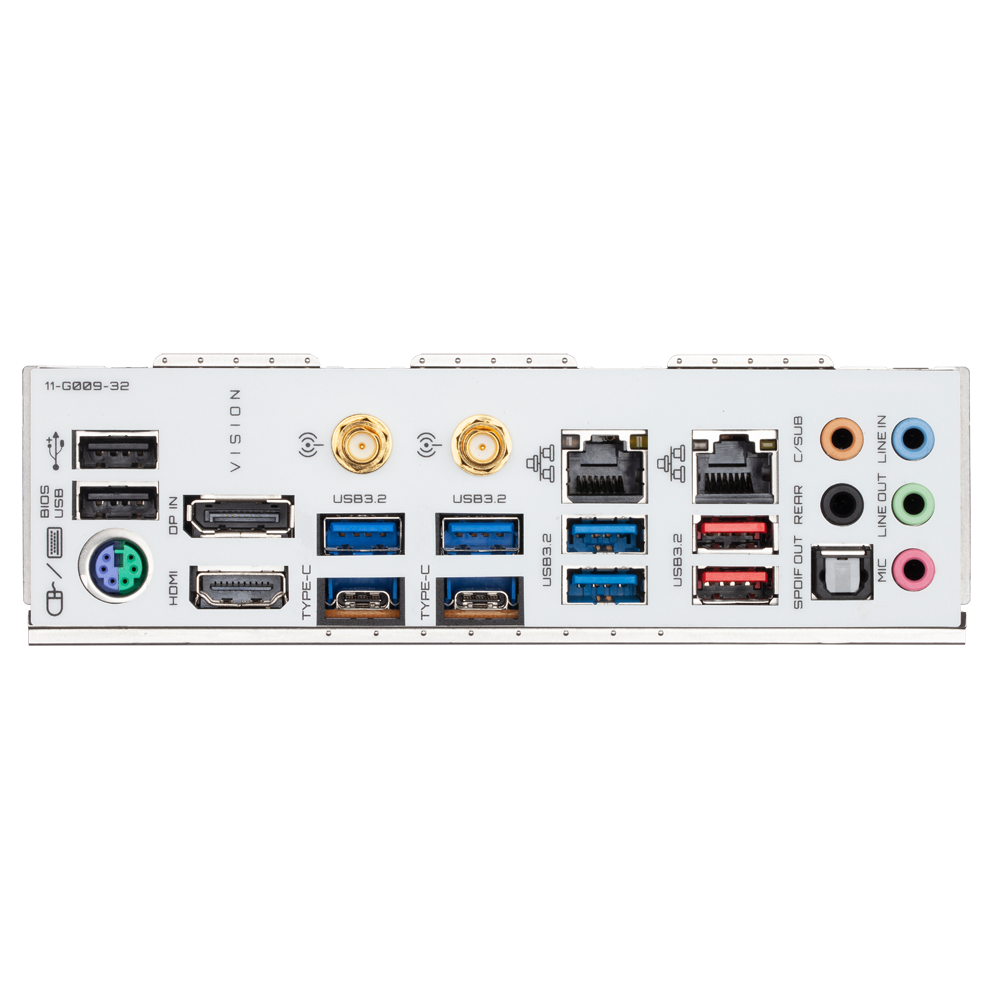

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
•  DisplayPort In port
• 1 x HDMI port
• 2 x SMA antenna connectors (2T2R)
• USB 3.2 Gen 2 Type-A ports (red)
• 2 x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
•  RJ-45 ports
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

---

I/O Controller

• iTE®I/O Controller Chip

---

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

---

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

---

Unique Features

• Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash Plus
• BIOS Easy Tune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer
• Support for Express Install

---

Bundled Software

• Norton®Internet Security (OEM version)
• cFosSpeed

---

Operating System

• Support for Windows 10 64-bit

---

Form Factor

• ATX Form Factor; 30.5cm x 24.4cm

---
