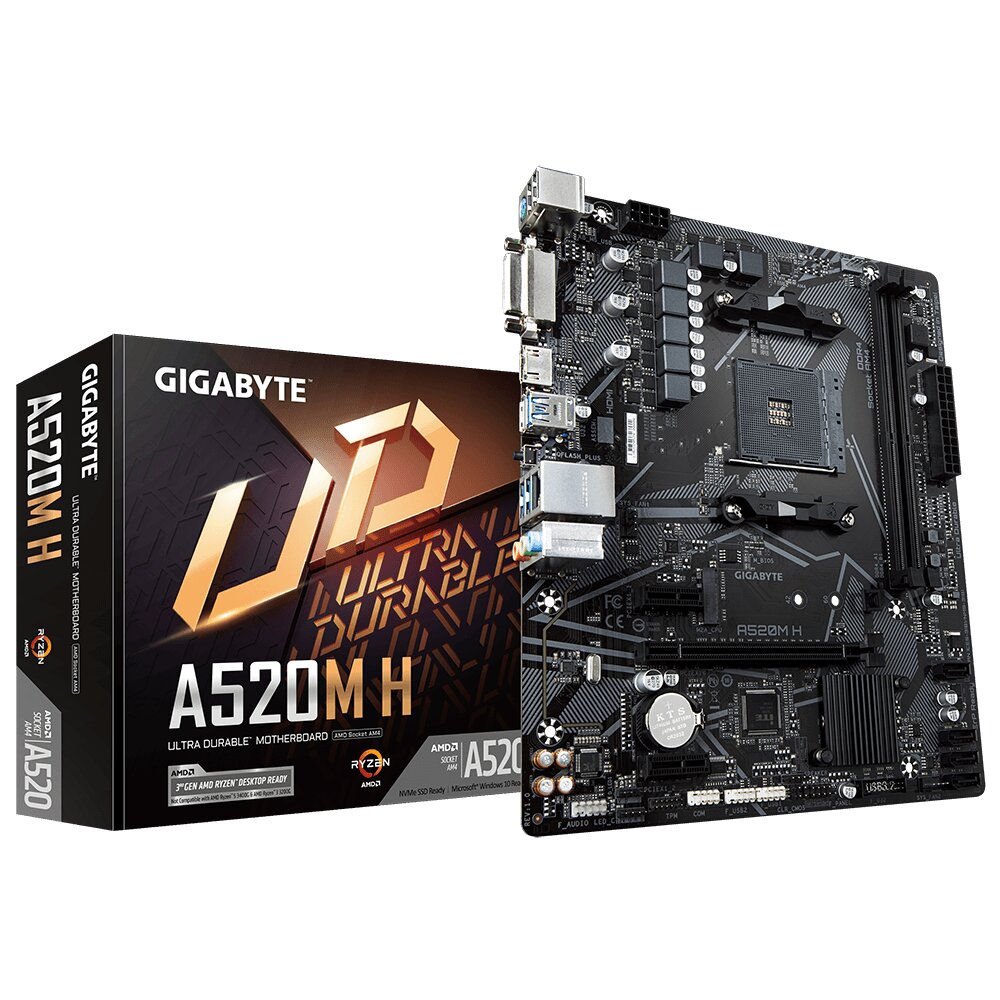

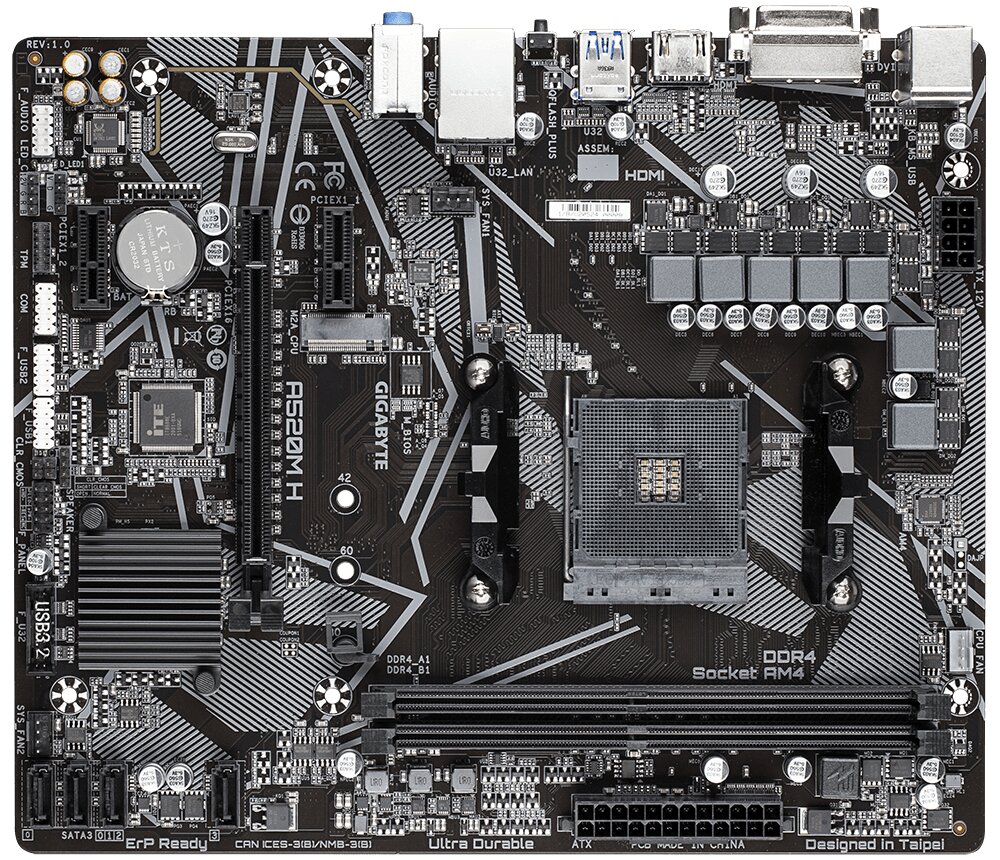

MB GIGABYTE A 520 MH AMD (rev. 1.x)

MB GIGABYTE A 520 MH AMD (rev. 1.x), MB GIGABYTE A520MH uses such special design motherboards of PWM + Low RDS digital model. The motherboard also comes with a MOSFETs design to support AMD 3rd Gen AMD Ryzen in order to provide stunning accuracy, by providing a modified system performance that has the potential to eventually develop the devices.

MB GIGABYTE A 520 MH

• Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
• Dual Channel ECC / Non-ECC Unbuffered DDR4, 2 DIMMs
• 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card
• Anti-Sulfur Resistors Design

MB GIGABYTE A520MH Specification

CPU: AMD Socket AM4, support for AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors.

---

Chipset:  AMD A520

---

MB GIGABYTE A520MH Memory:

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• AMD Ryzen™ 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture:

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
•  non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

---

LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

---

Storage Interface:

CPU:

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, and RAID 10

---
