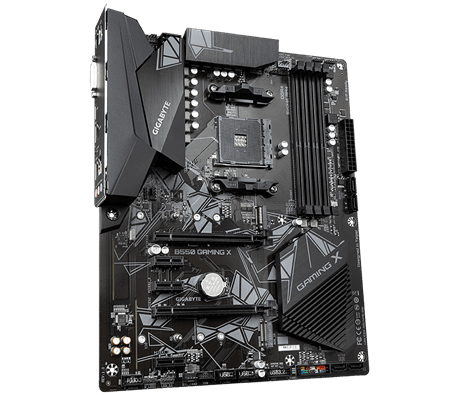

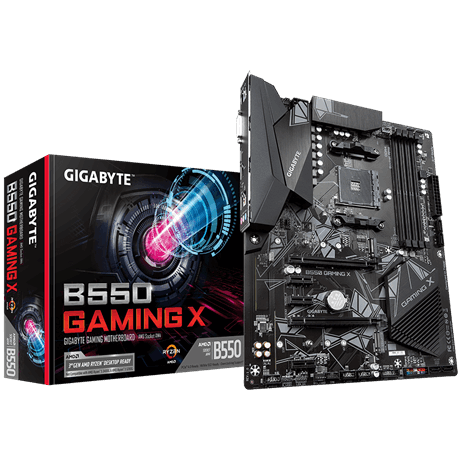

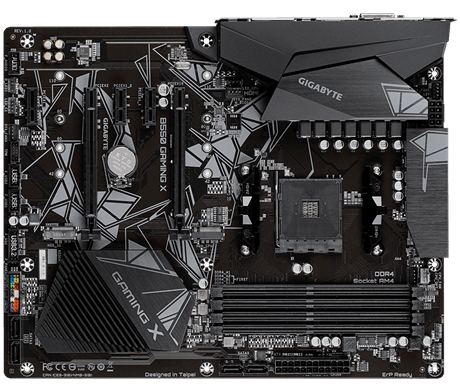

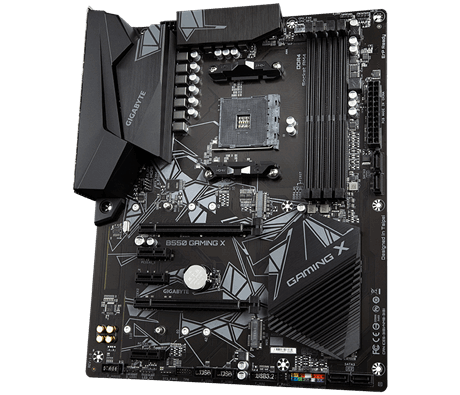

MB GIGABYTE B550 GAMING X (rev. 1.0)

Weight:: 1
Position:: 0
WooCommerce ID:: 8339

MB GIGABYTE B550 GAMING X with Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 4.0/3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design

MB GIGABYTE B550 GAMING X

Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Slots
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

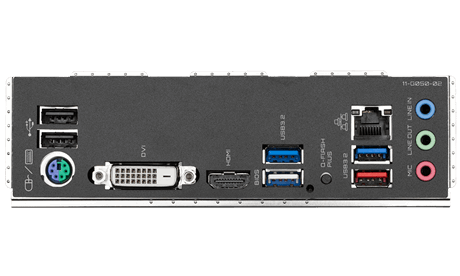

HDMI, DVI-D Ports for Multiple Display
Features high quality audio capacitors
RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

MB GIGABYTE B550 GAMING X Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB

Audio:

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
