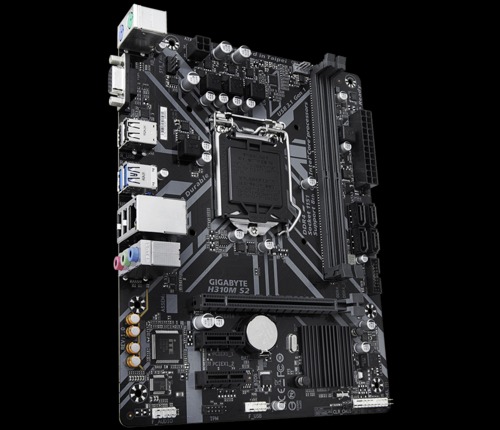

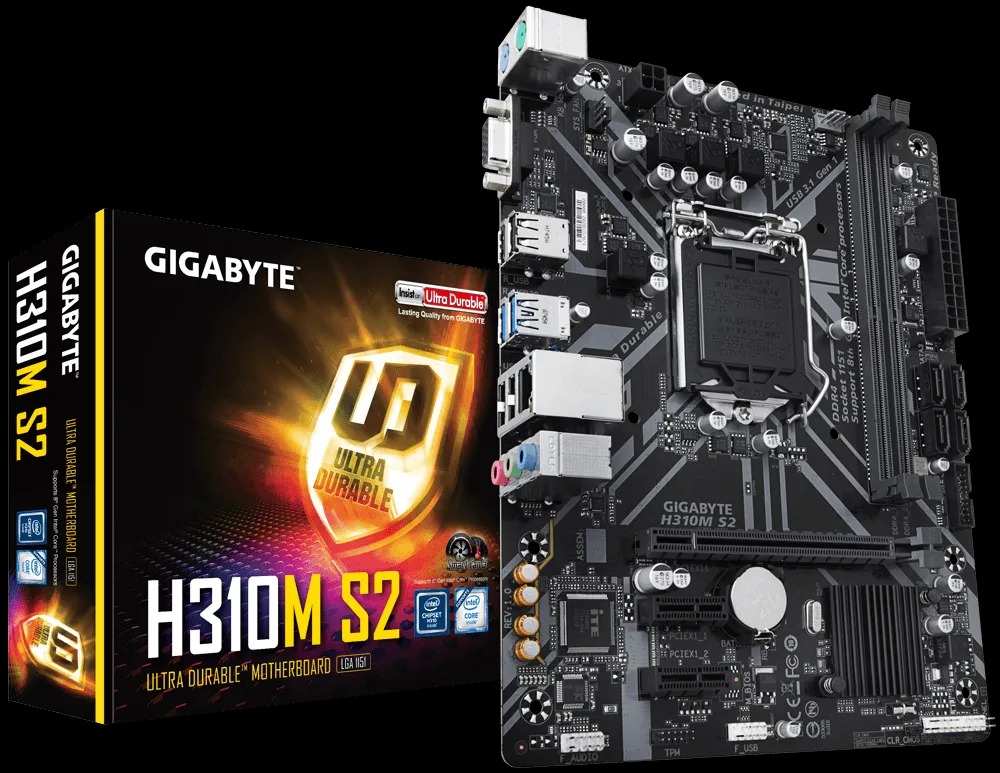

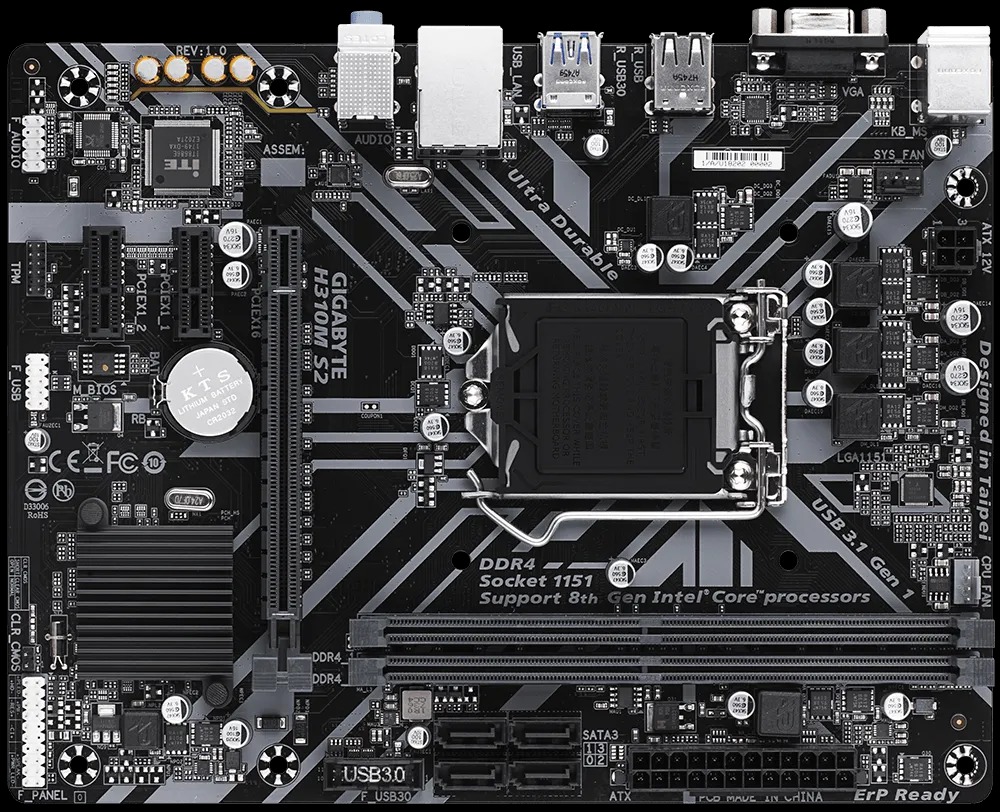

MB GIGABYTE H310M S2 INTEL (rev. 1.0)

MB GIGABYTE H310M S2 INTEL,

MB GIGABYTE H310M S2 INTEL Features:

• Supports 9th and 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4
• 8-Channel HD Audio with High Quality Audio Capacitors
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• CEC 2019 Ready, Save Power With a Simple Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• All new GIGABYTE™ APP Center, simple and easy use
• Anti-Sulfur Resistors Design

---

MB GIGABYTE H310M S2 INTEL Specification:

CPU

• Support for 9th and 8th Generation Intel® Core™ i9 processors.
• Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®
• processors/Intel® Celeron® processors in the LGA1151 package
• L3 cache varies with CPU

---

Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• Maximum shared memory of 1 GB

---

Audio

• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel

---

Expansion Slots

1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots

---

Storage Interface:

Chipset: 4 x SATA 6Gb/s connectors

---

USB

Chipset: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

---

Internal I/O Connectors

•  24-pin ATX main power connector
• 4-pin ATX 12V power connector
•  SATA 6Gb/s connectors
•  CPU fan header
•  system fan header
•  panel header
•  front panel audio header
• 1 x USB 3.1 Gen 1 header
•  USB 2.0/1.1 headers
•  Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
•  Clear CMOS jumper

---

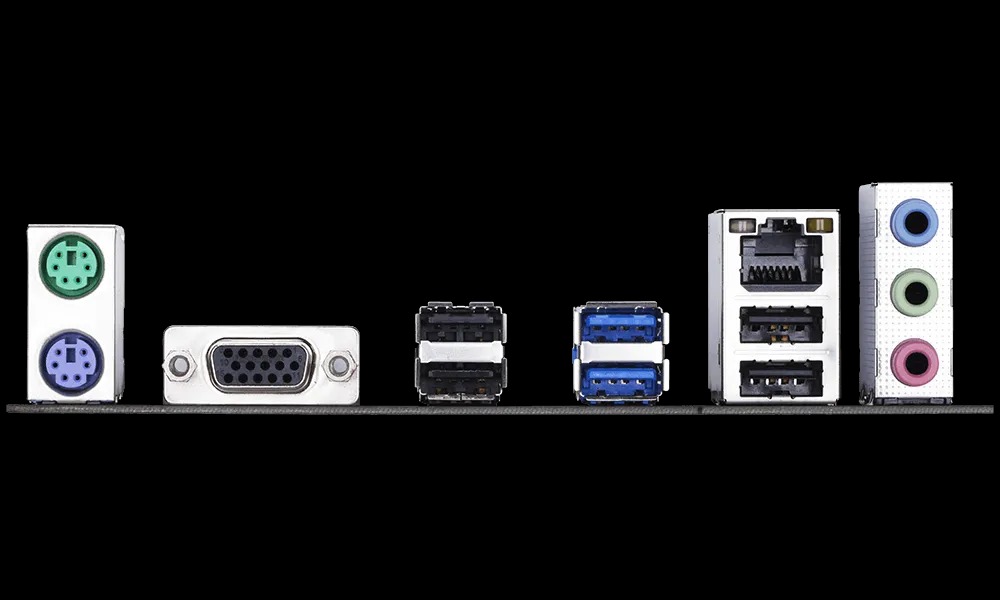

Back Panel Connectors:

• 1 x PS/2 keyboard port
• PS/2 mouse port
•  D-Sub port
• USB 3.1 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• RJ-45 port
•  audio jacks

---

I/O Controller:

iTE® I/O Controller Chip

---

H/W Monitoring:

• Voltage detection
• Fan speed control
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning

---

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

---

Unique Features:

Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• 3D OSD
• @BIOS
• AutoGreen
• Cloud Station
• Smart Keyboard
• Fast Boot
• Game Boost
• Smart TimeLock
• EasyTune
• Platform Power Management
• Smart Backup
• ON/OFF Charge
• Smart HUD
• System Information Viewer
• USB Blocker
• Support for Xpress Install
• V-Tuner
• Support for Q-Flash

---

Bundled Software:

Norton® Internet Security (OEM version)

---

Operating System:

Support for Windows 10 64-bit

---
