AMD RYZEN 5 5600 GT BOX - B550M DS3H - Crucial 16GB DDR4-3200 UDIMM - WD BLUE SN580 NVME SSD PCI GEN4 500G
17,525 EGP

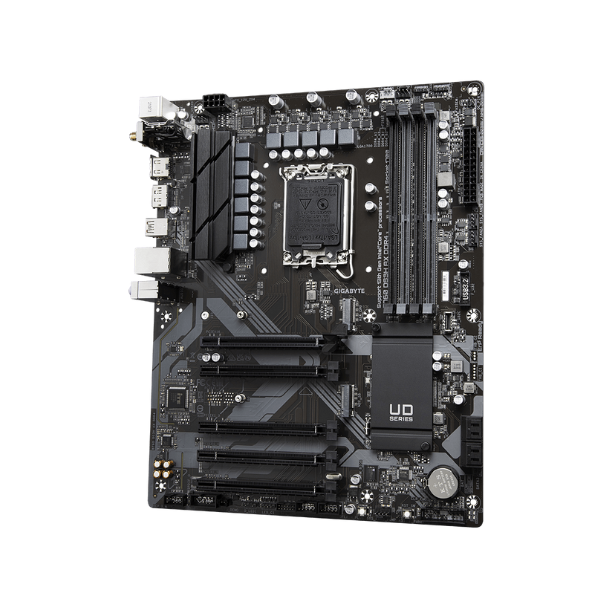

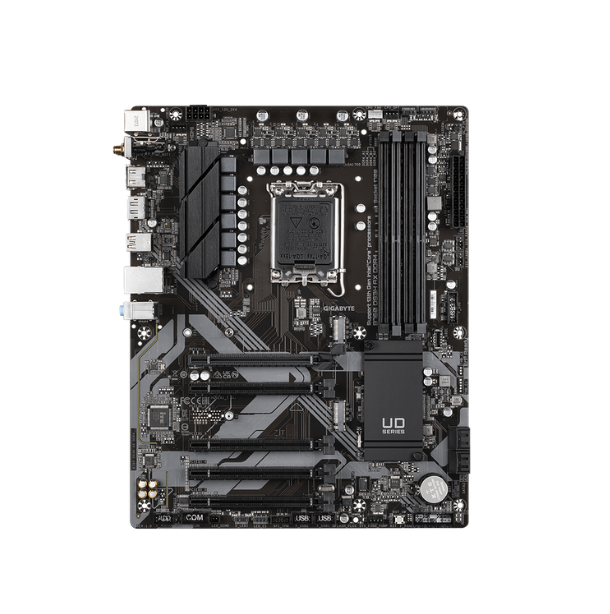

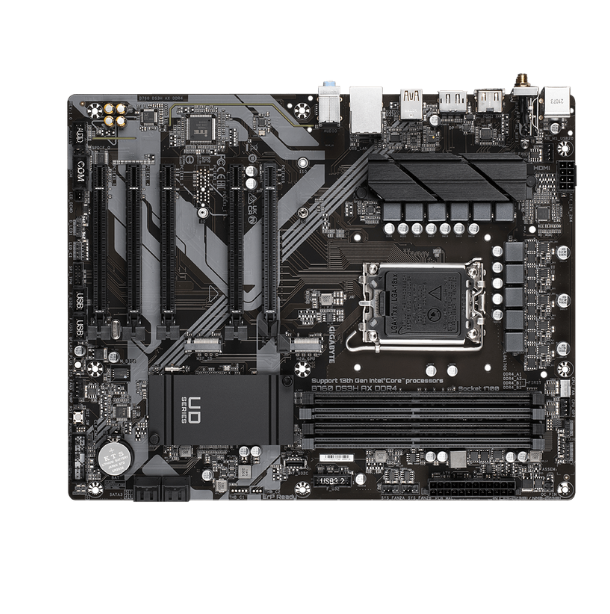

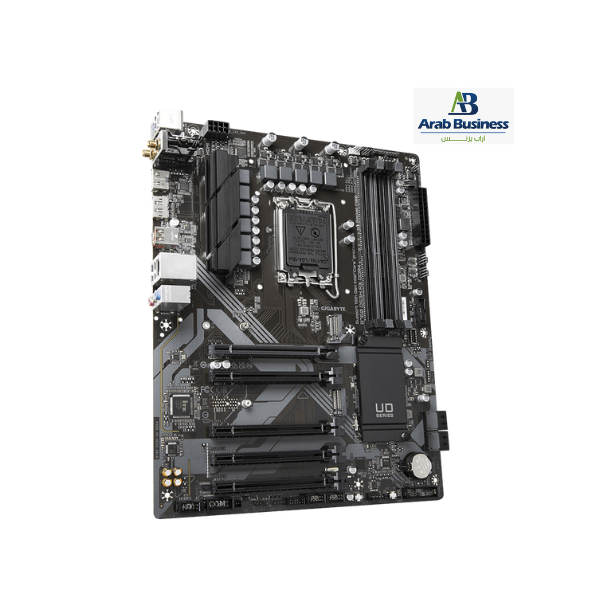

Motherboard Gigabyte B760 DS3H AX DDR4 INTEL
- Channel:
- 4*DIMMs XMP Memory Module Support
- Storage:
- 2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch:
- PCIe 4.0x16 Slot with Quick Release Design
- Networks:
- GbE LAN & Wi-Fi 6E 802.11ax
| CPU | Socket: LGA1700 Compatibility: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors L3 Cache: Varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | Speed: DDR4, supporting speeds from 2133 up to 5333 MT/s (O.C.) Slots: 4 x DDR DIMM sockets Max. Capacity: Up to 128 GB (32 GB single DIMM capacity) Architecture: Dual channel Module Support: ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, and XMP modules |
| Onboard Graphics | GPU: Integrated Graphics Processor-Intel® HD Graphics support Ports: 1 x HDMI 2.1 (max. 4096x2160@60 Hz), 1 x DisplayPort 1.2 (max. 4096x2304@60 Hz) |
| Audio | Codec: Realtek® Audio CODEC Channels: 2/4/5.1/7.1-channel Features: High Definition Audio, S/PDIF Out support |
| LAN | Controller: Realtek® GbE LAN chip Speed: 1 Gbps/100 Mbps |
| Wireless Communication | Module Options: AMD Wi-Fi 6E RZ608 (PCB rev. 1.0), Intel® Wi-Fi 6E AX210 (PCB rev. 1.1), Intel® Wi-Fi 6E AX211 (PCB rev. 1.2), Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3) Supported Bands: 2.4/5/6 GHz Standards: WIFI a, b, g, n, ac, ax Bluetooth: 5.2 or 5.3 depending on module |
| Expansion Slots | CPU-connected: 1 x PCI Express x16 (PCIe 4.0 x16, supports graphics card or NVMe SSD) Chipset-connected: 4 x PCI Express x16 (PCIe 3.0 x1) |
| Storage Interface | CPU-connected: 1 x M.2 connector (PCIe 4.0 x4/x2) Chipset-connected: 1 x M.2 connector (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s connectors RAID Support: 0, 1, 5, and 10 for SATA devices |
| USB Ports | Rear Panel: 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A (red), 4 x USB 2.0/1.1 Internal Headers: 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O Connectors | Power: 24-pin ATX, 8-pin ATX 12V Fans/Pumps: 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump Storage: 2 x M.2 Sockets, 4 x SATA 6Gb/s LED: 2 x addressable LED strip, 2 x RGB LED strip Others: Front panel header, front panel audio header, S/PDIF Out, USB headers, Trusted Platform Module (TPM) header, serial port header |

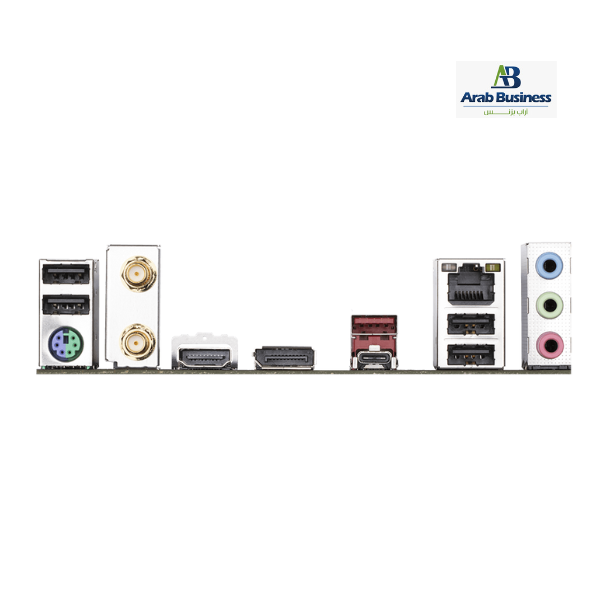

| Back Panel Connectors | Legacy: 1 x PS/2 keyboard/mouse Wireless: 2 x SMA antenna connectors USB: 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 Video: 1 x HDMI, 1 x DisplayPort Network: 1 x RJ-45 port Audio: 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Features: Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control |
| BIOS | Type: 1 x 128 Mbit flash, licensed AMI UEFI BIOS Standards: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Compatibility: Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
