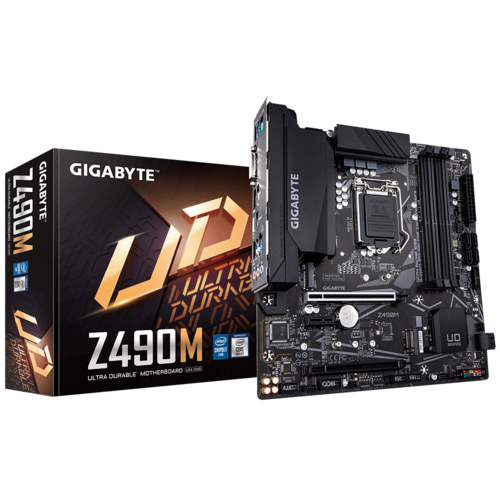

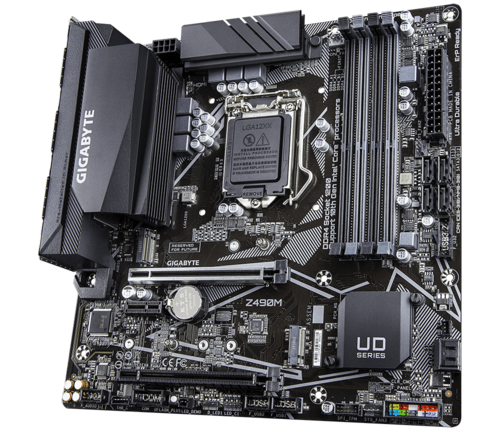

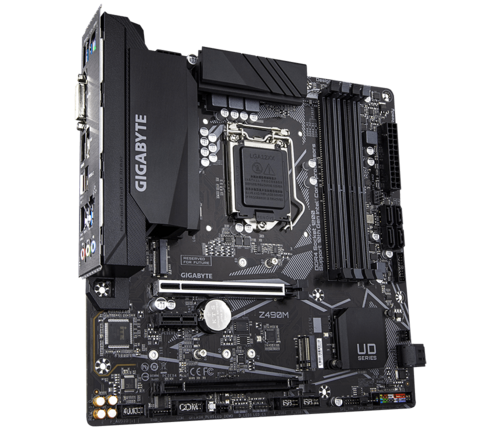

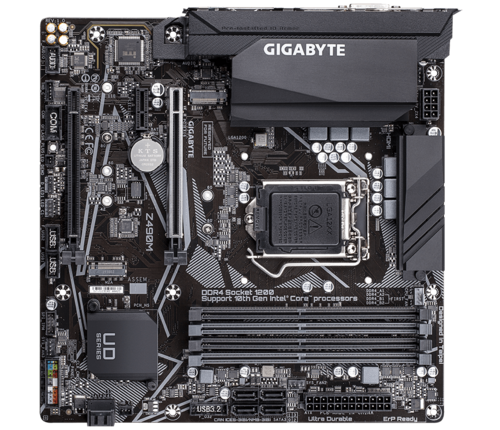

Z490M  Motherboard (rev. 1.0)

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra-Fast PCIe Gen3 X4 M.2 Connectors
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Intel® Optane™ Memory Ready
  • GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel® USB 3.2 Gen 2 Type-A and USB 3.2 Gen 1 Type-C™ Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design Support
  • Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
Z490M Motherboard Motherboard

Z490M (rev. 1.0) GIGABYTE  Motherboard

  • Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  • L3 cache varies with CPU

Chipset

Intel® Z490 Express Chipset

Memory

Intel® Core™ i9/i7 processors: DDR4 4400(O.C.)/ 4333(O.C.)/4266(O.C.) / 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666 / 2400 / 2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors:
  • Support for DDR4 2666/2400/2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  •  non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Extreme Memory Profile (XMP) memory modules


Onboard Graphics

  • Integrated Graphics Processor-Intel® HD Graphics support:
  •  DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  • The DVI-D port does not support D-Sub connection by adapter.
  • DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  • Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  • HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  •  Support for HDMI 1.4 version and HDCP 2.3.
  • Maximum shared memory of 512 MB
  • Support for up to 3 displays at the same time

Audio

  • Realtek® ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software

LAN

  • Intel® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots

  •  PCI Express x16 slot, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  •  PCI Express x16 slot, running at x4 (PCIEX4)

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface

Chipset:
  • M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Intel® Optane™ Memory Ready
  • M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

USB

Chipset:
  • 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
  • USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  •  8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip header
  • RGB LED strip header
  • 6 x SATA 6Gb/s connectors
  • M.2 Socket 3 connector
  • 1 x front panel header
  •  front panel audio header
  •  USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  •  Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • serial port header
  •  Clear CMOS jumper
  • 1 x Q-Flash Plus button

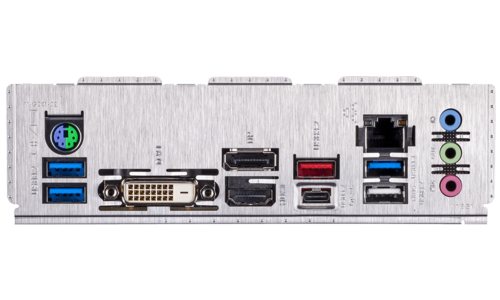

Back Panel Connectors

  •  PS/2 keyboard/mouse port
  •  DVI-D port
  •  DisplayPort
  •  HDMI port
  •  USB Type-C™ port, with USB 3.2 Gen 1 support
  • 4 x USB 3.2 Gen 1 ports
  •  USB 3.2 Gen 2 Type-A port (red)
  • RJ-45 port
  • 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  •  Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  • Support for APP Center
motherboard specifications:
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  •  Q-Flash Plus
  • Support for Xpress Install

Bundled Software

  • Norton® Internet Security (OEM version)
  • cFosSpeed

Operating System

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
